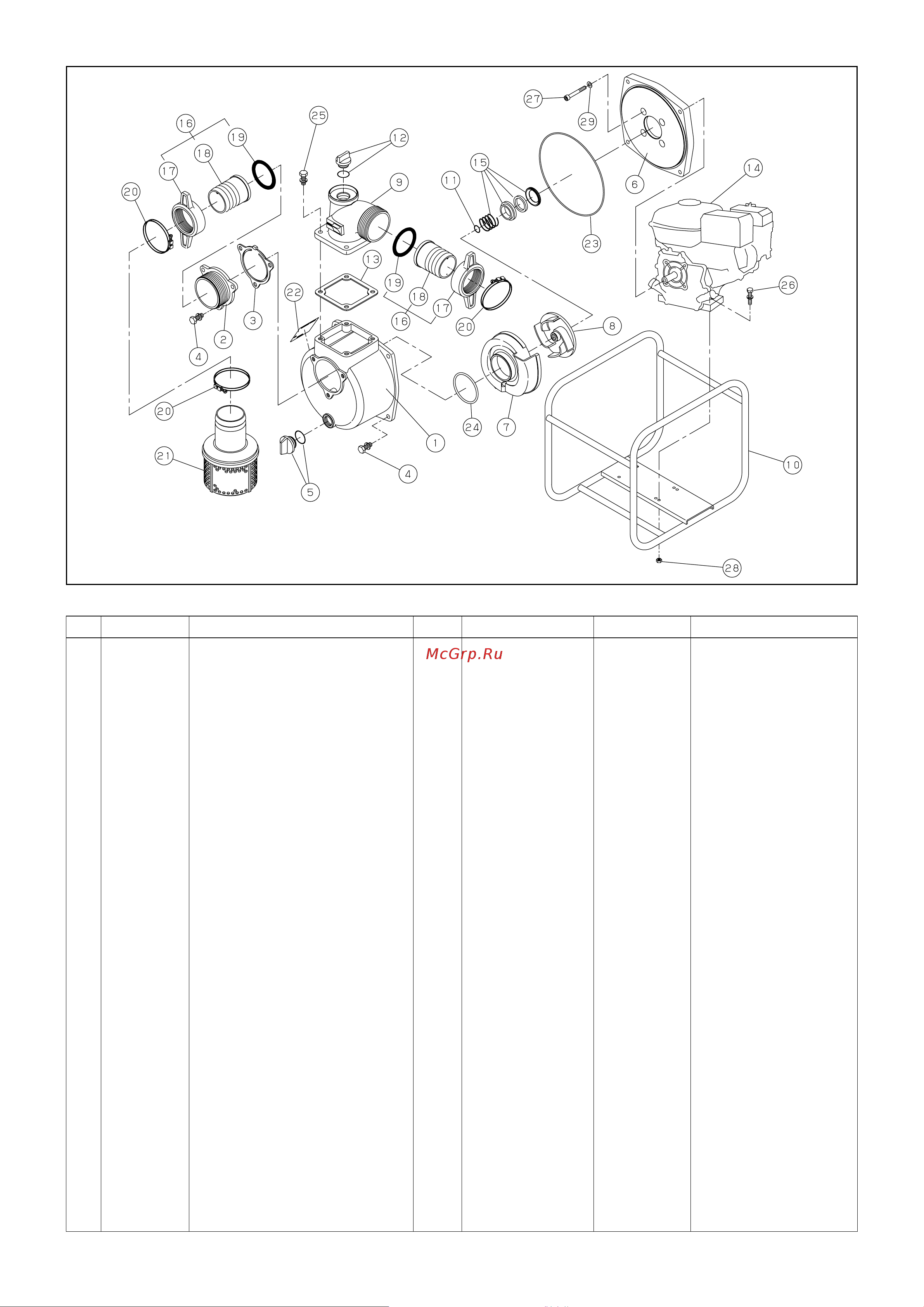

№ PARTS CODE PARTS　NAME QTY MATERIAL SIZE REMARKS
1 011279503 PUMP CASING 1 ADC 5,800
2 011279701 SUCTION FLANGE 1 ADC 1,100
3 011279901 CHECK VALVE 1 NBR 730
4 743119061 HEXAGON BOLT 7 SWRM M10X25 110
5 011807802 20A PLUG SET 1 150
6 011279601 FLANGE BRACKET 1 ADC 5,000
7 011317603 VOLUTE CASING 1 FC 3,700
8 011053202 IMPELLER 1 FC 2,000
9 011057003 DELIVERY FLANGE 1 ADC 3,500
10 011745102 BASE SET 1 5,500
11 011049102 IMPELLER ADJUSTING WASHER 3 BSP 110
12 011807901 25A PLUG SET 1 260
13 011058402 DELIVERY FLANGE PACKING 1 CR 150
14 011693601 ROBIN ENGINE 1 -
15 011066402 MECHANICAL SEAL 1 φ 20 1,100
16 011702802 COUPLING SET 2 ABS 1,000
17 011437502 COUPLING 2 ABS 470
18 011030105 HOSE NIPPLE 2 ABS 460
19 011437801 COUPLING PACKING 2 NBR 110
20 940019090 HOSE BAND 3 φ 90 170
21 011819501 STRAINER SET 1 PP 1,300
22 011691301 NAME PLATE 1 110
23 011501501 O-RING 1 NBR 1517-46.5 180
24 011398901 O-RING 1 NBR P74 110
25 743119063 HEXAGON BOLT 4 SWRM M10X30 110
26 743119053 HEXAGON BOLT 4 SWRM M8X40 110
27 734532076 HEXAGON SOCKET BOLT 4 SCM M8X60 110
28 827419008 HEXAGON NUT 4 SWRM M8 110
29 854255008 SEAL WASHER 4 φ 8 110
011691401 PACKING CASE 1 1,660
◆ Bare engine can not be supplied
DWG No.066852804 MODEL:SE-80X FORM:SE-80X-BDN-0
