EKCBX/H008BCV3
Unit for air to water heat pump system
4P348534-1 – 2013.04
Operation manual
10
Programming

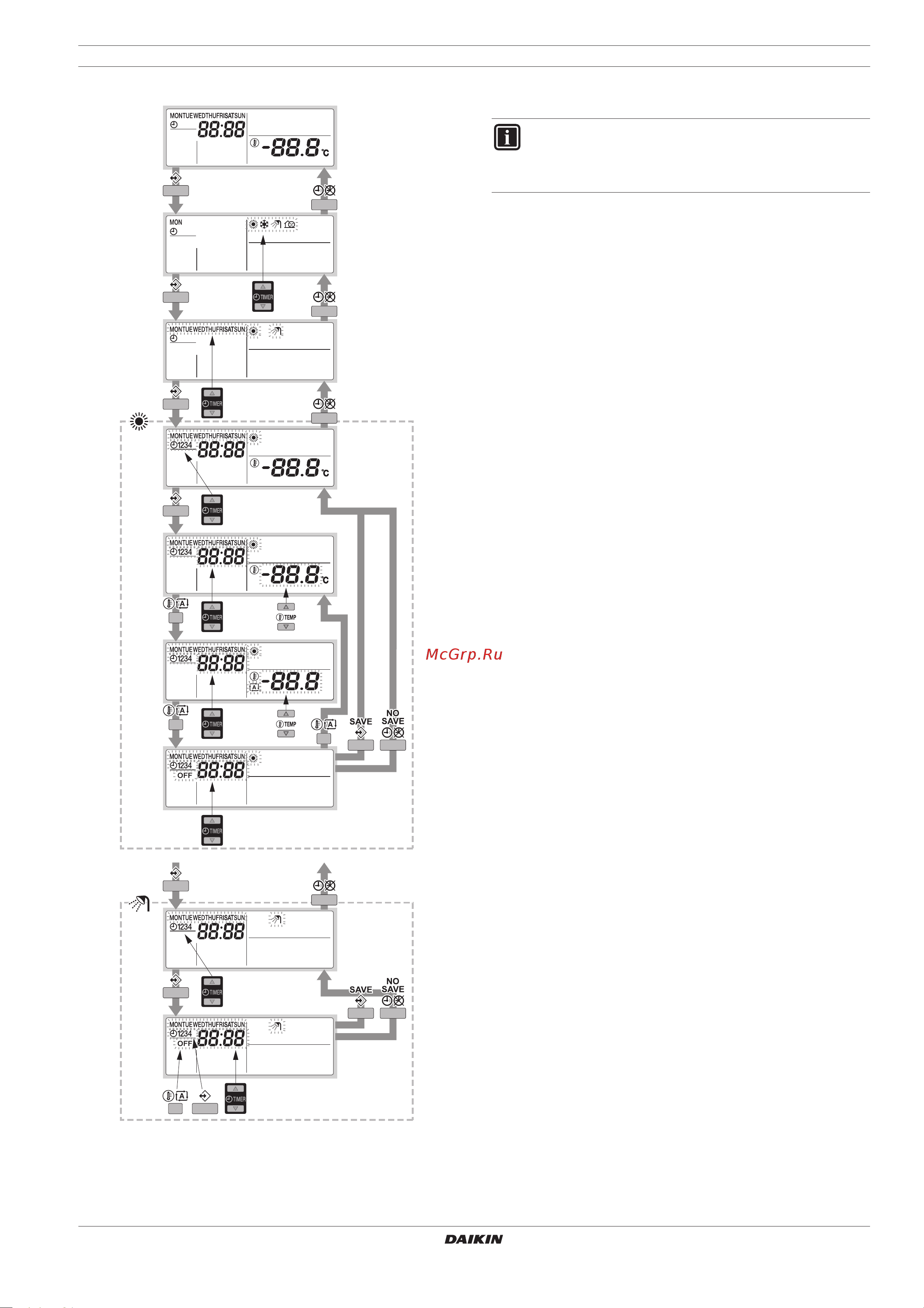

Programming space heating or space cooling Programming space heating or space cooling is carried out as
follows:
1 Press the < button.
The actual mode is blinking.
2 Use the pi and pj buttons to select the mode you want
to program (space heating h or domestic water heating w)
3 Press the < button to confirm the selected mode.
The actual day is blinking.
4 Select the day you would like to consult or to program by means
of the pi and pj buttons.
The selected day is blinking.
5 Press the < button to confirm the selected day.
The first programmed action of the selected day appears.
6 Use the pi and pj buttons to consult the other
programmed actions of that day.
This is called the readout mode. Empty program actions (e.g. 3
and 4) are not displayed.
7 Press the < button for 5 seconds to enter the programming
mode.
8 Use the < button to select the action number you would like to
program or to modify.
9 Use the ba button to select:
■ For space heating:
- x: switch heating and the controller off.
- 9: set the temperature by means of the bi and
bj buttons.
- a: to select automatic temperature calculation.
■ For domestic water heating: use the ba button to enable or
disable the x action.
10 Use the pi and pj buttons to set the correct action time.
11 Repeat steps 8 to 10 to program the other actions of the
selected day.
When all actions have been programmed, make sure that the
display shows the highest action number you would like to save.
12 Press the < button for 5 seconds to store the programmed
actions.
If the < button is pressed when action number 3 is displayed,
actions 1, 2 and 3 are stored but 4 is deleted.
You automatically return to step 6.
By pressing the pr button several times, you return to previous
steps in this procedure and finally return to normal operation.
5 sec
5 sec
5 sec
5 sec
INFORMATION
Returning to previous steps in the programming procedure
without saving modified settings is done by pressing the
pr button.
