REAR SUSPENSION ASSEMBLY
RSU-5
C
D
F
G
H
I
J
K
L
M
A
B
RSU
REAR SUSPENSION ASSEMBLY PFP:55020
Components
BES0002Y
On-Vehicle Inspection and Service
BES0002Z
Check axle and suspension parts for excessive play, wear, and damage.
● Move rear wheels (RH/LH) to check for unusual free play.
● Retighten all nuts and bolts to the specified torque.
● Check shock absorber for oil leakage and damage.
MEIB9027E

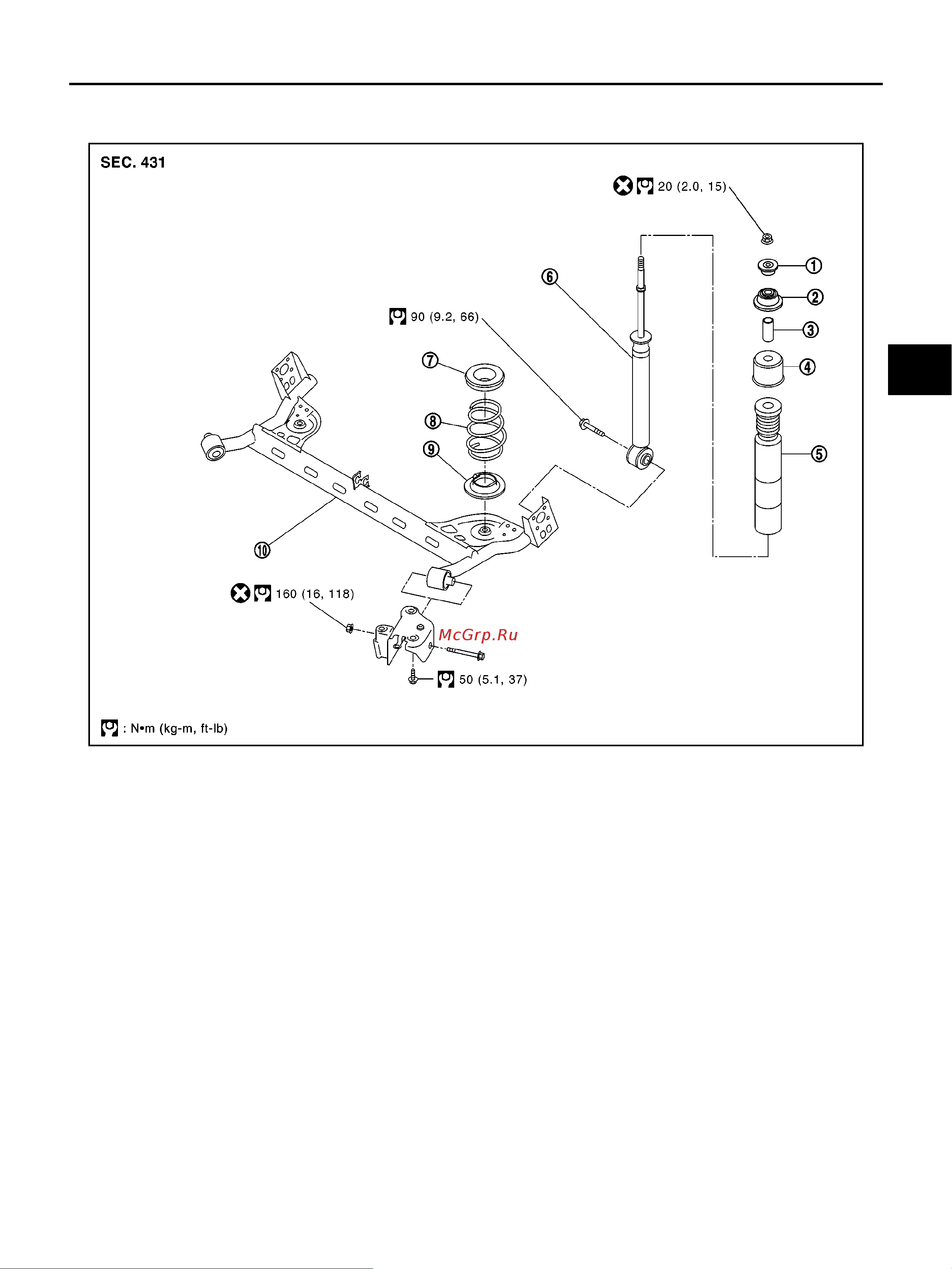

1. Bushing 2. Bushing 3. Distance tube
4. Bound bumper cover 5. Bound bumper 6. Shock absorber
7. Rear spring rubber seat 8. Coil spring 9. Rear spring rubber seat
10. Rear suspension beam 11. Rear suspension arm bracket
