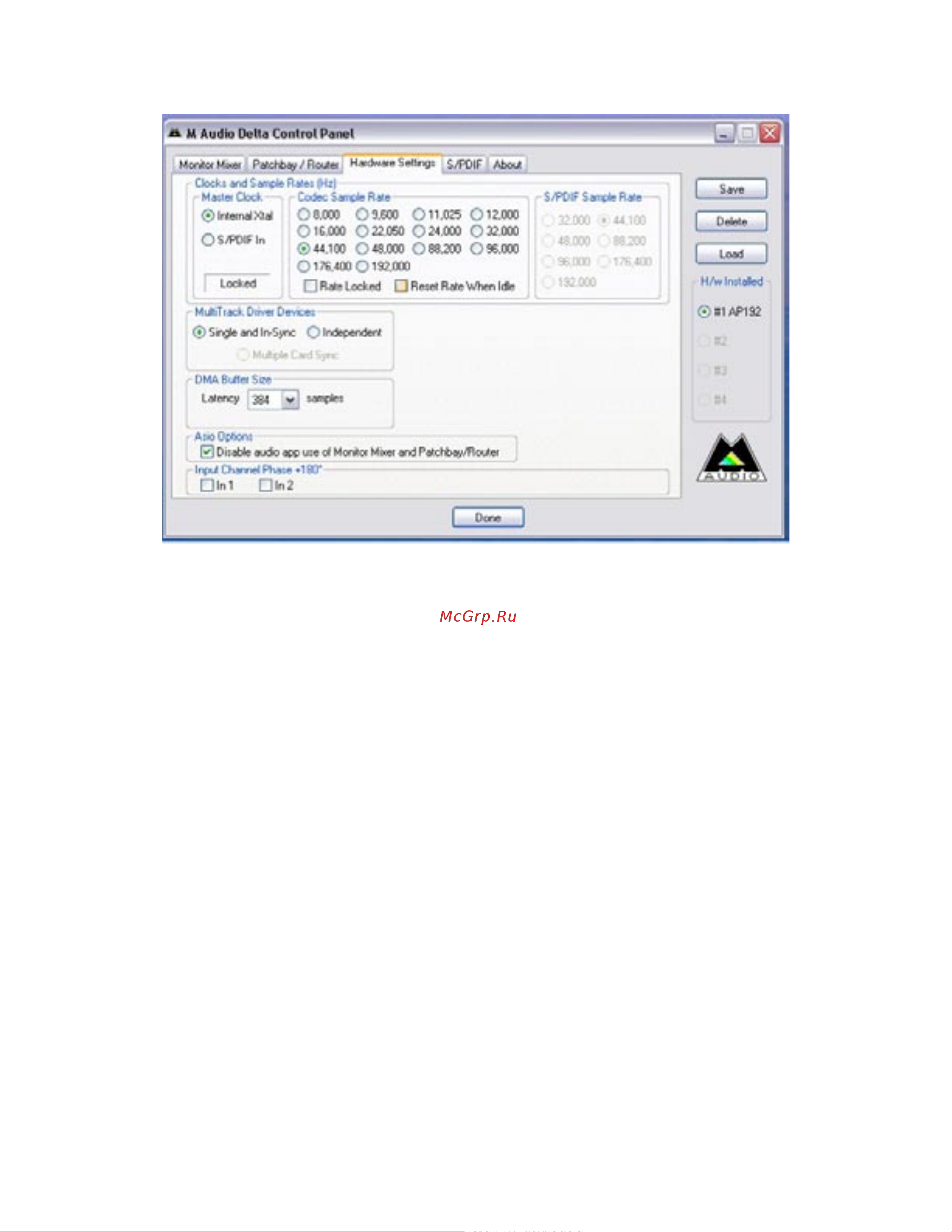

Hardware Settings Page

The Hardware Settings page provides access to master clock settings, sample rate settings, buffer settings and more.

Master Clock

This section selects the source of the master clock. Internal (default setting) selects the Audiophile 192’s internal clock, while S/PDIF In selects the

clock received through the S/PDIF input stream.

If Internal is selected, the status display will always show Locked. If S/PDIF is selected, the display will only show Locked when a valid S/PDIF signal

is detected at the input. It will display Unlocked if there is no valid S/PDIF input, or if the input signal is incorrect. When syncing to an external clock,

that external clock’s sample rate must be selected manually on this page to allow proper synchronization.

recording.

S/PDIF Sample Rate

When synced to external clock via S/PDIF, you must set the sample rate manually on this page to match that of your external clock source.

MultiTrack Driver Devices

As with all M-Audio Delta series audio devices, the Audiophile 192 is capable of synchronizing with multiple Delta cards when running DAW

software that supports simultaneous multiple channels.

Selecting “Single (In-Sync)” forces all audio channels to begin recording or playback at the same time.

Selecting “Independent” will allow all channels to record or play back independently. This may be desirable if more than one application needs to

address the Audiophile 192 simultaneously.

The third option, “Multiple Card Sync” is available only when more than one Delta device is installed. This selection will force all channels across
