English 5
6-2 Protection against contamination
when installing pipes
Protect the piping to prevent moisture, dirt, dust, etc. from
entering the piping.
Note
Exercise special caution to prevent dirt or dust when passing pip-
ing through holes in walls and when passing pipe edges to the
exterior.
6-3 Pipe connection
• Be sure to perform nitrogen permutation or nitrogen blow
when brazing. (Refer to figure 10)
Brazing without performing nitrogen permutation or nitrogen
blow into the piping will create large quantities of oxidized film
on the inside of the pipes, adversely affecting valves and com-
pressors in the refrigerating system and preventing normal
operation.
(Refer to figure 10)
1. Refrigerant pipe
2. Location to be brazed
3. Nitrogen
4. Taping
5. Handy valve
6. Regulator
• The pressure regulator for the nitrogen released when doing
the brazing should be set to 0.02 MPa (about 0.2kg/
cm
2
:
Enough to feel a slight breeze on your cheek).
Note
Do not use anti-oxidants when brazing the pipe joints.
Residue can clog pipes and break equipment.
6-4 Connecting the refrigerant piping
1.
Derection to bring out the pipes
The local interunit piping can be connected either forward or to
the sides (taken out through the bottom) as shown in the figure 11.
(When passing out through the bottom, use the knock hole in the
bottom frame.)
(Refer to figure 11)
1. Left-side connection
2. Front connection
3. Right-side connection
Precautions when knocking out knock holes
• Open knock hole in the base frame by drilling the 4 concave
around it with a 6mm bit. (Refer to figure 12)
(Refer to figure 12)
1. Knock hole
2. Drill
3. Concave section
• Be sure to avoid damaging the casing
• After knocking out the holes, we recommend you remove any
burrs and paint them using the repair paint to prevent rusting.
• When passing electrical wiring through the knock holes, protect
the wiring with a conduit or bushings, making sure not to damage
the wiring.
2.
Removing Pinch Piping
• When connecting refrigerant piping to an outdoor unit, remove
the pinch piping. (Refer to figure 13)
• Pinch piping should be removed using the procedure in the fig-
ure 13.
(Refer to figure 13)
1. Shutoff valve (liquid side · gas side)
2. Service port
3. Pinch piping
4. Procedure 1:
Confirm the shutoff valve is closed.
5. Procedure 2:
Connect a charge hose to the service port of the liquid
side and gas side shutoff valves and remove the gas
from the pinch piping.
6. Procedure 3:
After removing the gas from the pinch piping, dissolve
the brazing using a burner and remove the pinch piping.
Caution
After removing the gass, remove the pinch piping.
Any gas remaining inside may blow off the pinch piping when you dis-
solve the brazing, causing damage.
3.
Connecting refrigerant piping to outdoor units
<In case of single system: 8-12HP type>
(Refer to figure 14)
1. If connected to the front
2. When connected at lateral side (bottom)
3. Remove the shutoff valve cover to connect.
4. Remove the knock hole on the bottom frame and route
the piping under the bottom frame.
5. Gas side shutoff valve
6. Liquid side shutoff valve
7. Refrigerant charge port
8. Brazing
9. Liquid side accessory pipe (1)
10. Gas side accessory pipe (1)
11. Gas side accessory pipe (2)
12. Liquid side accessory pipe (2)
13. Knockout hole
14. Punch the knock hole.
15. Gas side piping (field supply)
16. Liquid side piping (field supply)

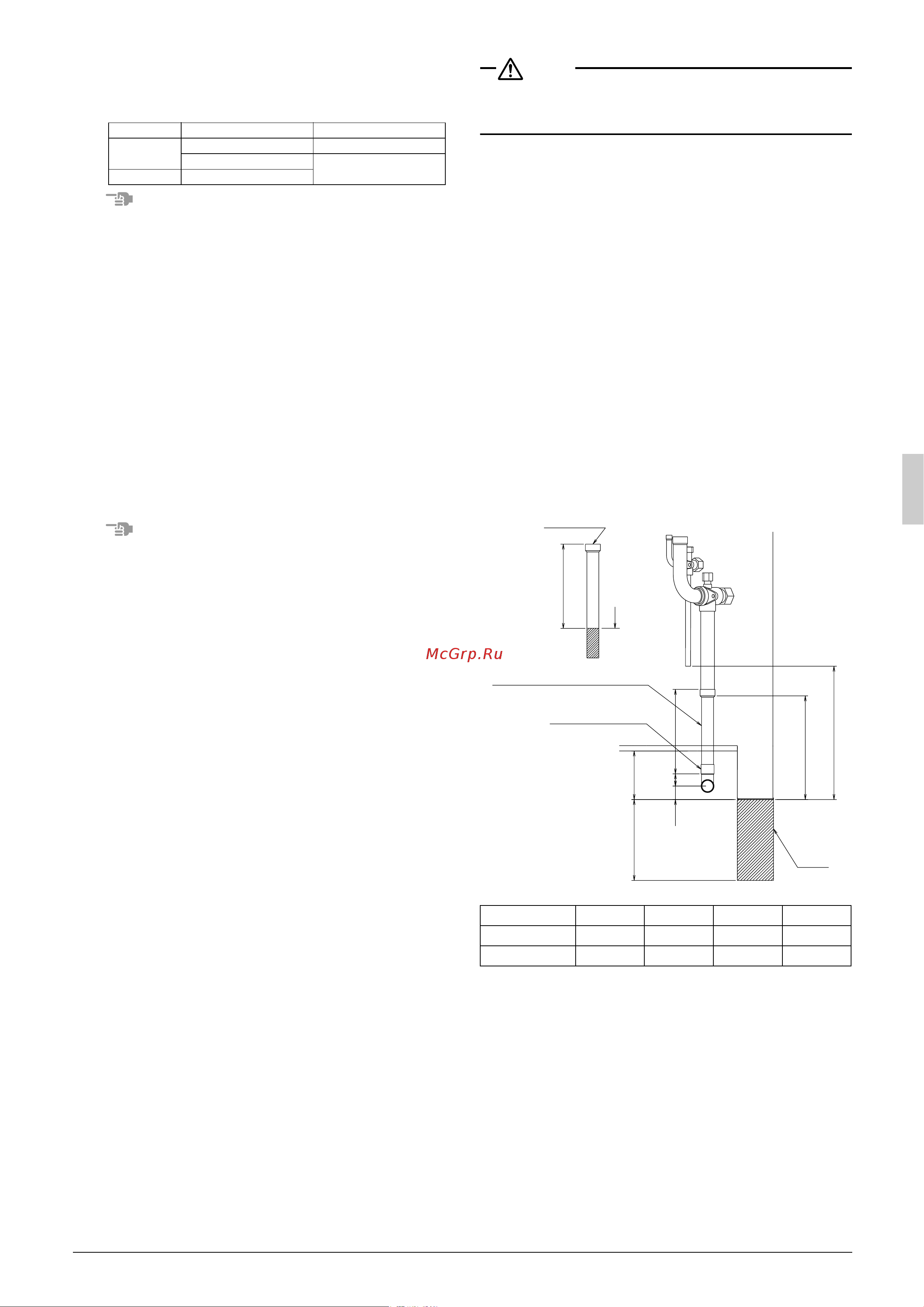

Processing the Gas side accessory pipe (2)
Only in case of connecting at lateral side, cut the Gas side acces-
sory pipe (2) referring the figure below.
(mm)
<In case of multi system: RXYQ16-36P(E)>
(Refer to figure 15)
1. If connected to the front
2. When connected at lateral side (bottom)
3. Remove the shutoff valve cover to connect.
4. Remove the knock hole on the bottom frame and route
the piping under the bottom frame.
5. Gas side shutoff valve
6. Liquid side shutoff valve
7. Refrigerant charge port
8. Brazing
9. Liquid side accessory pipe (1)
10. Gas side accessory pipe (1)
11. Gas side accessory pipe (2)
12. Liquid side accessory pipe (2)
13. Knockout hole
14. Punch the knock hole.
Place Installation period Protection method
Outdoor
More than a month Pinch the pipe
Less than a month
Pinch or tape the pipe
Indoor Regardless of the period
Model A B C D
8HP type 156 17 188 247
10 · 12HP type 150 29 192 247
C
A
A
B25
90150
D
Cutting
location
Gas side
accessory
pipe (2)
Gas side accessory pipe (2)
Gas side piping
(field supply)
Base
01_EN_3P226891-7A.fm Page 5 Tuesday, June 3, 2008 2:35 PM
