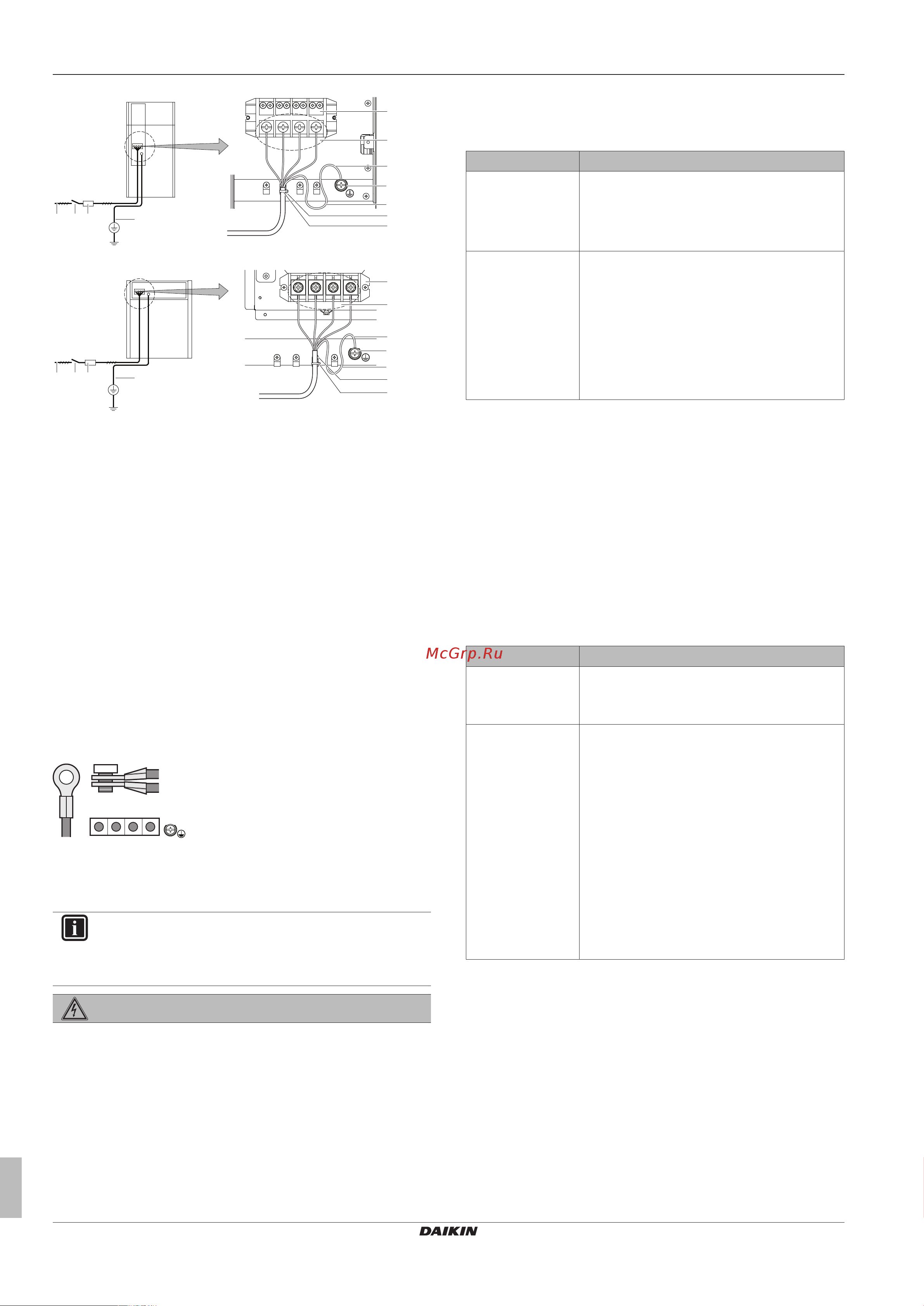

6 Configuration
Installation and operation manual
18
RXYTQ8~16T7YF
VRV IV system air conditioner
4P388987-1C – 2016.02
a
bc d
f
g
e
j
k
h
i
8 HP
a
bc d
f
g
e
j
k
h
i
10~16 HP
a Power supply (380~415 V - 3N~50Hz OR 400V -
3N~60Hz)
b Fuse
c Earth leakage protector
d Earth wire
e Power supply terminal block
f Connect each power wire: RED to L1, WHT to L2, BLK to
L3 and BLU to N
g Earth wire (GRN/YLW)
h Clamp the power supply to the plastic bracket using a field
supplied clamp to prevent external force being applied to
the terminal.
i Clamp (field supplied)
j Cup washer
k When connecting the earth wire, it is recommended to
perform curling.
Multiple outdoor units
To connect the power supply for multiple outdoor units to each other,
ring tongues have to be used. No bare cable can be used.
The ring washer which is standard provided should be removed in
that case.
Attaching both cables to the power supply terminal should be done
as indicated.
L1 L2 L2 N
6 Configuration
INFORMATION
It is important that all information in this chapter is read
sequentially by the installer and that the system is
configured as applicable.
DANGER: RISK OF ELECTROCUTION
6.1 Making field settings
6.1.1 About making field settings
To continue the configuration of the VRV IV heat pump system, it is
required to give some input to the PCB of the unit. This chapter will
describe how manual input is possible by operating the push
buttons/DIP switches on the PCB and reading the feedback from the
7‑segment displays.
Making settings is done via the master outdoor unit.
Next to making field settings it is also possible to confirm the current
operation parameters of the unit.
Push buttons and DIP switches
Item Description
Push buttons By operating the push buttons it is possible to:
▪ Perform special actions (testrun, etc).
▪ Perform field settings (demand operation,
low noise, etc).
DIP switches By operating the DIP switches it is possible to:
▪ DS1 (1): COOL/HEAT selector (refer to the
manual of the cool/heat selector switch).
OFF=not installed=factory setting
▪ DS1 (2~4): NOT USED. DO NOT CHANGE
THE FACTORY SETTING.
▪ DS2 (1~4): NOT USED. DO NOT CHANGE
THE FACTORY SETTING.
See also:
▪ "6.1.2Field setting components"on page18
▪ "6.1.3To access the field setting components"on page19
PC configurator
For VRV IV heat pump system it is alternatively possible to make
several commissioning field settings through a personal computer
interface (for this, option EKPCCAB is required). The installer can
prepare the configuration (off-site) on PC and afterwards upload the
configuration to the system.
See also: "6.1.9 To connect the PC configurator to the outdoor
unit"on page21.
Mode 1 and 2
Mode Description
Mode 1
(monitoring
settings)
Mode1 can be used to monitor the current
situation of the outdoor unit. Some field setting
contents can be monitored as well.
Mode 2
(field settings)
Mode2 is used to change the field settings of
the system. Consulting the current field setting
value and changing the current field setting
value is possible.
In general, normal operation can be resumed
without special intervention after changing field
settings.
Some field settings are used for special
operation (e.g., 1 time operation, recovery/
vacuuming setting, manual adding refrigerant
setting, etc.). In such a case, it is required to
abort the special operation before normal
operation can restart. It will be indicated in
below explanations.
See also:
▪ "6.1.4To access mode 1 or 2"on page19
▪ "6.1.5To use mode 1"on page19
▪ "6.1.6To use mode 2"on page19
▪ "6.1.7Mode 1: Monitoring settings"on page20
▪ "6.1.8Mode 2: Field settings"on page20
6.1.2 Field setting components
Location of the 7‑segment displays, buttons and DIP switches:
