Daikin RXYTQ46TYF [27/36] Technical data
![Daikin RXYTQ46TYF [27/36] Technical data](/views2/1791241/page27/bg1b.png)
9 Technical data
Installation and operation manual
27
RXYTQ8~16T7YF
VRV IV system air conditioner
4P388987-1C – 2016.02

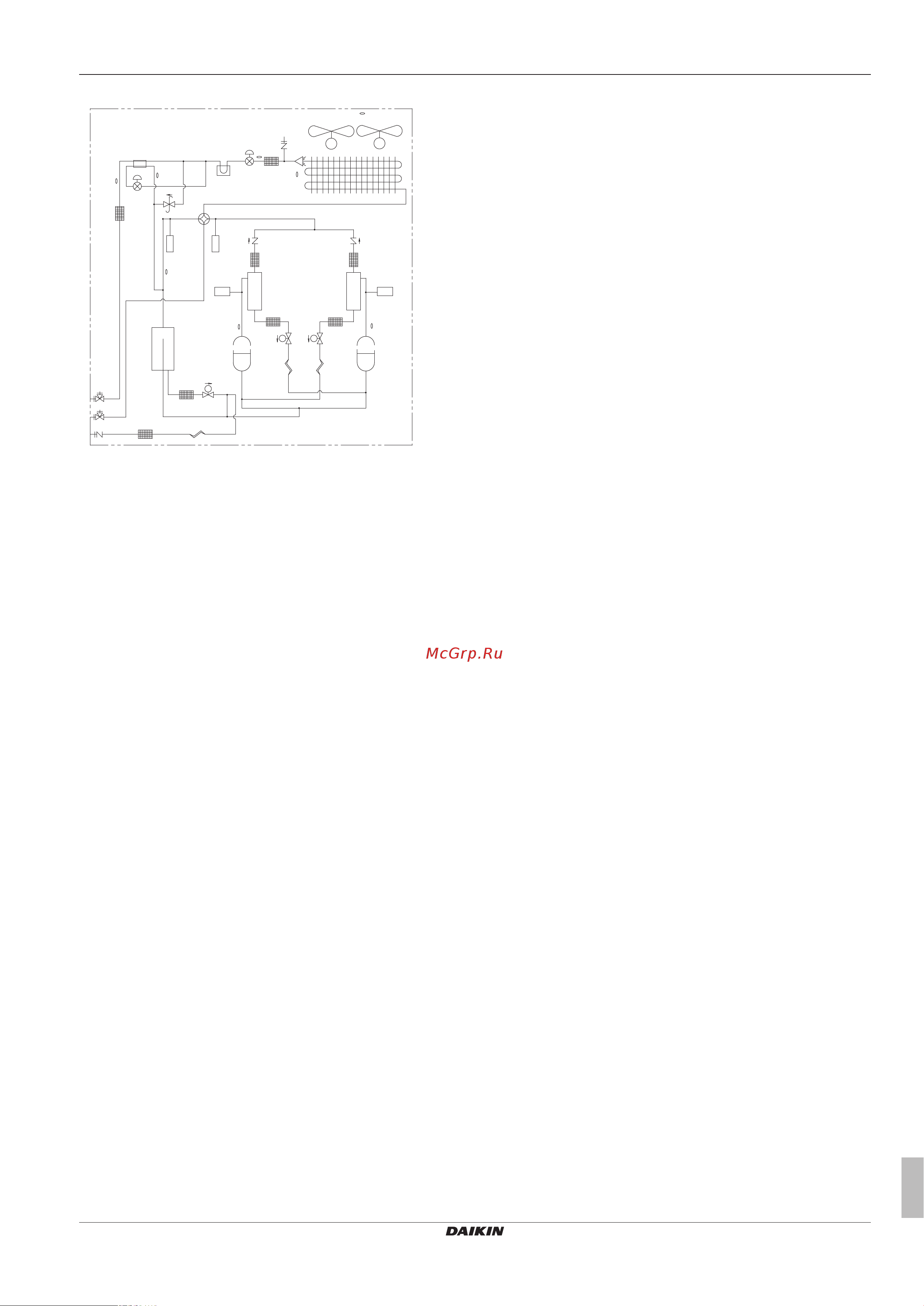

Piping diagram: RXYTQ14+16
a
b
j j
kk
f
l
i
g
m
p
o
h
q
c
e
d d
e
M
sv
sv
INV INV
sv
M1C
M2C
M1F
M
M2F
(S1NPH)
(S1NPL)
(S1PH) (S2PH)
HPS
R6T
R5T
R7T
R1T
R4T
R21T
R22T
R3T
HPS
n
a Compressor (M1C)
b Compressor (M2C)
c Heat exchanger
d Fan
e Fan motor (M1F, M2F)
f Accumulator
g Expansion valve, main (Y1E)
h Expansion valve, subcool heat exchanger (Y2E)
i Subcool heat exchanger
j Oil separator
k Solenoid valve, oil1 (Y3S)
l Solenoid valve, oil accumulator (Y2S)
m 4‑way valve, main (Y1S)
n Service port, refrigerant charge
o Stop valve (liquid)
p Stop valve (gas)
q Service port
