30

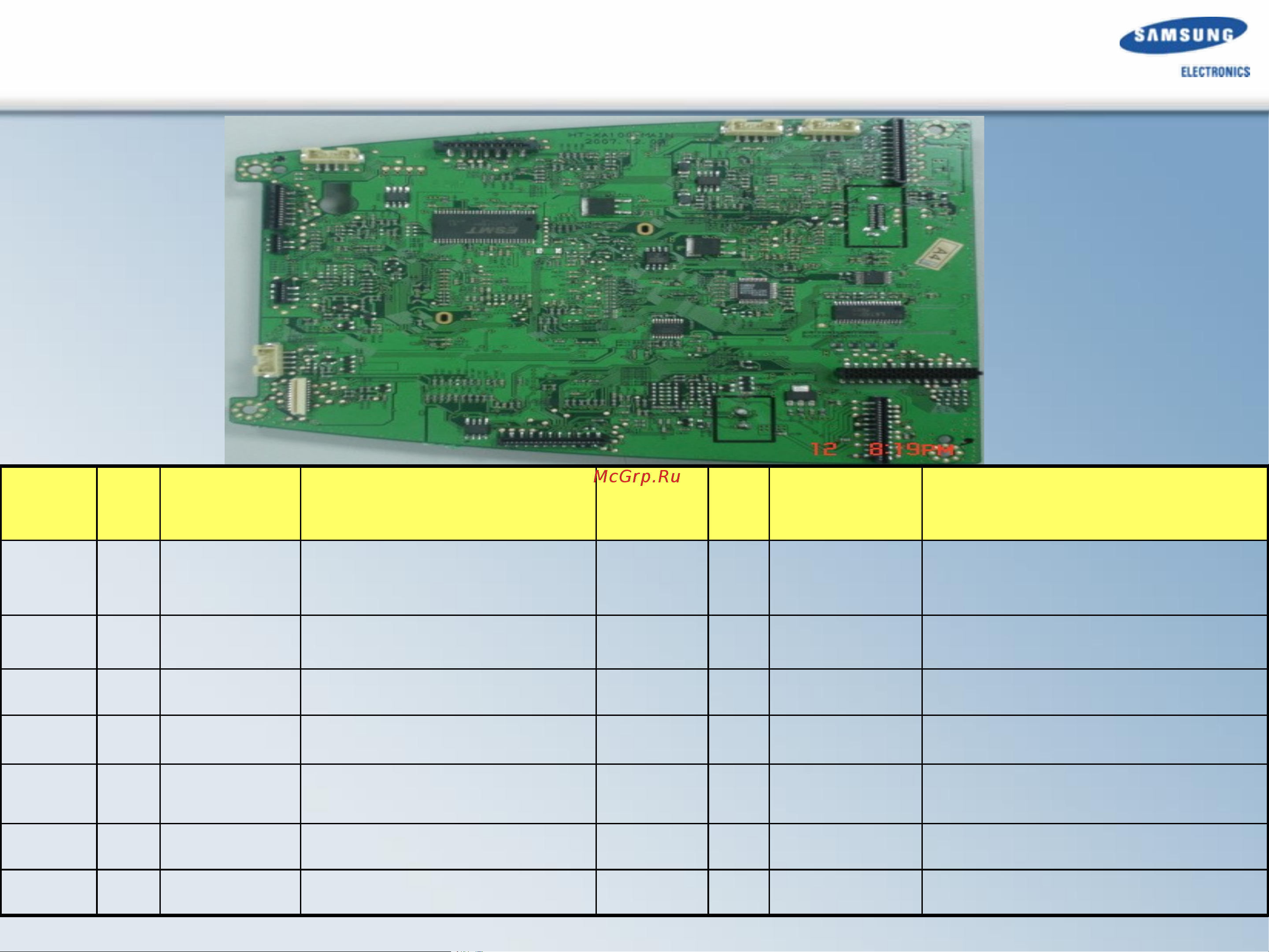

6.MAIN PCB Connectors
6.MAIN PCB Connectors
REF.
NAME
PI N
CON.
ASS' Y
FUNCTI ON
REF.
NAME
PI N CON. ASS' Y FUNCTI ON
ACN10 23P AMP PWM AUDI O DATA LI NE RCN1 24P MECHA
DVD MECHA CONTROL / DATA
LI NE
CN3 20P VFD Fr ont Dat a Di s pl ay CN7 4P POWER KEY POWER ON/ OFF CONTROL
RCN3 5P MECHA DVD MECHA CONTROL LI NE CN9 4P OPEN KEY DECK OPEN CONTROL
RCN2 6P MECHA DVD MECHA CONTROL LI NE CN1 13P TUNER TUNER Dat a / Power Li ne
CN11 15P
Anal og
Jack
Headphone/ AUX1 I NPUT WCON11 16P
Wi r el es s
PCB
Opt i cal / Wi r el es s
Connect i on
CN5 4P USB USB Dat a / Power Li ne CN8 4P FUNCTI ON FUNC, PLAY… CONTROL
AV1 28P WI RELESS AUX2, WI RELESS DATA LI NE CN2 23P AMP POWER SUPPLY LI NE
CN11
RCN3
CN9
CN1
CN5
AV1
ACN10
CN8
CN2
RCN1
RCN2
CN3
CN7
