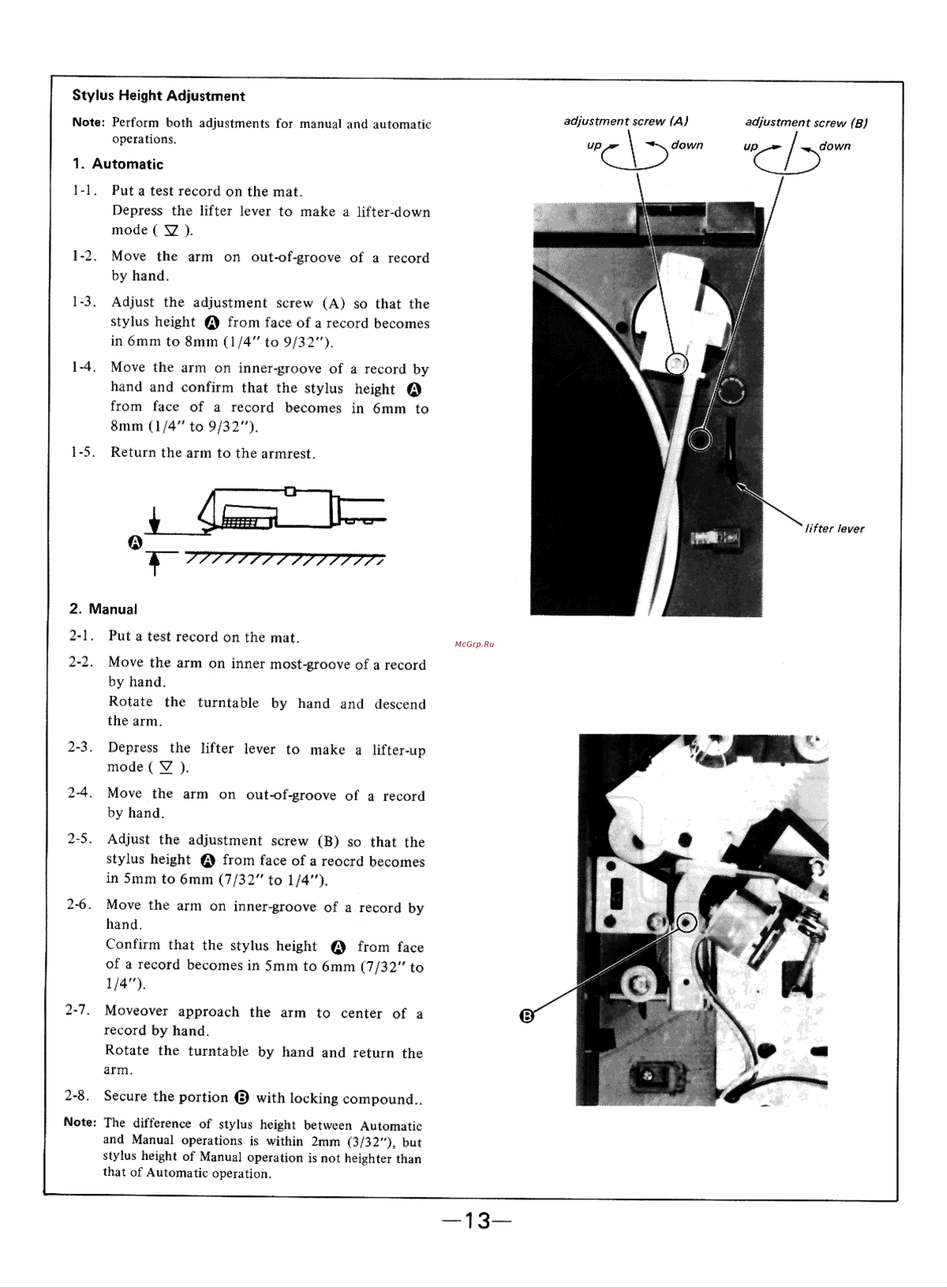

Stylus Height Adjustment adjustment screw A Note Perform both adjustments for manual and automatic operations 1 Automatic 1 1 Put a test record on the mat Depress the lifter lever to make a lifter down mode XZ 1 2 Move the arm on out of groove of a record by hand 1 3 Adjust the adjustment screw A so that the stylus height from face of a record becomes in 6mm to 8mm 1 4 to 9 32 1 4 Move the arm on inner groove of a record by hand and confirm that the stylus height from face of a record becomes in 6mm to 8mm 1 4 to 9 32 1 5 Return the arm to the armrest 2 Manual 2 1 Put a test record on the mat 2 2 Move the arm on inner most groove of a record by hand Rotate the turntable by hand and descend the arm 2 3 Depress the lifter lever to make a lifter up mode V 2 4 Move the arm on Adjust the adjustment stylus height out of groove of screw so a record by hand 2 5 from B face of that a reocrd of a the becomes in 5mm to 6mm 7 32 to 1 4 2 6 Move the arm on inner groove record by hand Confirm of a that the record stylus becomes in height 5mm to from 6mm 7 32 face to 1 4 2 7 Moveover approach the arm to center of a record by hand Rotate the turntable by hand and return the arm 2 8 Secure the portion with locking compound Note The and stylus difference Manual height of stylus operations of Manual is height between within operation is Automatic 2mm 3 32 but not heighter than that of Automatic operation 13 adjustment screw B
