Sony PS-LX330 [3/27] Operating voltage
Содержание
- T dim yl aichi 1
- Title_1200 pdf 1
- E model 2
- Service manual 2
- Stereo turntable system 2
- Us model canadian model aep model uk model e model 2
- Caution when installing belt glossy side should be faced outside 3
- Glossy side 3
- Operating voltage 3
- Servicing note 3
- Turntable assembly replacing the stylus 3
- Block diagram 4
- Fig a using an ac voltmeter to check ac leakage 4
- Rvi02 45 pm sfeed adj 4
- Safety check out us model 4
- Section 1 4
- 2 installation 7
- Caution 7
- Caution for installation 7
- Push rod lifter lever 7
- Drive gear 10
- 1 mechanical adjustments 12
- Cartridge level adjustment 12
- Section 3 adjustments 12
- Stylus force adjustment 12
- Adjustment screw a adjustment screw b 14
- Automatic 14
- Manual 14
- Stylus height adjustment 14
- Stylus drop point adjustment 15
- Semiconductor lead layouts 17
- Is _______ 18
- Section 4 diagrams 18
- _18 jpg 18
- ___________________________________________________________________________ coz üî 18
- 10 11 12 13 14 15 19
- 2 schematic diagram 19
- C critical for safety replace only with 19
- Connector board 19
- Control switch board 19
- Main board 19
- Note the components identified by shading and mark 19
- Part number specified 19
- Phono board 19
- Ps lx330 19
- Ps lx33o 19
- Size in board 19
- Size out board 19
- _20 gif 19
- Ic102 lm6414e 557 is an n mos 4 bit micro computer for control integrating rom ram alu i o port timer clock generator and etc into 1 chip 20
- Ic102 lm6414e 557 pin functions 20
- Section 5 exploded views 21
- Electrical parts list 25
- Section 6 25
- 951 631 11 27
- Audio group 27
- Sony corporation 27
Похожие устройства
- Sony PS-LX330 Инструкция по использованию
- Sony PS-LX330P Service Manual
- Sony PS-LX330P Инструкция по использованию
- Foodatlas SF-B300 Инструкция по эксплуатации
- Foodatlas SF-B300 Сертификат
- Sony RDR-HX510 Инструкция по использованию
- Sony RDR-HX710 Инструкция по использованию
- Sony RDR-HX910 Инструкция по использованию
- Technics SL-PG390 Service Manual
- LG DR4912 Инструкция по использованию
- Panasonic SL-CT720EE-S Инструкция по использованию
- Ambertek MD80 Инструкция по использованию
- Foodatlas SF-B500 Инструкция по эксплуатации
- Foodatlas SF-B500 Сертификат
- Foodatlas SF-B600 Инструкция по эксплуатации
- Foodatlas SF-B600 Сертификат
- Foodatlas SF-B700 Инструкция по эксплуатации
- Foodatlas SF-B700 Сертификат
- Foodatlas SF-B800 Инструкция по эксплуатации
- Foodatlas SF-B800 Сертификат

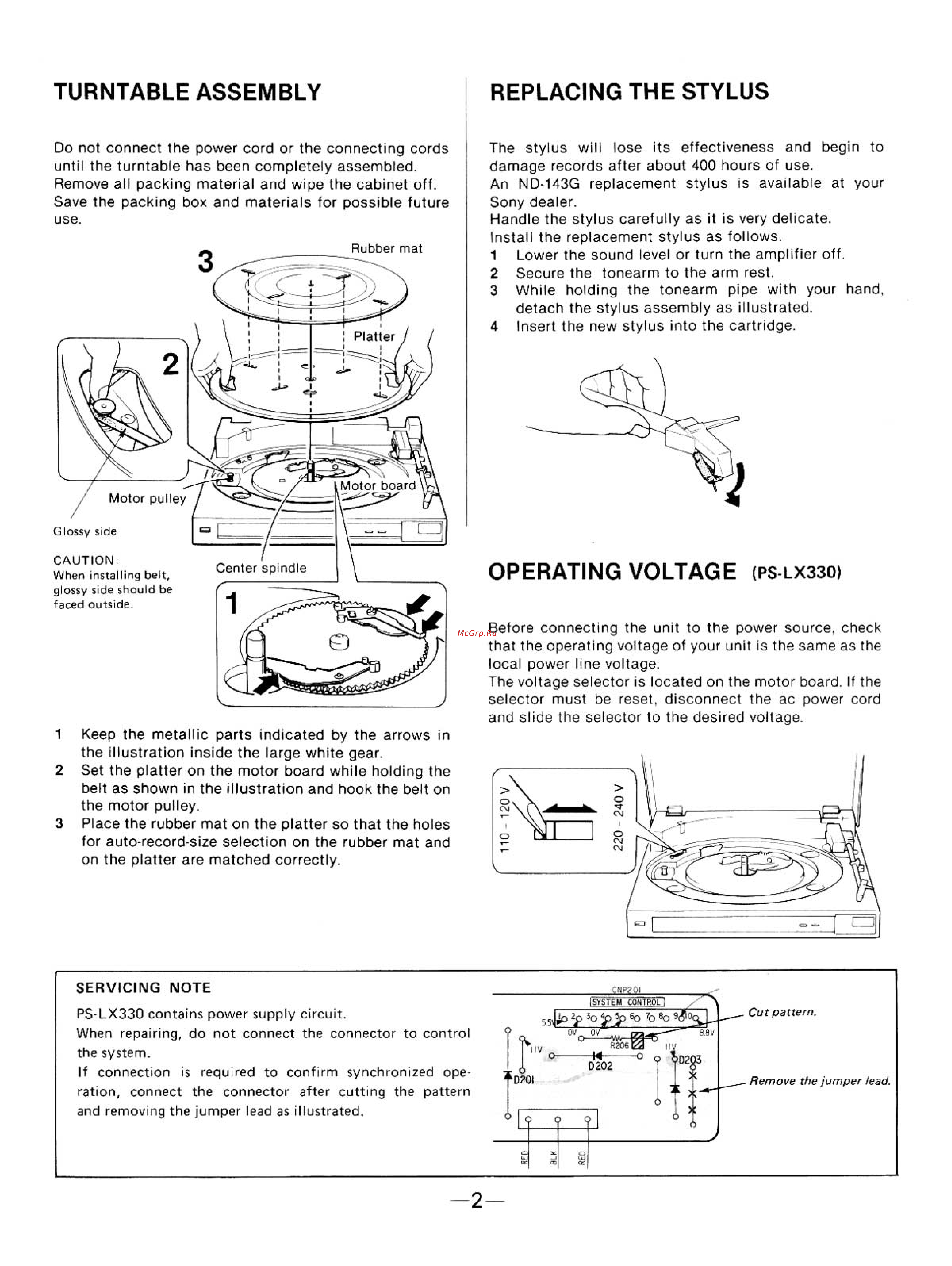

TURNTABLE ASSEMBLY REPLACING THE STYLUS Do not connect the power cord or the connecting cords The stylus will lose its effectiveness and begin to until the turntable has been completely assembled damage records after about 400 hours of use Remove all packing material and wipe the cabinet off An ND 143G replacement stylus is available at your Save the packing box and materials for possible future Sony dealer use Handle the stylus carefully as it is very delicate Install the replacement stylus as follows 1 Lower the sound level or turn the amplifier off 2 Secure the tonearm to the arm rest 3 While holding the tonearm pipe with your hand detach the stylus assembly as illustrated 4 Insert the new stylus into the cartridge Platter Motor board Motor pulley Glossy side CAUTION When installing belt glossy side should be faced outside OPERATING VOLTAGE PS LX330 Center spindle Before connecting the unit to the power source check that the operating voltage of your unit is the same as the local power line voltage The voltage selector is located on the motor board If the selector must be reset disconnect the ac power cord and slide the selector to the desired voltage 1 Keep the metallic parts indicated by the arrows in while holding the the illustration inside the large white gear 2 Set the belt as platter on shown in the the motor illustration board and hook the belt on the motor pulley 3 Place for the rubber mat auto record size on the selection platter on so the that rubber the holes mat and on the platter are matched correctly SERVICING NOTE PS LX330 contains power supply circuit When repairing do not connect the connector to control the system If ration connection connect is required the connector to confirm after synchronized cutting the ope pattern and removing the jumper lead as illustrated 2
