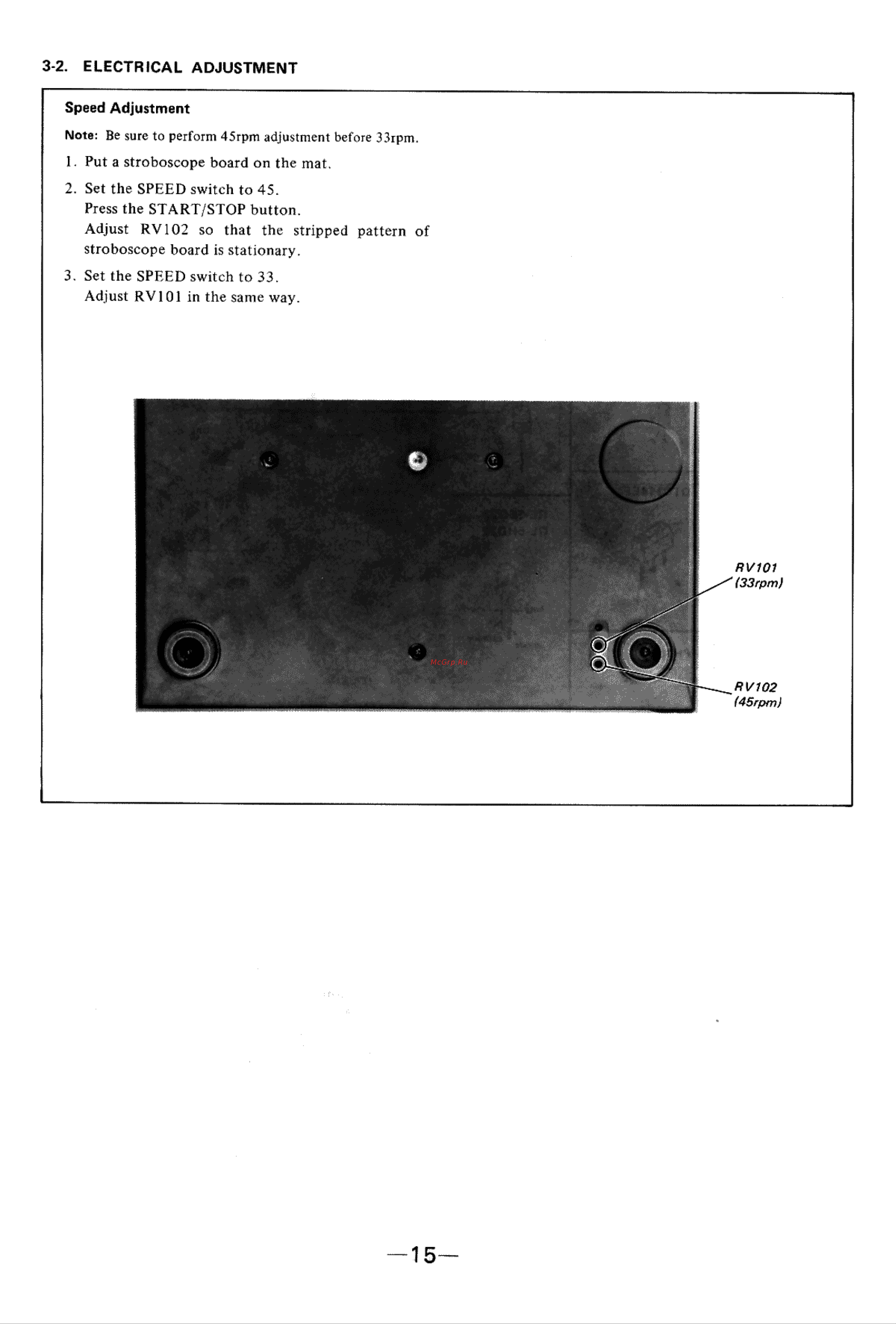

3 2 ELECTRICAL ADJUSTMENT Speed Adjustment Note Be sure to perform 45rpm adjustment before 33ipm 1 Put a stroboscope board on the mat 2 Set the SPEED switch to 45 Press the START STOP button Adjust RV102 so that the stripped pattern of stroboscope board is stationary 3 Set the SPEED switch to 33 Adjust RV101 in the same way RV101 33 rpm RV102 45rpm 15
