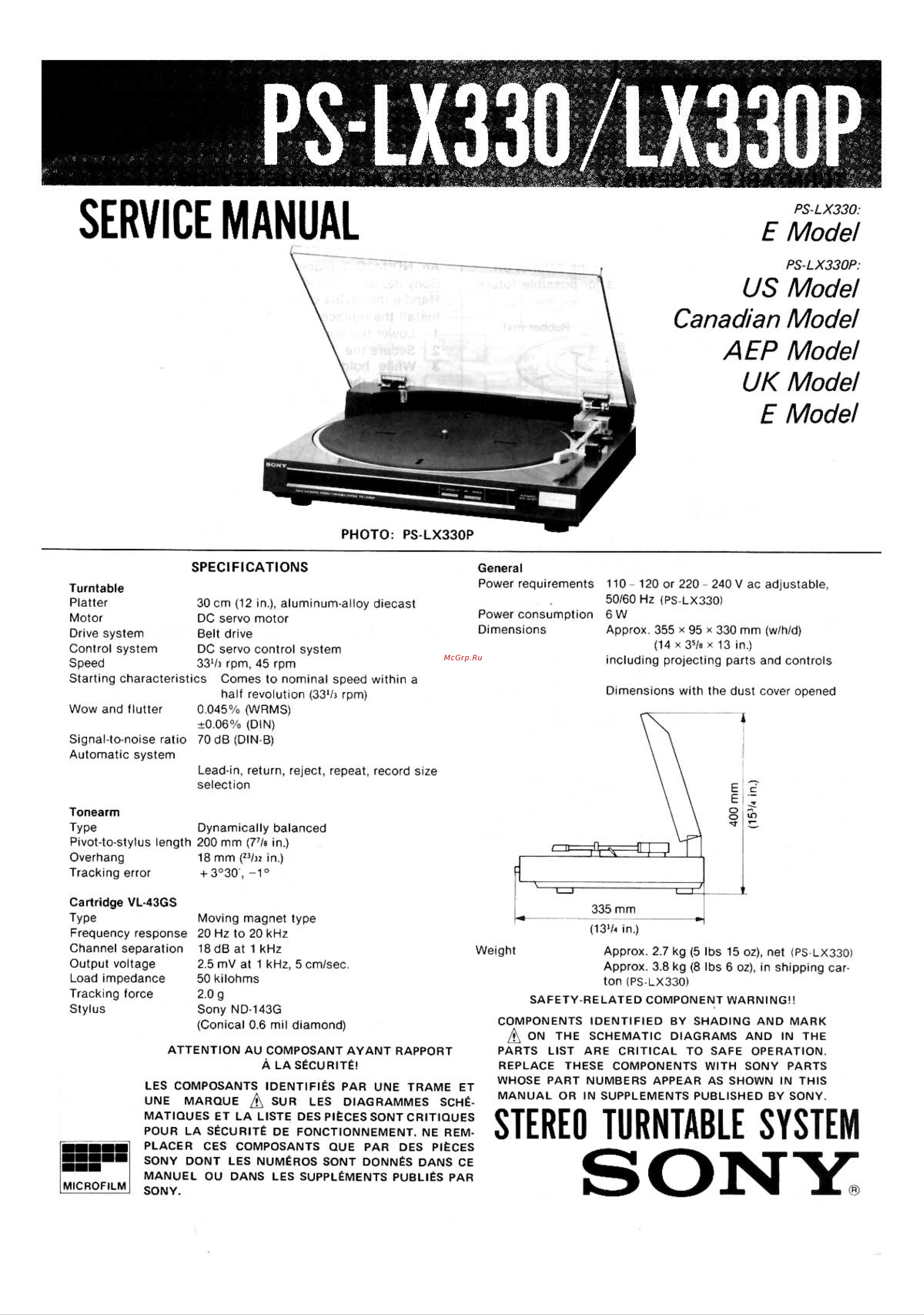

SERVICE MANUAL PS LX330 E Model PS LX330P US Model Canadian Model AEP Model UK Model E Model SPECIFICATIONS General Power requirements Turntable Platter 30 cm 12 in aluminum alloy diecast Motor DC servo motor Drive system Belt drive Control system DC servo control system 331 J rpm 45 rpm Speed 110 120 or 220 240 V ac adjustable 50 60 Hz PS LX330 Power consumption 6W Dimensions Approx 355 x 95 x 330 mm w h d 14 x 35 a x 13 in including projecting parts and controls Starting characteristics Comes to nominal speed within a Dimensions with the dust cover opened half revolution 33 J rpm Wow and flutter 0 045 WRMS 0 06 DIN Signal to noise ratio 70 dB DIN B Automatic system Lead in return reject repeat record size selection Tonearm Dynamically balanced Type Pivot to stylus length 200 mm 77 a in Overhang 18 mm f3 32 in Tracking error 3 30 1 Cartridge VL 43GS Type Moving magnet type Frequency response 20 Hz to 20 kHz Channel separation 18 dB at 1 kHz Output voltage 2 5 mV at 1 kHz 5 cm sec Approx Load impedance 50 kilohms ton PS LX330 Tracking force 2 0 g Stylus Sony ND 143G Conical 0 6 mil diamond ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ LES COMPOSANTS IDENTIFIÉS PAR UNE TRAME ET UNE MARQUE A SUR LES DIAGRAMMES SCHÉ MATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT NE REM PLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY MICROFILM Weight Approx 2 7 kg 5 lbs 15 oz net PS LX330 3 8 kg 8 lbs 6 oz in shipping car SAFETY RELATED COMPONENT WARNING COMPONENTS IDENTIFIED BY SHADING AND MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY STEREO TURNTABLE SYSTEM SONY
