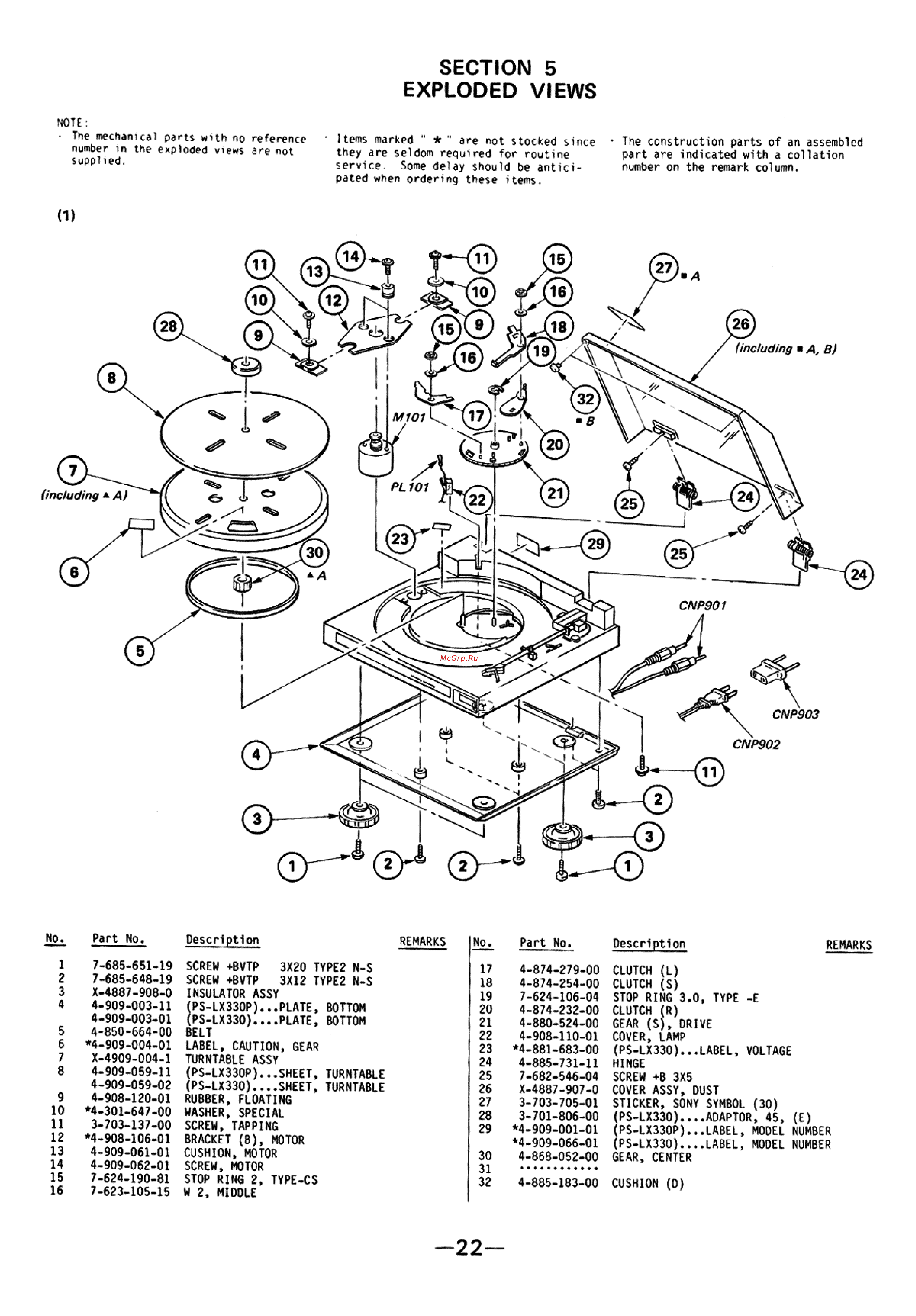

SECTION 5 EXPLODED VIEWS NOTE The mechanical parts with no reference number in the exploded views are not supplied Items marked are not stocked since they are seldom required for routine service Some delay should be antici pated when ordering these items The construction parts of an assembled part are indicated with a collation number on the remark column 1 No Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Description 7 685 651 19 SCREW BVTP 3X20 TYPE2 N S 7 685 648 19 SCREW BVTP 3X12 TYPE2 N S X 4887 908 0 INSULATOR ASSY 4 909 003 11 PS LX330P PLATE BOTTOM 4 909 003 01 PS LX330 PLATE BOTTOM 4 850 664 00 BELT 4 909 004 01 LABEL CAUTION GEAR X 4909 004 1 TURNTABLE ASSY 4 909 059 11 PS LX330P SHEET TURNTABLE 4 909 059 02 PS LX330 SHEET TURNTABLE 4 908 120 01 RUBBER FLOATING 4 301 647 00 WASHER SPECIAL 3 703 137 00 SCREW TAPPING 4 908 106 01 BRACKET B MOTOR 4 909 061 01 CUSHION MOTOR 4 909 062 01 SCREW MOTOR 7 624 190 81 STOP RING 2 TYPE CS 7 623 105 15 W 2 MIDDLE REMARKS No 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 22 Part No 4 874 279 00 4 874 254 00 7 624 106 04 4 874 232 00 4 880 524 00 4 908 110 01 4 881 683 00 4 885 731 11 7 682 546 04 X 4887 907 0 3 703 705 01 3 701 806 00 4 909 001 01 4 909 066 01 4 868 052 00 4 885 183 00 Description CLUTCH L CLUTCH S STOP RING 3 0 TYPE E CLUTCH R GEAR S DRIVE COVER LAMP PS LX330 LABEL VOLTAGE HINGE SCREW B 3X5 COVER ASSY DUST STICKER SONY SYMBOL 30 PS LX330 ADAPTOR 45 E PS LX330P LABEL MODEL NUMBER PS LX330 LABEL MODEL NUMBER GEAR CENTER CUSHION 0 REMARKS
