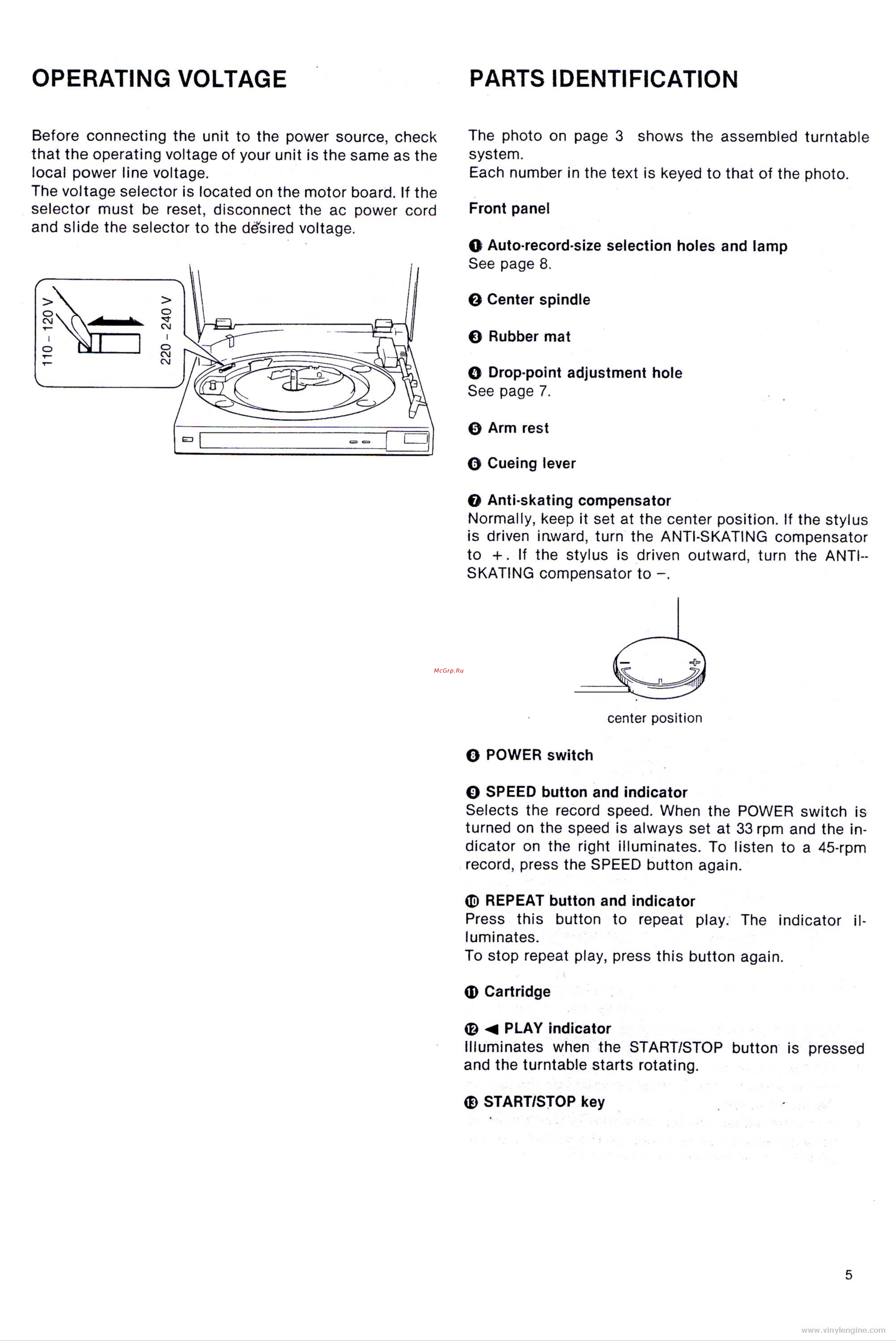

OPERATING VOLTAGE PARTS IDENTIFICATION Before connecting the unit to the power source check that the operating voltage of your unit is the same as the local power line voltage The voltage selector is located on the motor board If the selector must be reset disconnect the ac power cord and slide the selector to the desired voltage The photo on page 3 shows the assembled turntable system Each number in the text is keyed to that of the photo Front panel O Auto record size selection holes and lamp See page 8 Q Center spindle 0 Rubber mat 0 Drop point adjustment hole See page 7 0 Arm rest 0 Cueing lever 0 Anti skating compensator Normally keep it set at the center position If the stylus is driven inward turn the ANTI SKATING compensator to If the stylus is driven outward turn the ANTISKATING compensator to center position 0 POWER switch 0 SPEED button and indicator Selects the record speed When the POWER switch is turned on the speed is always set at 33 rpm and the in dicator on the right illuminates To listen to a 45 rpm record press the SPEED button again D REPEAT button and indicator Press this button to repeat play The indicator il luminates To stop repeat play press this button again D Cartridge PLAY indicator Illuminates when the START STOP button is pressed and the turntable starts rotating D START STOP key 5
