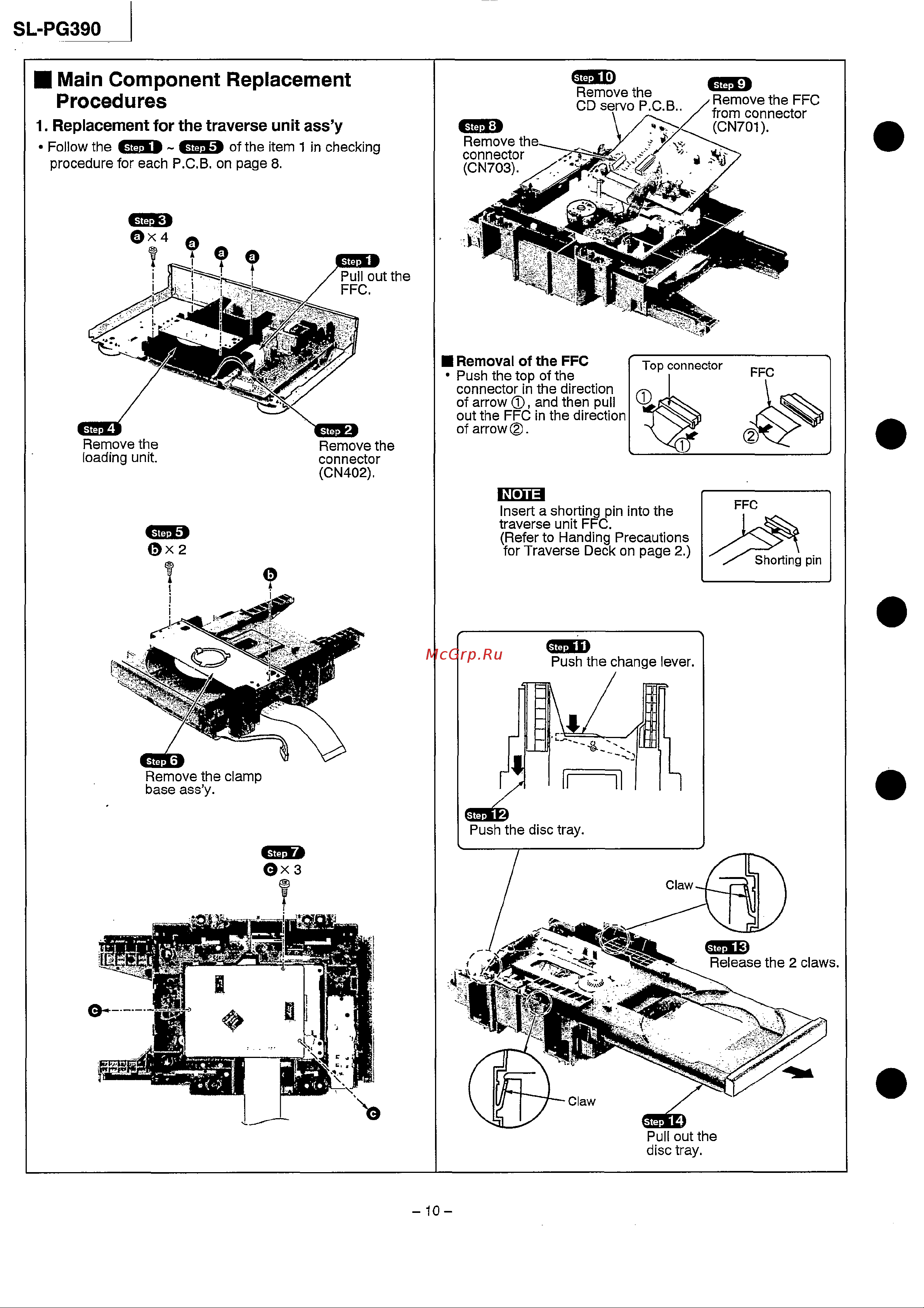

SL PG390 Main Component Replacement Procedures 1 Replacement for the traverse unit ass y Follow the Step 1 CWÜ of the Item 1 in checking procedure for each P C B on page 8 Step 3 Removal of the FFC Push the top of the connector in the direction of arrow and then pull out the FFC in the direction of arrow Remove the loading unit Remove the connector CN402 Insert a shorting pin into the traverse unit FFC Refer to Handing Precautions for Traverse Deck on page 2 x 2 Remove the clamp base ass y Push the disc tray Pull out the disc tray 10
