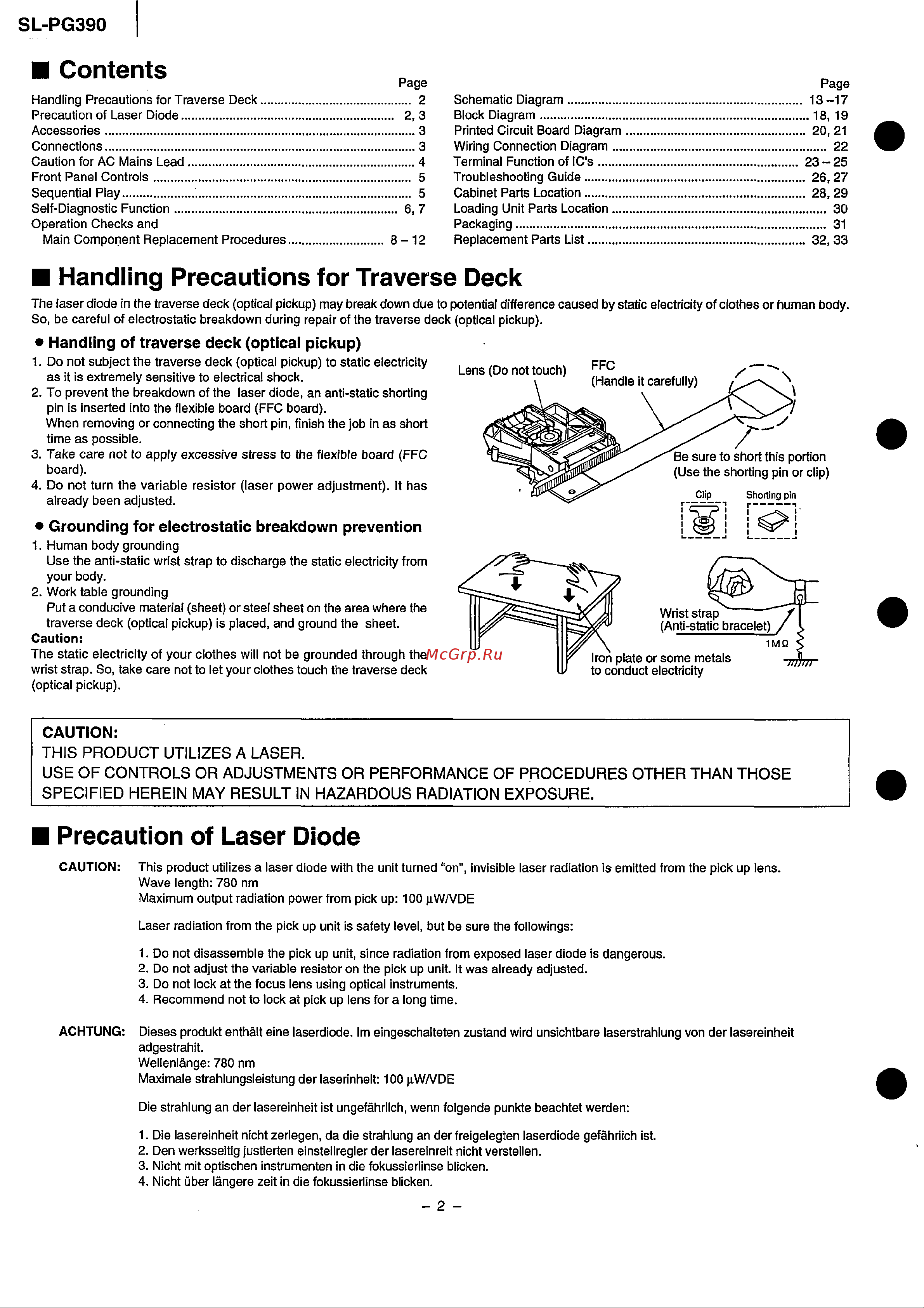

SL PG390 Contents Handling Precautions for Traverse Deck 2 Precaution of Laser Diode 2 3 Accessories 3 Connections 3 Caution for AC Mains Lead 4 Front Panel Controls 5 Sequential Play 5 Self Diagnostic Function 6 7 Operation Checks and Main Component Replacement Procedures 8 12 Page Schematic Diagram 13 17 Block Diagram 18 19 Printed Circuit Board Diagram 20 21 Wiring Connection Diagram 22 Terminal Function of IC s 23 25 Troubleshooting Guide 26 27 Cabinet Parts Location 28 29 Loading Unit Parts Location 30 Packaging 31 Replacement Parts List 32 33 Handling Precautions for Traverse Deck The laser diode in the traverse deck optical pickup may break down due to potential difference caused by static electricity of clothes or human body So be careful of electrostatic breakdown during repair of the traverse deck optical pickup Handling of traverse deck optical pickup 1 Do not subject the traverse deck optical pickup to static electricity as it is extremely sensitive to electrical shock 2 To prevent the breakdown of the laser diode an anti static shorting pin is inserted into the flexible board FFC board When removing or connecting the short pin finish the job in as short time as possible 3 Take care not to apply excessive stress to the flexible board FFC board 4 Do not turn the variable resistor laser power adjustment It has already been adjusted Grounding for electrostatic breakdown prevention 1 Human body grounding Use the anti static wrist strap to discharge the static electricity from your body 2 Work table grounding Put a conducive material sheet or steel sheet on the area where the traverse deck optical pickup is placed and ground the sheet Caution The static electricity of your clothes will not be grounded through the wrist strap So take care not to let your clothes touch the traverse deck optical pickup CAUTION THIS PRODUCT UTILIZES A LASER USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE Precaution of Laser Diode CAUTION This product utilizes a laser diode with the unit turned on invisible laser radiation is emitted from the pick up lens Wave length 780 nm Maximum output radiation power from pick up 100 pWA DE Laser radiation from the pick up unit is safety level but be sure the followings 1 Do not disassemble the pick up unit since radiation from exposed laser diode is dangerous 2 Do not adjust the variable resistor on the pick up unit It was already adjusted 3 Do not lock at the focus lens using optical instruments 4 Recommend not to lock at pick up lens for a long time ACHTUNG Dieses produkt enthält eine laserdiode Im eingeschalteten zustand wird unsichtbare laserstrahlung von der lasereinheit adgestrahit Wellenlänge 780 nm Maximale Strahlungsleistung der laserinhelt 100 pWA DE Die Strahlung an der lasereinheit ist ungefährlich wenn folgende punkte beachtet werden 1 Die lasereinheit nicht zerlegen da die Strahlung an der freigelegten laserdiode gefähriich ist 2 Den werksseitig justierten einstellregler der lasereinreit nicht verstellen 3 Nicht mit optischen instrumenten in die fokussierlinse blicken 4 Nicht über längere zeit in die fokussierlinse blicken 2
