SATA Hard Drives Configurations (Intel ICH6R) - 11 -

Ác

Åé

¤¤

¤å

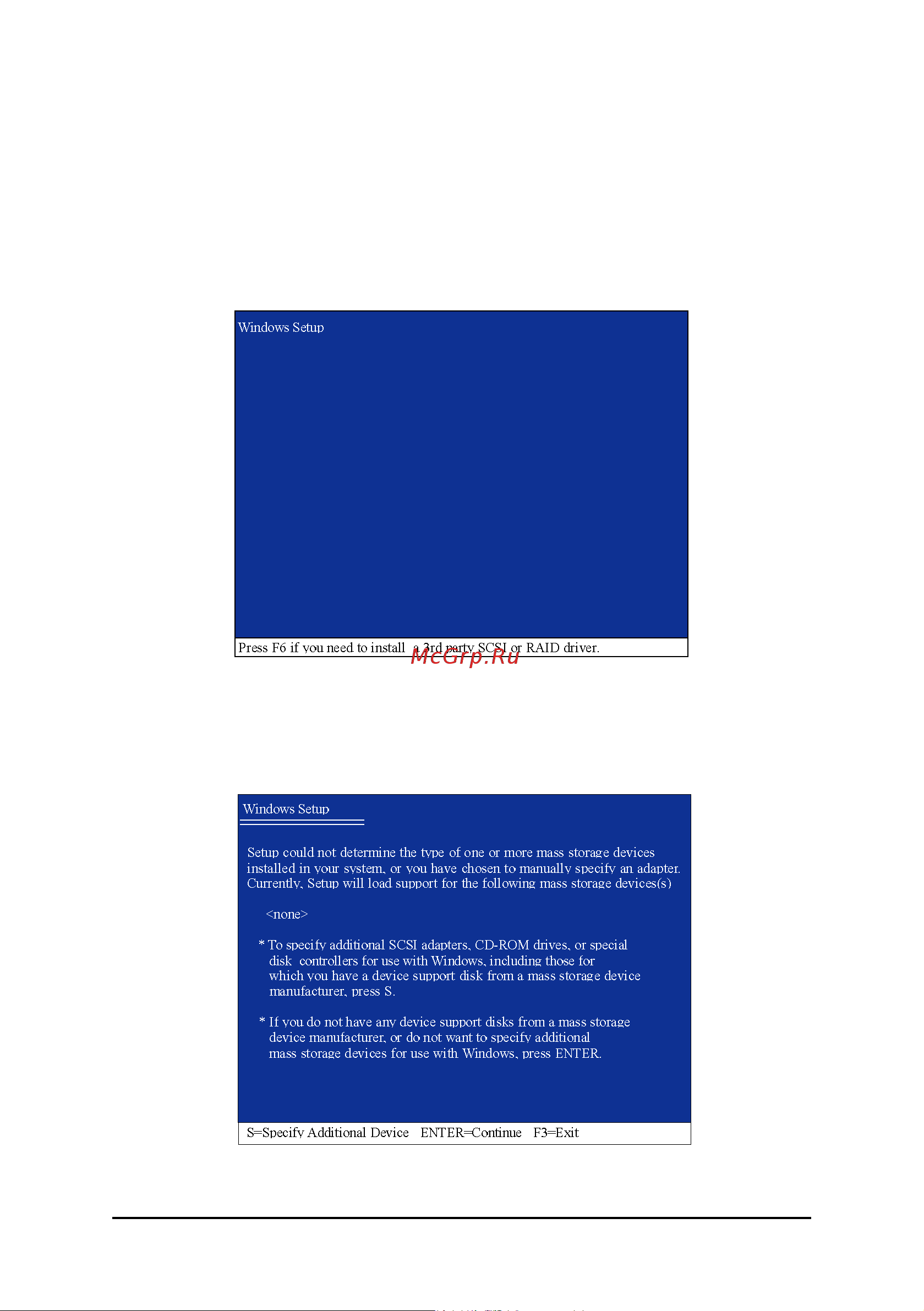

Figure 15

Figure 16

(5) Installing SATA controller driver during OS installation

Now that you have prepared the SATA driver disk and configured BIOS settings, you are ready to install

Windows 2000/XP onto your SATA hard drive with the SATA driver. The following is an example of

Windows XP installation.

Step 1: Restart your system to boot from the Windows 2000/XP Setup disk and press F6 as soon as

you see the "Press F6 if you need to install a 3rd party SCSI or RAID driver" message (Figure 15). After

pressing F6, there will be a few moments of some files being loaded before you see the next screen.

Step 2:

When a screen similar to that below appears, insert the floppy disk containing the SATA driver and press

S (Figure 16).
