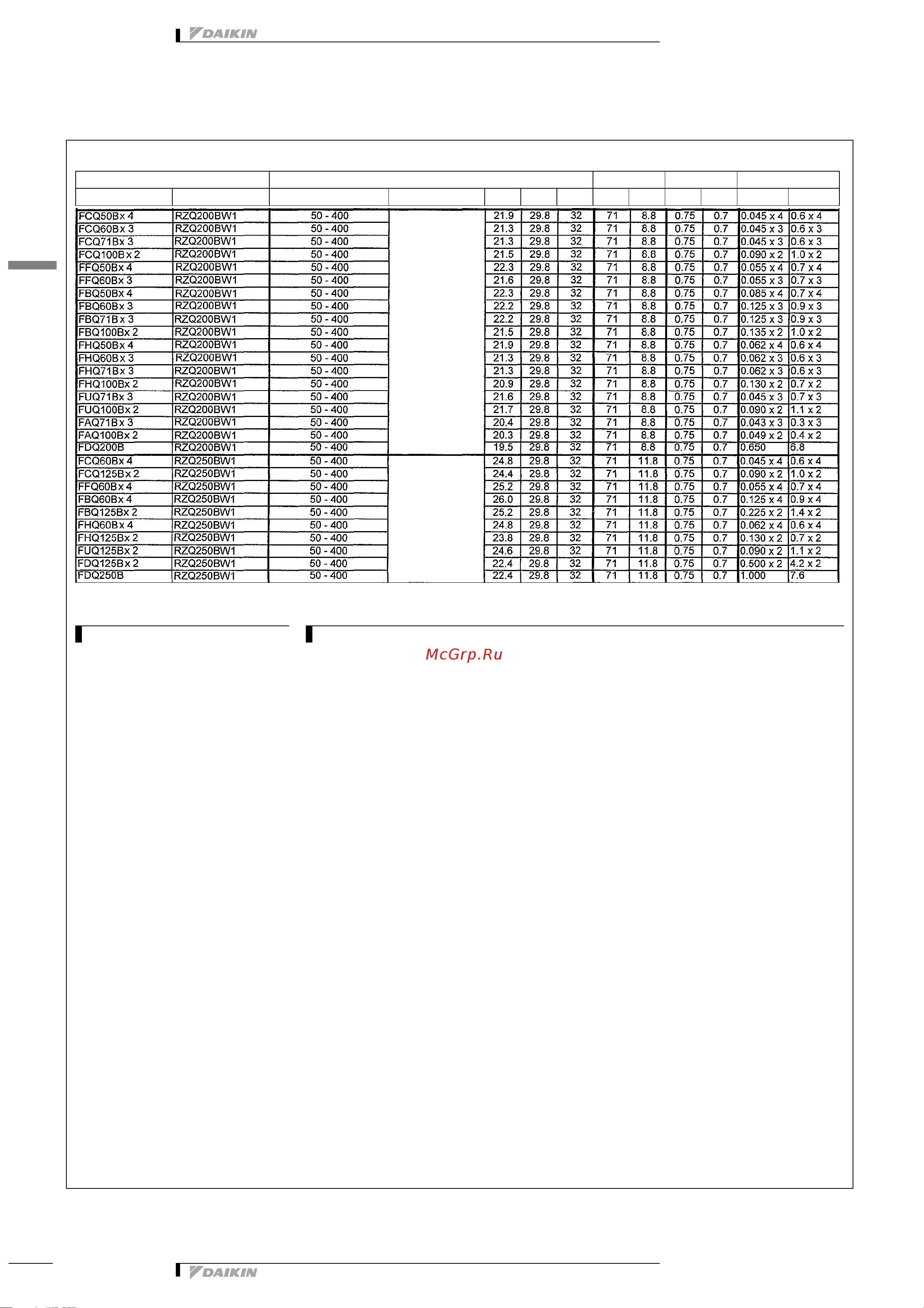

Daikin RZQ250B8W1B [11/52] Rzq200 250b
![Daikin RZQ250B8W1B [11/52] Rzq200 250b](/views2/1794899/page11/bgb.png)
• Outdoor Units • R-410A • RZQ-B9V3B_RZQ-B8W1B
3
• Split Sky Air • Outdoor Units
10
3 Electrical data
3TW26561-4A
SYMBOLS
MCA : Min. Circuit Amps (A)
TOCA : Total Over Current Amps (A)
MFA : Max. Fuse Amps (A)
MSC : MSC means the max. current
during the starting of compressor.
(A)
RLA : Rated Load Amps (A)
OFM : Outdoor Fan Motor
IFM : Indoor Fan Motor
FLA : Full Load Amps
kW : Fan Motor Rated Output (kW)
NOTES
1 RLA is based on the following conditions:
Power supply: 50Hz - 400V
Cooling
Indoor temperature 27°CDB/19°CWB
Outdoor temperature 35°CDB
2 TOCA means the total value of each OC set
3 Voltage range
Units are suitable for use on electrical systems where voltage supplied to unit terminals is not below or
above listed operation range limits
4 Maximum allowable voltage unbalance between phases is 2%
5 MCA represents maximum input current., MFA represents capacity which may accept MCA
(next lower standard fuse rating, min.15A)
6 Select wire size based on the larger value of MCA or TOCA
7 MFA is used to select the circuit breaker and the ground fault circuit interrupter (earth leakage circuit breaker)
8 For more details concerning conditional connections, see http://extranet.daikineurope.com, select ’’E-Data Books’’. Finally, click on the
document title of your choice.
Heating
Indoor temperature 20.0°CDB
Outdoor temperature 7.0°CDB/6.0°CWB
Max. 50Hz 440V
Min. 50Hz 360V
Max. 50Hz 440V
Min. 50Hz 360V
RZQ200-250B
Unit combination Power supply Comp. OFM IFM
Indoor unit Outdoor unit Hz-volts Voltage range MCA TOCA MFA MSC RLA kW FLA kW FLA
