Daikin RZQ125B8V3B [34/48] Piping diagram
![Daikin RZQ125B8V3B [34/48] Piping diagram](/views2/1794902/page34/bg22.png)
• Outdoor Units • R410A • RZQ-B
• Split Sky Air • Outdoor Units
32
2
7

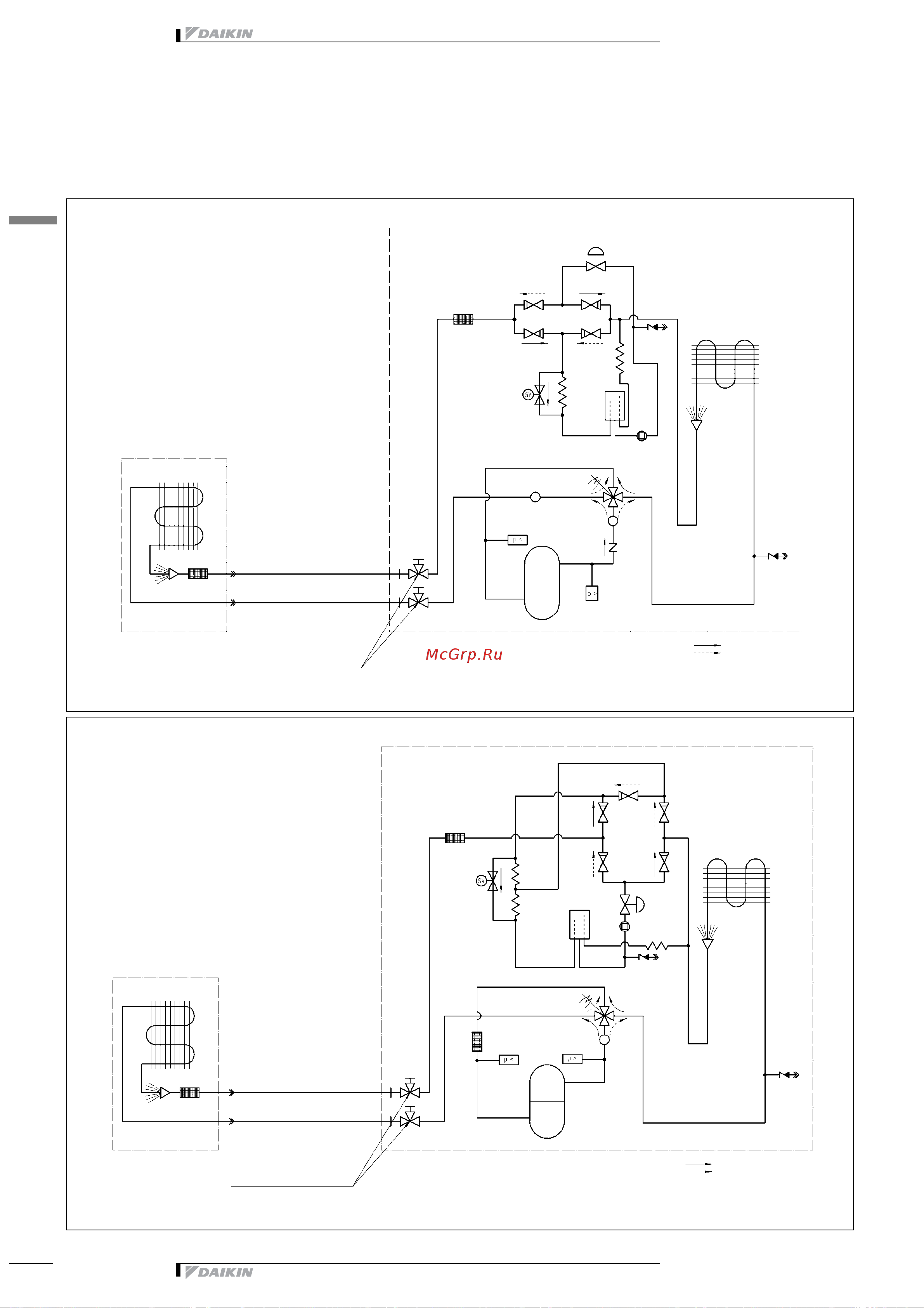

7 Piping diagram
3TW26735-1
RZQ71B (Pair)
Indoor unit
Field piping J15.9 C1220T-0
Field piping J9.5 C1220T-0
Low pressure
sensor
Heat exchanger
Filter
Stop valve
(with service port 5/16’ flare)
Filter
Electronic expansion
valve
4-way valve
Compressor
Receiver
Service port
5/16″
Heat exchanger
Muffler
One way valve
One way valve One way valve
Outdoor unit
O Check valve L Flare connection M Screw connection N Flange connection
Z
Pinched pipe P Spinned pipe
Heating
Cooling
One way valve
Service port
5/16″
High pressure
switch
One way
valve
Muffler
Capillary tube
Strainer
Solenoid valve
3TW26745-1
RZQ100-125-140B (Pair)
Indoor unit
Field piping J15.9 C1220T-0
Field piping J9.5 C1220T-0
Low pressure
switch
Heat exchanger
Filter
Stop valve
(with service port 5/16’ flare)
Filter
Electronic
expansion
valve
One way
valve
4-way valve
Compressor
Receiver
Service port
5/16″
Heat exchanger
One way
valve
One way
valve
One way
valve
Outdoor unit
O Check valve L Flare connection M Screw connection N Flange connection
Z
Pinched pipe P Spinned pipe
Heating
Cooling
One way valve
Service port
5/16″
High pressure
switch
Solenoid
valve
Muffler
Filter
Capillary
tube
Capillary
tube
Strainer
Capillary tube
