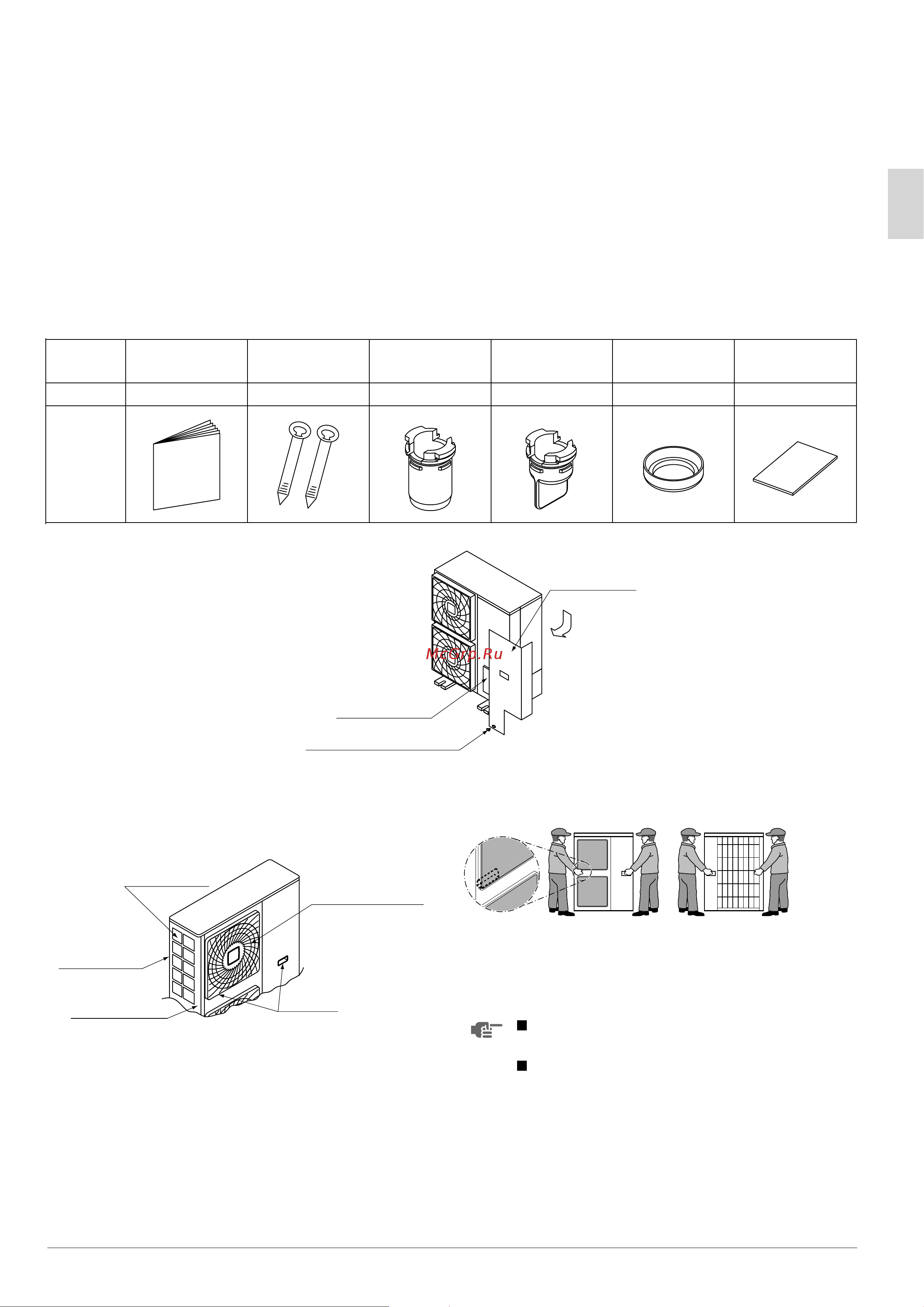

![Daikin RZQ20LCVAK [5/64] Before installation](/views2/1794930/page5/bg5.png)
English 4
01_EN_3P281953-1B.fm Page 4 Tuesday, January 25, 2011 3:35 PM
〈
Transporting the Unit
〉
As shown in Fig. 3, bring the unit slowly. (Take care not to let hands or things come in contact with rear fins.)
〈
Installation Parts
〉
Always use accessory parts or those of designated specification as parts required for installation.
Intake hole
Corner
Outdoor unit
Handle
Air outlet grille
Fig. 2
Fig. 3
Do not holding the suction inlet in the side of the
casing, otherwise the casing could be deformed.
(Place your hands on the corner in the case of
71 class model.)
Take care not to let hands or objects
come in contact with rear fins.
Work in a team of at least two people
when carrying the unit.
Only hold the unit at the specified
positions when carrying it using PP
bands or other items.
Screw for front panel
Front panel
Accessories
Fig. 1
Name
Installation
manual
Clamp Drain socket Drain cap Drain receiver Seal
Quantity 1 2 pcs. 1 2 3 1
Shape
2. BEFORE INSTALLATION
<Do not throw away accessories that are required for installation.>
2-1 READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
• See the indoor unit’s installation manual for indoor unit installation.
•
The illustration shows a 48 type. Other models also comply with this.
2-2 ACCESSORIES
Make sure that the accessories shown in Fig. 1 are all present.
(The accessories can be found behind the front panel.)
