Daikin EK2VK0 [4/14] Mounting manual valve

Turn the upper part of the handwheel, keeping the lower

locknut blocked, moving it to a completely open position,

then tighten until it is fixed to the valve body. At this point,

the handwheel performs the adjustment.

Tighten the plastic disc to the valve body. Attach the head

to the valve body.

To facilitate the system mounting, filling and venting

operations, even without electric power, the thermostatic

head is supplied with a tool that keep it open.

Remove the tool from the thermostatic head before

starting the system.

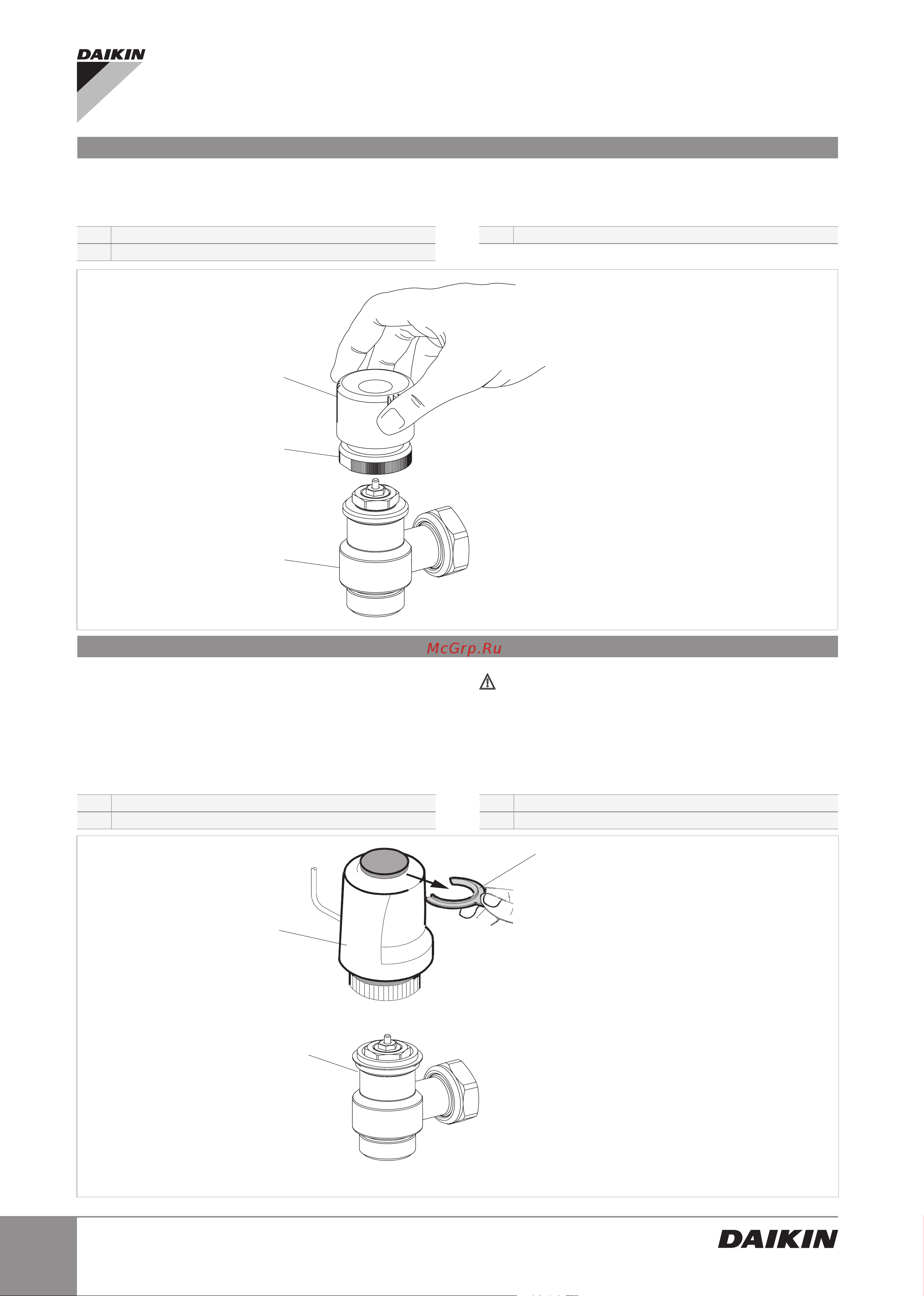

Mounting manual valve

Mounting the thermostatic head

plastic tool

valve body

thermostatic head

upper part of the handwheel

lower locknut

valve body
