EKHBRD011~016ADV1+Y1
Indoor unit for air to water heat pump system and options
4P402192-1A – 2015.04
Operation manual
14

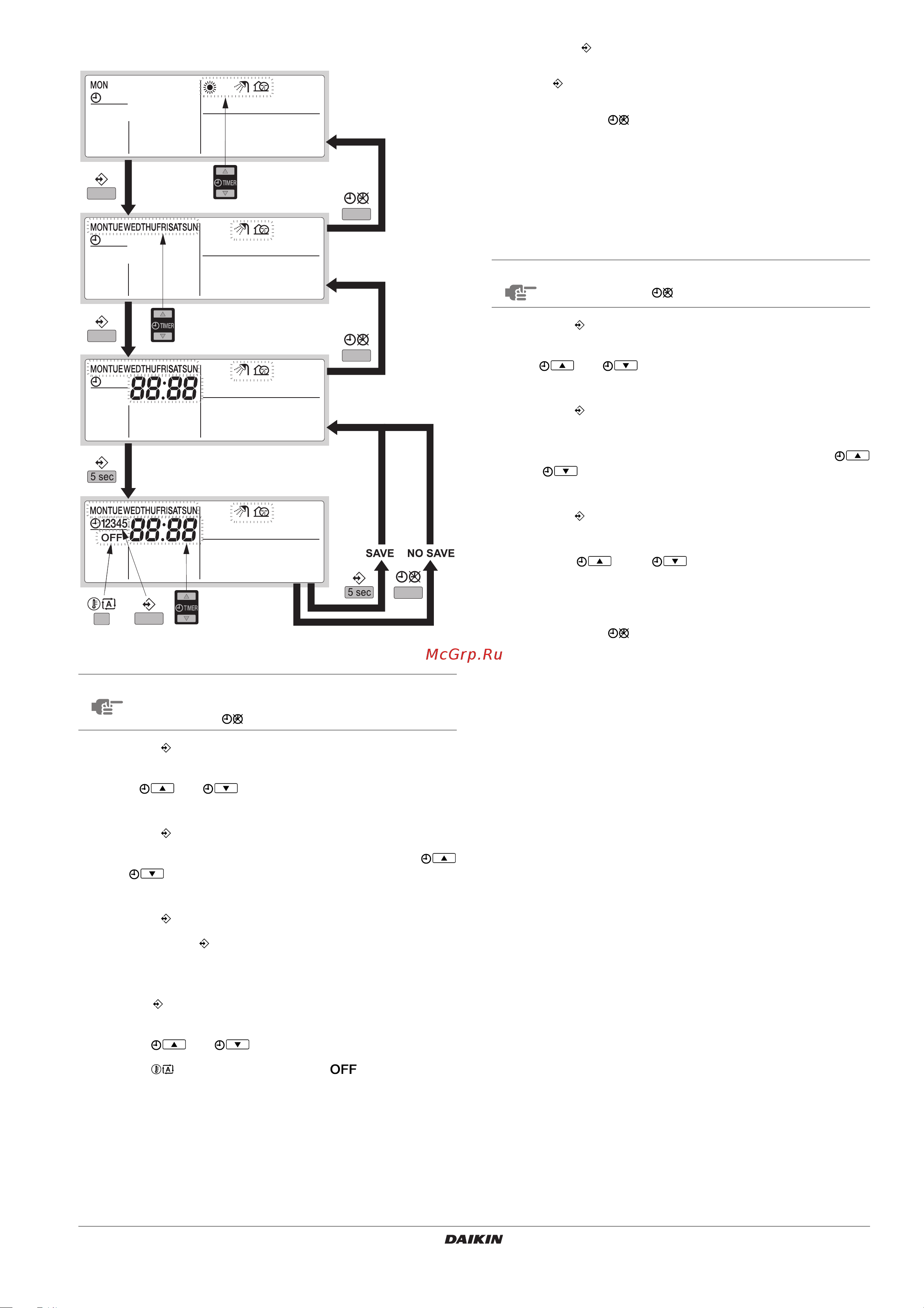

Programming quiet mode or domestic water heating
Programming domestic water heating or quiet mode is carried out as
follows:
1 Press the button to enter the programming/consulting mode.
2 Select the operation mode you would like to program by means
of the and buttons.
The actual mode is blinking.
3 Press the button to confirm the selected mode.
4 Select the day you would like to program by means of the
and buttons.
The actual day is blinking.
5 Press the button to confirm the selected day.
6 Hold down the button for 5 seconds to the program the
detailed actions
The first programmed action of the selected day appears.
7 Use the button to select the action number you would like to
program or to modify.
8 Use the and buttons to set the correct action time.
9 Use the button to select or deselect as action.
10 Repeat steps 7 to 10 to program the other actions of the
selected mode.
When all actions have been programmed, make sure that the
display shows the highest action number you would like to save.
11 Press the button for 5 seconds to store the programmed
actions.
If the button is pressed when action number 3 is displayed,
actions 1, 2 and 3 are stored but 4 and 5 are deleted.
By pressing the button several times, you return to previous
steps in this procedure and finally return to normal operation.
12 You automatically return to step 6, start again to program the
following day.
Consulting programmed actions
Consulting space heating, domestic water heating or quiet mode is
carried out as follows:
1 Press the button to enter the programming/consulting mode.
2 Select the operation mode you would like to consult by means of
the and buttons.
The actual mode is blinking.
3 Press the button to confirm the selected mode.
The actual day is blinking.
4 Select the day you would like to consult by means of the
and buttons.
The selected day is blinking.
5 Press the button to confirm the selected day.
The first programmed action of the selected day appears.
6 Use the and buttons to consult the other
programmed actions of that day.
This is called the readout mode. Empty program actions (e.g. 4
and 5) are not displayed.
By pressing the button several times, you return to previous
steps in this procedure and finally return to normal operation.
NOTE
Returning to previous steps in the programming
procedure without saving modified settings is done by
pressing the button.
NOTE
Returning to previous steps in this procedure is done
by pressing the button.
