2 About the box
Installation manual
4
CHYHBH05+08AA
Daikin Altherma R Hybrid
4P471756-1E – 2019.09

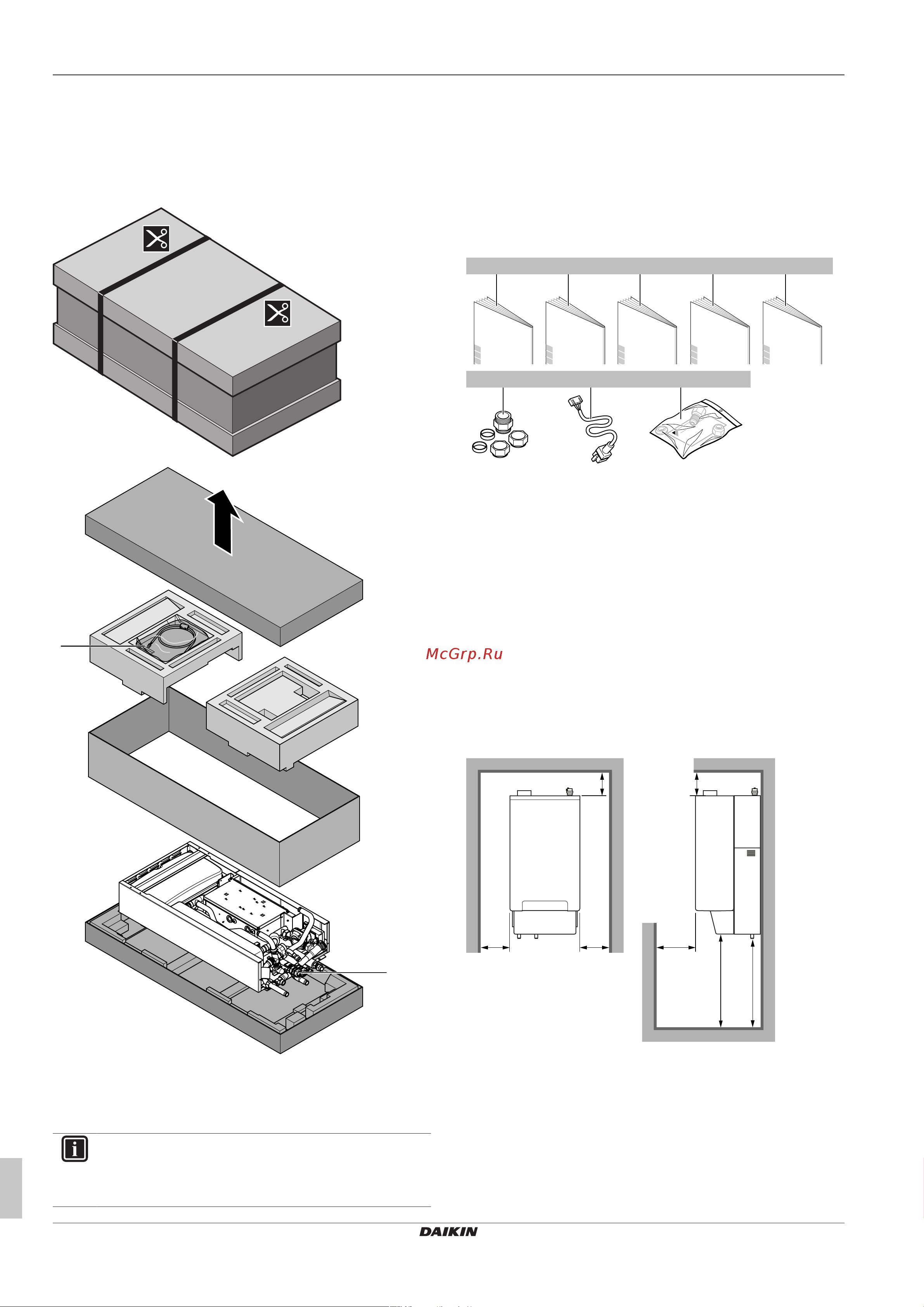

2 About the box
2.1 Indoor unit
2.1.1 To unpack the indoor unit
a
b
a Installation manual, operation manual, addendum book for
optional equipment, quick installation guide, general safety
precautions, boiler communication cable, reducer
accessory set.
b Connection pieces for the gas boiler
INFORMATION
Do NOT throw away the upper cardboard cover. On the
outside of the cardboard cover, the installation pattern is
printed.
2.1.2 To remove the accessories from the
indoor unit
1 Remove the accessories as described in "2.1.1To unpack the
indoor unit"[44].
The installation manual, operation manual, addendum book for
optional equipment, general safety precautions, quick installation
guide, boiler communication cable and reducer accessory set are
located in the upper part of the box. The connection pieces for the
gas boiler are attached to the water piping.
a b c d e
f g h
a General safety precautions
b Addendum book for optional equipment
c Indoor unit installation manual
d Operation manual
e Quick installation guide
f Connection pieces for gas boiler
g Boiler communication cable
h Reducer accessory set
3 Preparation
3.1 Preparing the installation site
3.1.1 Installation site requirements of the
indoor unit
▪ Mind the following spacing installation guidelines:
H>500
300
h
300
10 350 500
(mm)
H Distance measured from the floor to the bottom of the
casing of the gas boiler (minimum 500mm, and in case of
a valve mounting kit: 800mm).
h Distance measured from the floor to the flare nut of the
refrigerant piping.
