4 About the box
Installer reference guide
10
CHYHBH05+08AA + EHYKOMB33A
Daikin Altherma R Hybrid
4P471761-1C – 2019.09
a b c d e
f g h
a General safety precautions
b Addendum book for optional equipment
c Indoor unit installation manual
d Operation manual
e Quick installation guide
f Connection pieces for gas boiler
g Boiler communication cable
h Reducer accessory set

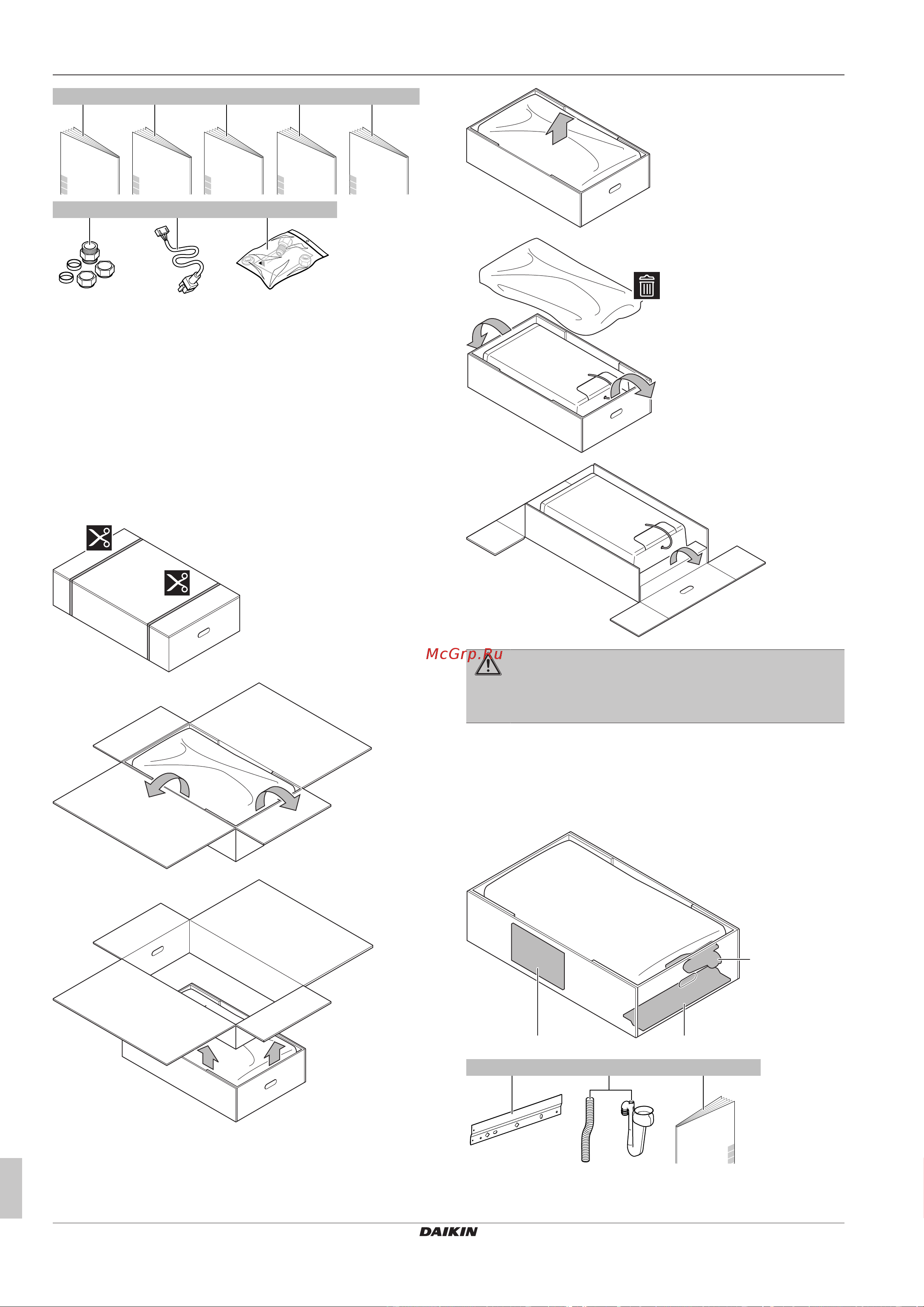

4.3 Gas boiler
4.3.1 To unpack the gas boiler
Before unpacking, move the gas boiler as close as possible to its
installation position.
1
2
WARNING
Tear apart and throw away plastic packaging bags so that
nobody, especially children, can play with them. Possible
risk: suffocation.
4.3.2 To remove the accessories from the gas
boiler [HybridPair+Multi]
1 Remove the accessories.
a
b
c
a b c
a Mounting strip
b Condensate trap
c Installation and operation manual
