• Daikin Altherma High Temperature • Outdoor units • ERRQ-AAY1
• Heating • Daikin Altherma
28

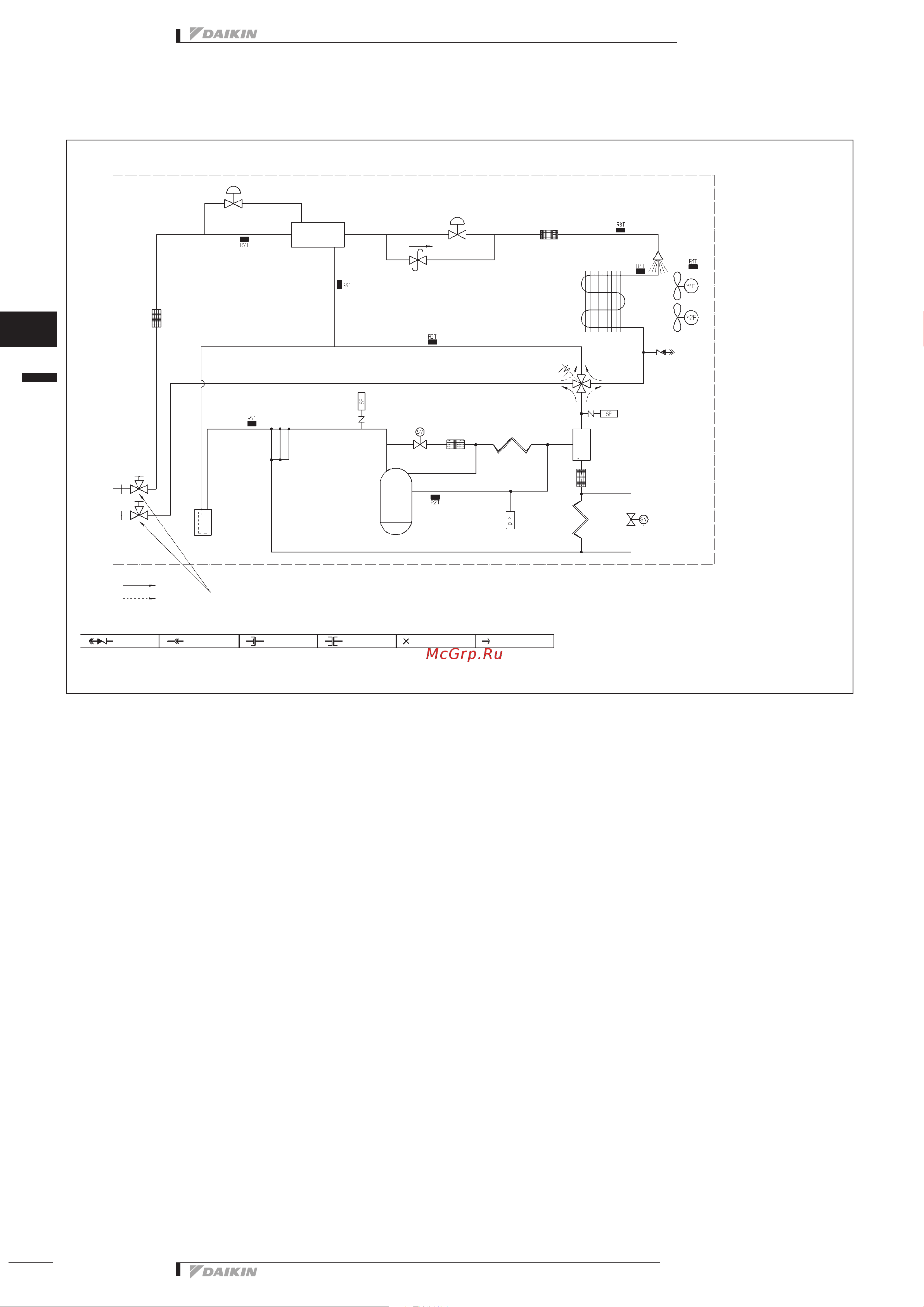

5 Piping diagram
5 - 1 Piping diagram
2
5
3TW58745-1
ERRQ011-016AA
Heat exchanger
Compressor
(MC1)
High pressure
sensor (S1NPH)
Filter
Filter
Filter
Pressure regulating valve
4-way valve
(Y1S)
Solenoid valve (Y3S)
Electronic expansion
valve (Y1E)
Electronic expansion
valve (Y3E)
Low pressure
sensor (S1NPL)
Capillary
tube
Service port
Double pipe heat
exchanger
Stop valve (with service port on field piping side J 7.9mm flare connection)
Filter
High pressure
switch
(S1PH)
Capillary tube
Accumulator
Solenoid valve (Y2S)
Heating
Defrost
Check valve Flare connection
Screw connection
Flange connection
Pinched pipe
Spinned pipe
Fan
R1T: Ambient thermistor
R2T: Discharge thermistor
R3T: Suction thermistor (1)
R4T: Coil thermistor
R5T: Suction thermistor (2)
R6T: Subcool thermistor
R7T: Liquid thermistor (1)
R8T: Liquid thermistor (2)
