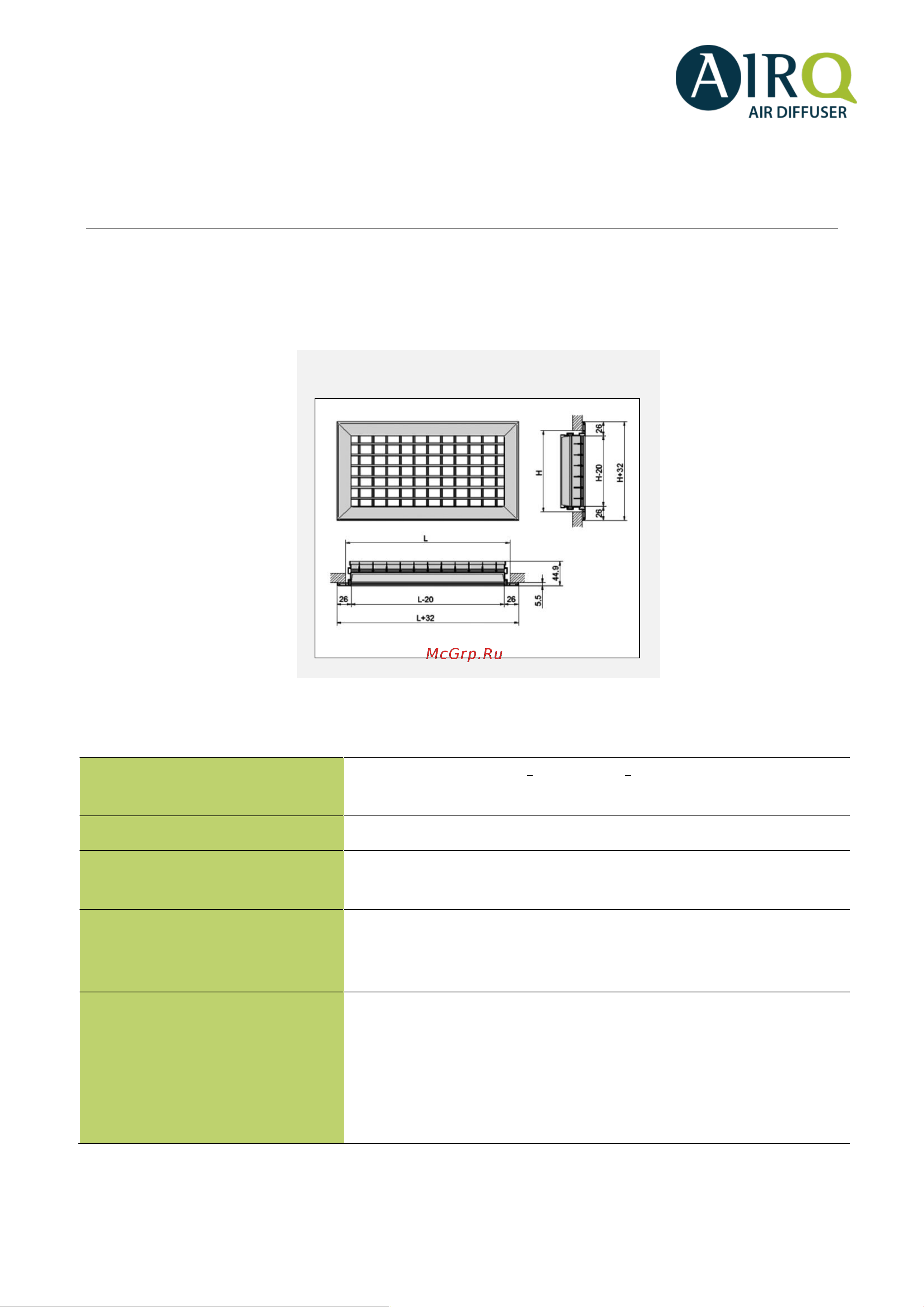

RDHV

Supply grille of horizontal-vertical double deflection

Description

Extruded aluminum supply grille. 26-mm standard frame. Horizontal and vertical moving slats for an

individual regulation as they adapt the air range and the air stream to the needs of the zone.

Technical specs

Sizes

Without flow regulation: L: 200 1000 mm, H: 100 600 mm

With flow regulation: L: 200 -1000 mm, H: 100 - 450 mm

Material

Extruded aluminum

Finish

White (RAL 9010)

Anodized

Fixing*

Clip (K), mounting frame required

Screw (T), mounting frame required

Bolt (P), safety mechanical fixing

Compatible accessories

Mounting frame

Manual flow regulation:

- All-nothing. Damper covers 100% of the grille.

- 2x1. Damper covers 50% of the grille.

- Minimum air. Damper covers 80% of the grille.

Plenum for grilles (PREJ y FR-X2F)

Grille deflector

*Note: to mount grilles in the ceiling, Airzone recommends using fixing screws or bolts.

RDHV/RDHV+R
