Modular-Light AHU
User Manual
5

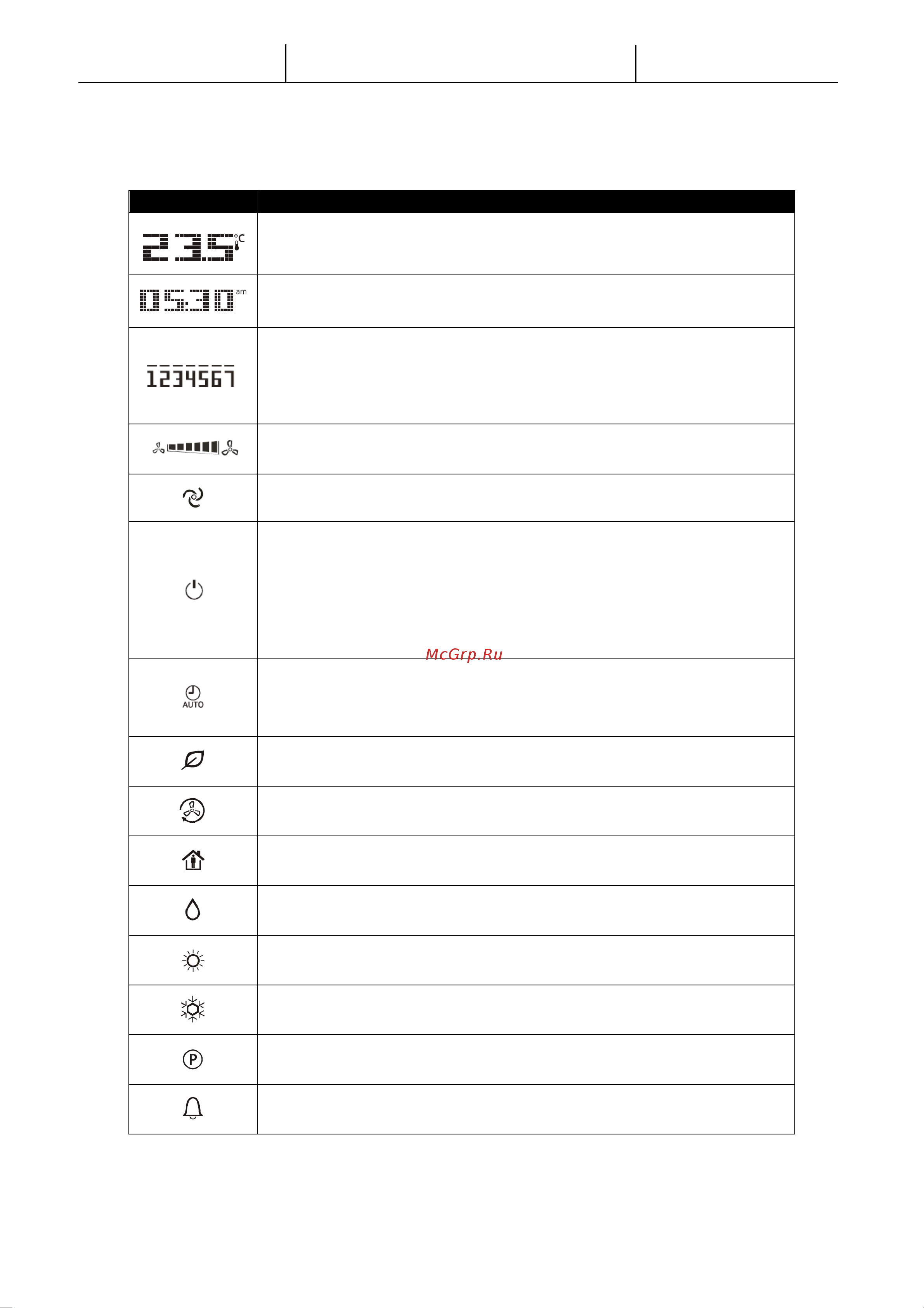

3.3 Display Overview
The table below explains all the symbols available on the display:
Display
Meaning
Room temperature value
Time
Day of the week
1= Monday
2= Tuesday
etc…
Fan speed visualization
Fan speed control mode set to Auto
On/Off state of the unit.
This icon is:
1. On - when the unit is in On, Ventilation or Economy state.
2. Off - when the unit is Off.
3. Blinking - when the unit is in Test mode or in off state by Panel
Switch.
Unit control mode set to Auto.
The actual unit state and relative icons (On, Off, Ventilation or Economy)
are based on Time Scheduler settings.
Economy mode active
Ventilation mode active
Occupancy mode active
Dehumidification control active
Heating mode (Winter)
Cooling mode (Summer)
Unit Cool/Heat (Summer/Winter) mode changeover set to Auto
Unit in alarm (see Alarm section for further info)
