Daikin LRLEQ3BY1 [24/36] Configuration

6 Configuration

Installation and operation manual

24

LRMEQ+LRLEQ3+4BY1

Air-cooled refrigeration condensing unit

4P545024-1 – 2018.09

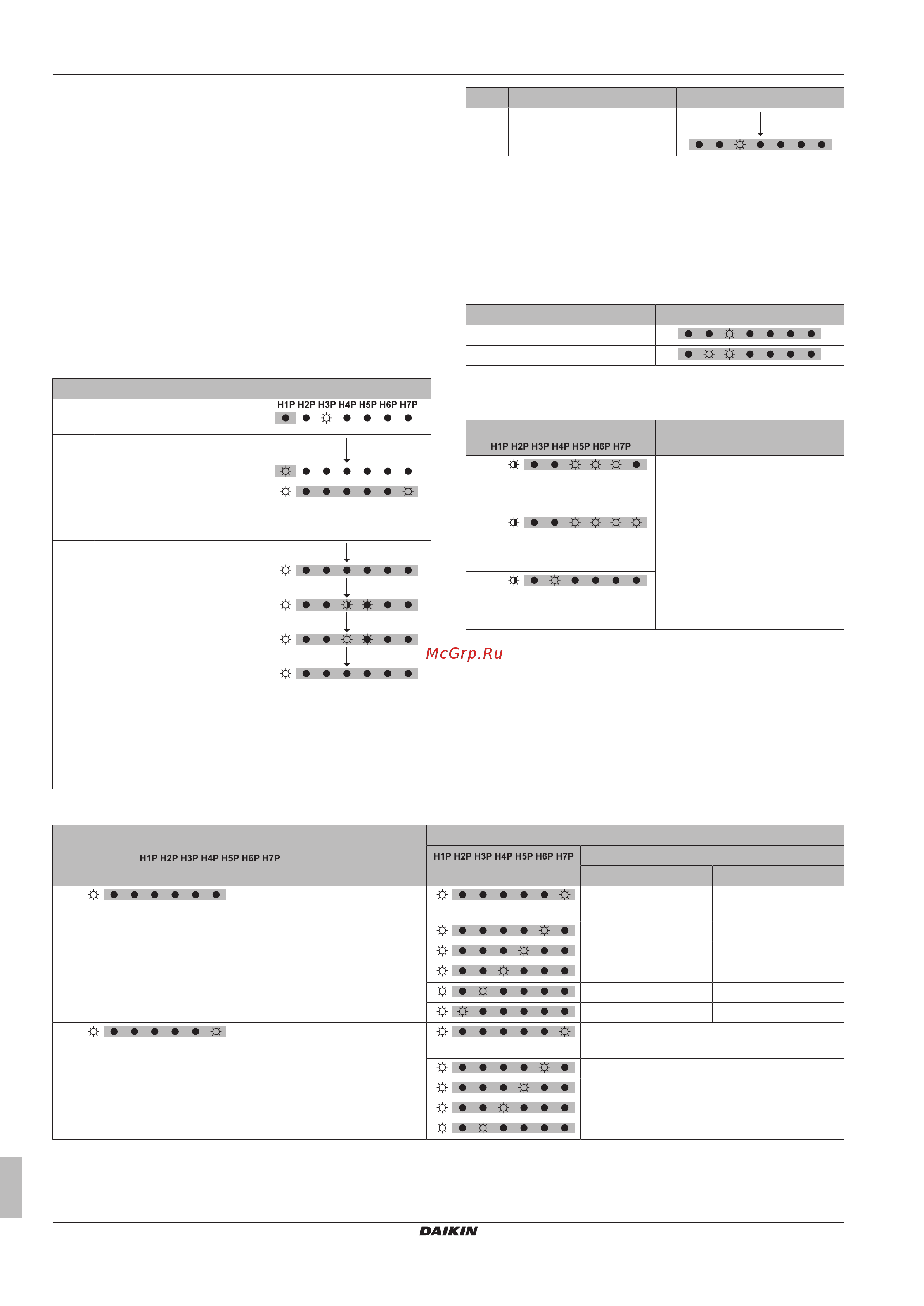

6.1.5 To use mode 1

In mode 1 (and in default situation) you can read out some

information.

See "6.1.7 Mode 1 (and default situation): Monitoring settings" on

Example: 7‑LEDs display – Mode 2 (example for LRMEQ*)

You can fine‑tune the value of setting [2‑1] (=T

e

target evaporating

temperature) to 8 (=+3°C) as follows:

# Action Button/display

1 Start from the default

situation.

2 Select mode 2.

indication corresponds with

the LEDs in "6.1.8Mode 2:

Field settings"on page24.

("X×" depends on the current

value, and the value that you

want to select.)

c: Enter the value in the

system.

d: Confirm. The system starts

operating according to the

6.1.7 Mode 1 (and default situation): Monitoring

settings

In mode 1 (and in default situation) you can read out some

information.

7‑LEDs display – Default situation (H1P OFF)

You can read out the error code status:

(

)

Value / Description

[1‑14]

Shows the latest malfunction

code.

For more information, see

"8.1Solving problems based on

error codes"on page27.

[1‑15]

In mode 2 you can make field settings to configure the system. The LEDs give a binary representation of the setting/value number.

Setting

[2‑0]

T

With this setting the target evaporating temperature can be set in

0°C –25°C

5°C –20°C

[2‑1]

T

With this setting the target evaporating temperature set by [2‑0]

can be fine‑tuned in increments of 1K.

(default)

+0°C

+1°C
