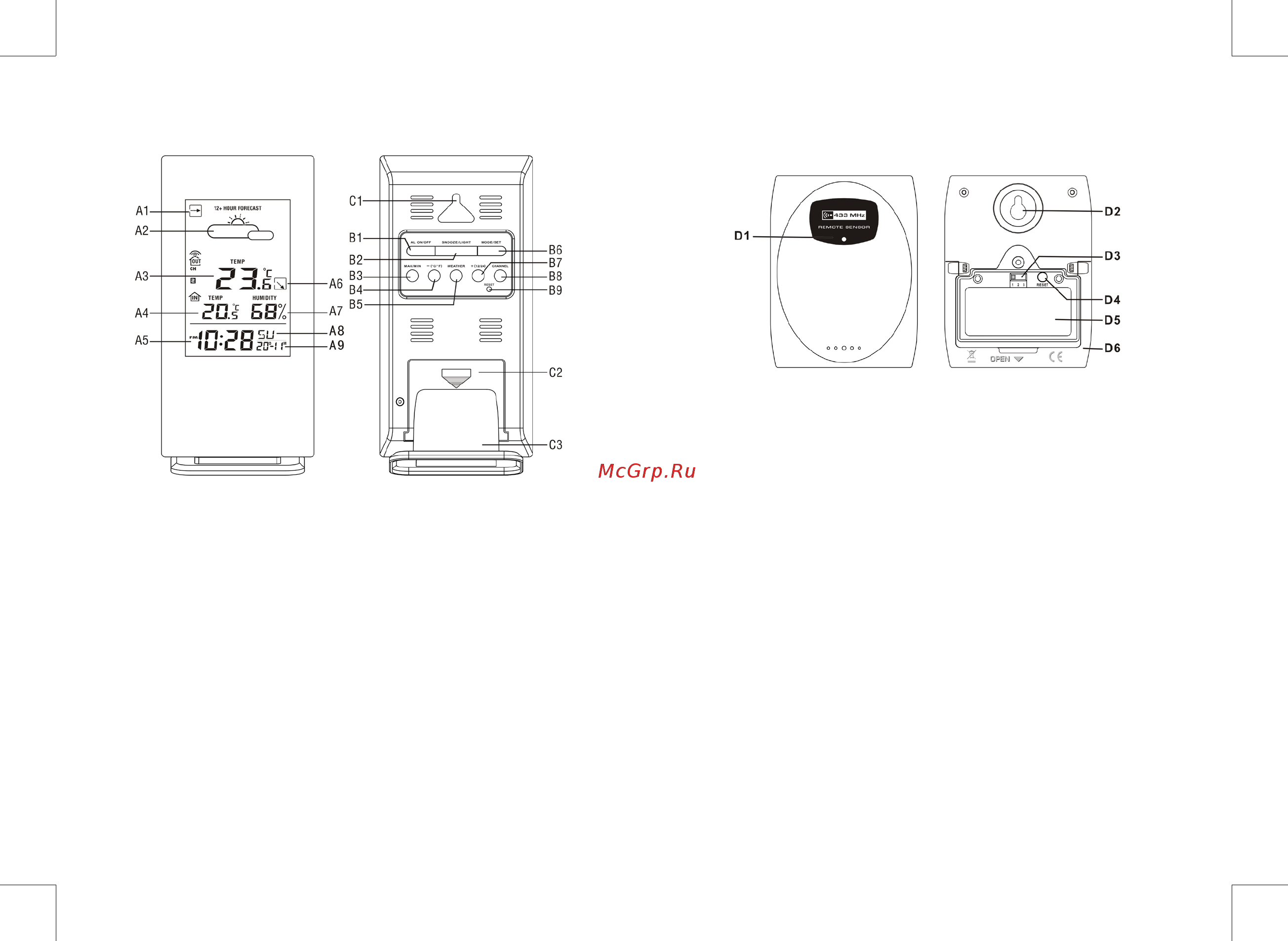

2. Main Unit Appearance 3. Outdoor Thermo Sensor

2.1 Part A- LCD

A1: Barometer Pressure Trend

A2: Weather Forecast

A3: Outdoor Temperature

A4: Indoor Temperature

A5: Time Display

A6: Outdoor Temperature Trend

A7: Indoor Humidity

A8: Day of Week

A9: Date

2.2 Part B- Buttons

B1: “ALARM ON/OFF” button

B2: “SNOOZE/LIGHT” button

B3: “MAX/MIN” button

B4: “-(C/F)” button

B5: “WEATHER” button

B6: “MODE/SET” button

B7: “+ (12/24)” button

B8: “CHANNEL” button

B9: “RESET” button

2.3 Part C- Structure

C1: Wall Mount Hole

C2: Battery Cover

C3: Stand

D1: Transmission Indication LED

D2: Wall Mount Hole

D3: Channel Select Switch

D4: “RESET” button

D5: Battery Compartment

D6: Stand

4. Getting Started:

4.1 Main Unit:

• Slide open main unit battery compartment cover [C2]

• Insert 3 x AAA batteries observing polarity [ “+” and “ –“ marks]

• Replace main unit battery compartment cover [C2]

• Use a pin to press the RESET [B9] button on the rear of the main unit, the main unit is

now ready for use

4.2 Outdoor Thermo Sensor

• Batteries compartment (D5) of thermo sensor is locating behind the back cover,

unscrews the batteries cover to open.

• Insert 2 x AAA batteries observing polarity [ “+” and “–“ marks]
