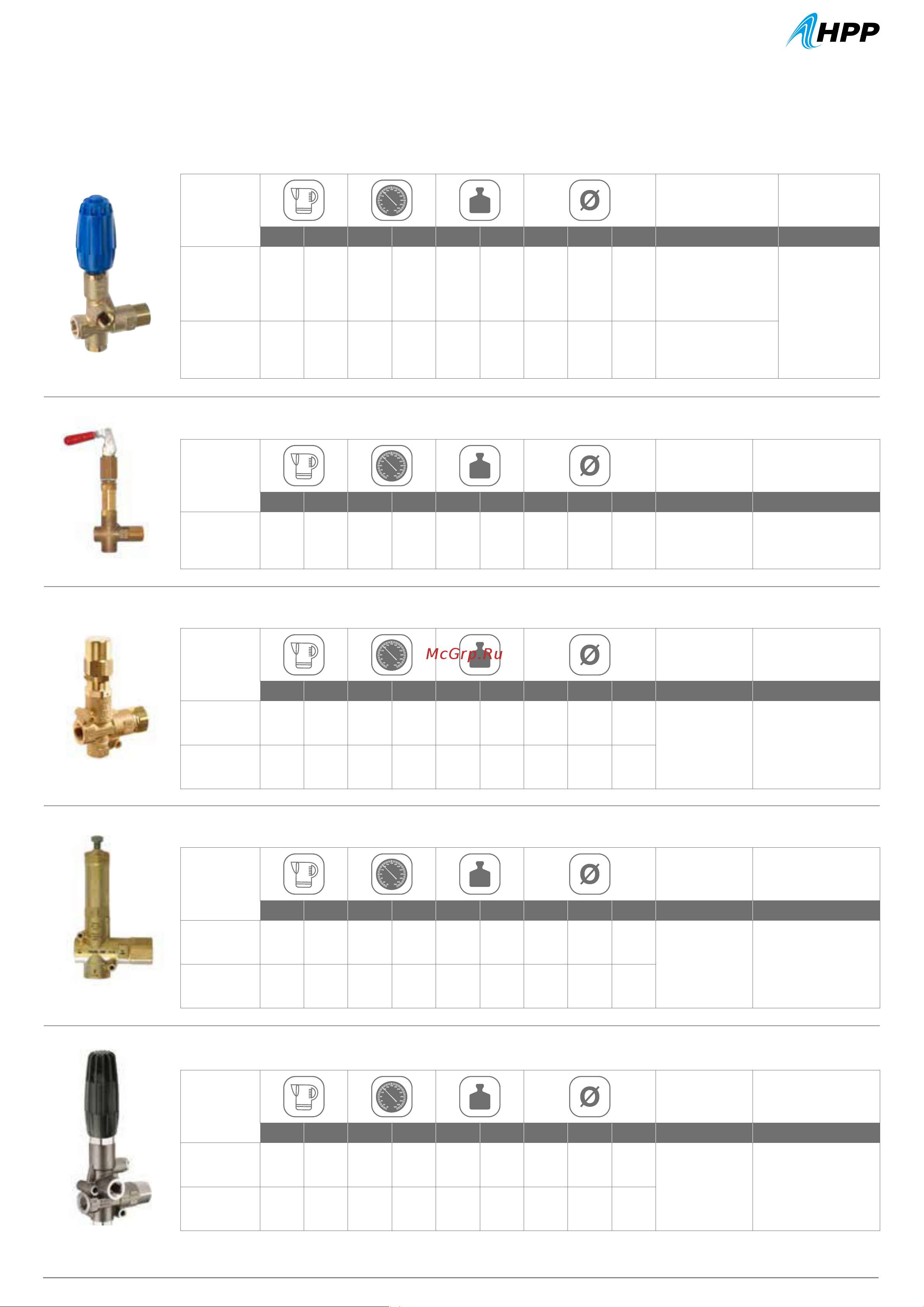

HPP ELR 102/160 (1900об/мин) [8/17] Bp 01 a
![HPP ELR 102/160 (1900об/мин) [8/17] Bp 01 a](/views2/1804690/page8/bg8.png)
110
HPP › High pressure pumps
UNLOADER VALVES › VÁLVULAS AUTOMÁTICAS › DRUKREGLERAUTOMATIK › VALVOLE AUTOMATICHE
VANNES AUTOMATIQUES
CODE
l/min US gpm bar psi g oz in out by-pass Materiale Su pompa
1215 0587 100 26,4 170 2465 1160 40,92 G1/2F G1/2F G1/2F
Nickel plated brass /
Latón niquelado /
Vernickelter Messing /
Ottone nichelato /
Laiton nickelé
CL - CLW
ELR - EL - ELS
1215 0568 100 26,4 320 4640 1175 41,45 G1/2F G1/2F G1/2F
Brass / Latón /
Messing / Ottone /
Laiton
BP 01/A
CODE
l/min US gpm bar psi g oz in out by-pass Materiale Su pompa
1215 0512 200 53 150 2175 3400 120
G1”
NPT
G1”
NPT
G1”
NPT
Brass / Latón /
Messing / Ottone
/ Laiton
EL - ELR - ELS
EF - EFR - ES - ESR
BPL 01
BP 250/150 - BP 250/280
BP 05 - BP 06
BP 80/400
- BP 80/640
CODE
l/min US gpm bar psi g oz in out by-pass Materiale Su pompa
1215 0627 250 66 150 2175 3200 112,88 G1”F G1”F G1”F
Brass / Latón /
Messing / Ottone
/ Laiton
EL - ELR - ELS
EF - EFR - ES - ESR
GL - GLR
SL - SLR
1215 0628 250 66 280 4060 3240 114,29 G1”F G1”F G1”F
CODE
l/min US gpm bar psi g oz in out by-pass Materiale Su pompa
1215 0487 450 119 200 2900 5950 212,51
G
1”1/4 F
G
1”1/4 F
G
1”1/4 F
Brass / Latón /
Messing / Ottone
/ Laiton
GL - GLR
SL - SLR
MLR - RLR
1215 0488 450 119 300 4350 6025 215,2
G
1”1/4 F
G
1”1/4 F
G
1”1/4 F
CODE
l/min US gpm bar psi g oz in out by-pass Materiale Su pompa
1215 0611 80 21 400 5800 2090 73,72 G1/2F G1/2F G1/2F
Stainless steel /
Acero Inoxidable /
Edelstahl /
Acciaio inox /
Acier inox
CH - ELH - ELHR
EFH - ESH - ESHR
1215 0612 80 21 640 9200 2090 73,72 G1/2F G1/2F G1/2F
