General-Fujitsu ASH7FSBCW [4/19] Outdoor unit
![General-Fujitsu ASH7FSBCW [4/19] Outdoor unit](/views2/1804831/page4/bg4.png)
3-Way valve
(with charging port)
Condenser
Dryer
Capillary tube
2-Way valve
(Flare connection)
Gas pipe (9.52 dia.)
(Flare connection)
(Flare connection)
Liquid pipe (6.35 dia.)
(Flare connection)
INDOOR UNIT
OUTDOOR UNIT
[ Connecting pipe ]
Evaporator
Com-
pressor

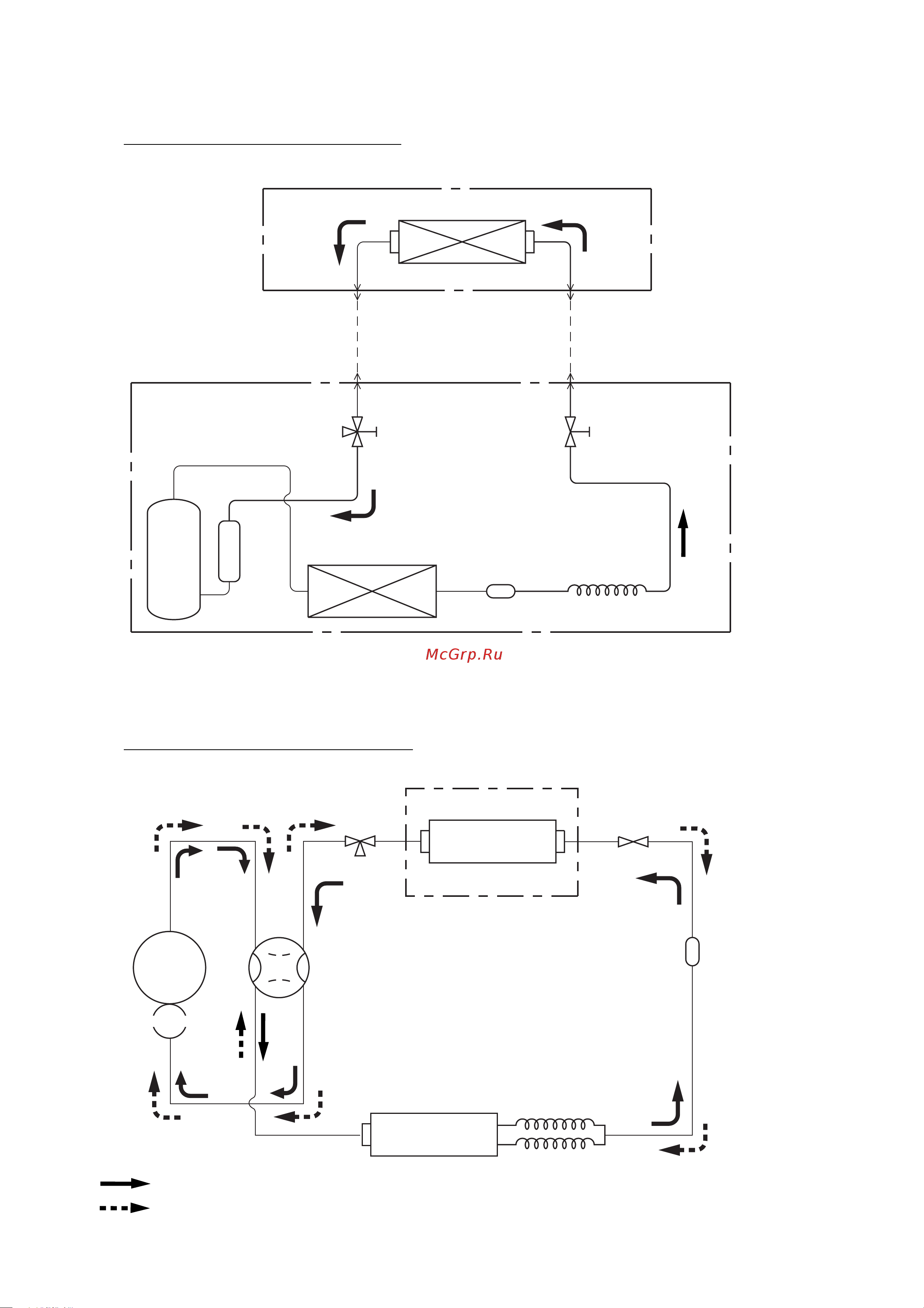

REFRIGERANT SYSTEM DIAGRAM
Models : ASH7FSBCW / AOH7FSBC
Models : ASH7USBCW / AOH7USBC
ASH7USBCW / AOH7USNC
2-Way valve
Dryer (AOY7USBC)
Strainer (AOY7USNC)
3-Way valve
4-Way valve
Evaporator
Condenser
Common capillary tube
: Cooling
: Heating
Com-
pressor
Accumulator
INDOOR UNIT
2005.02.10 3
