General-Fujitsu ASH7FSBCW [5/19] Controller pcb
![General-Fujitsu ASH7FSBCW [5/19] Controller pcb](/views2/1804831/page5/bg5.png)
BLACK
BLACK
WHITE BLUE
WHITE
RED
ORANGE
WHITE RED
INDOOR UNIT
OUTDOOR UNIT
CM
FM
Terminal
Compressor
Fan Motor
Fan Motor
Capacitor
Overload Relay
Compressor
Capacitor
N L
R C
S

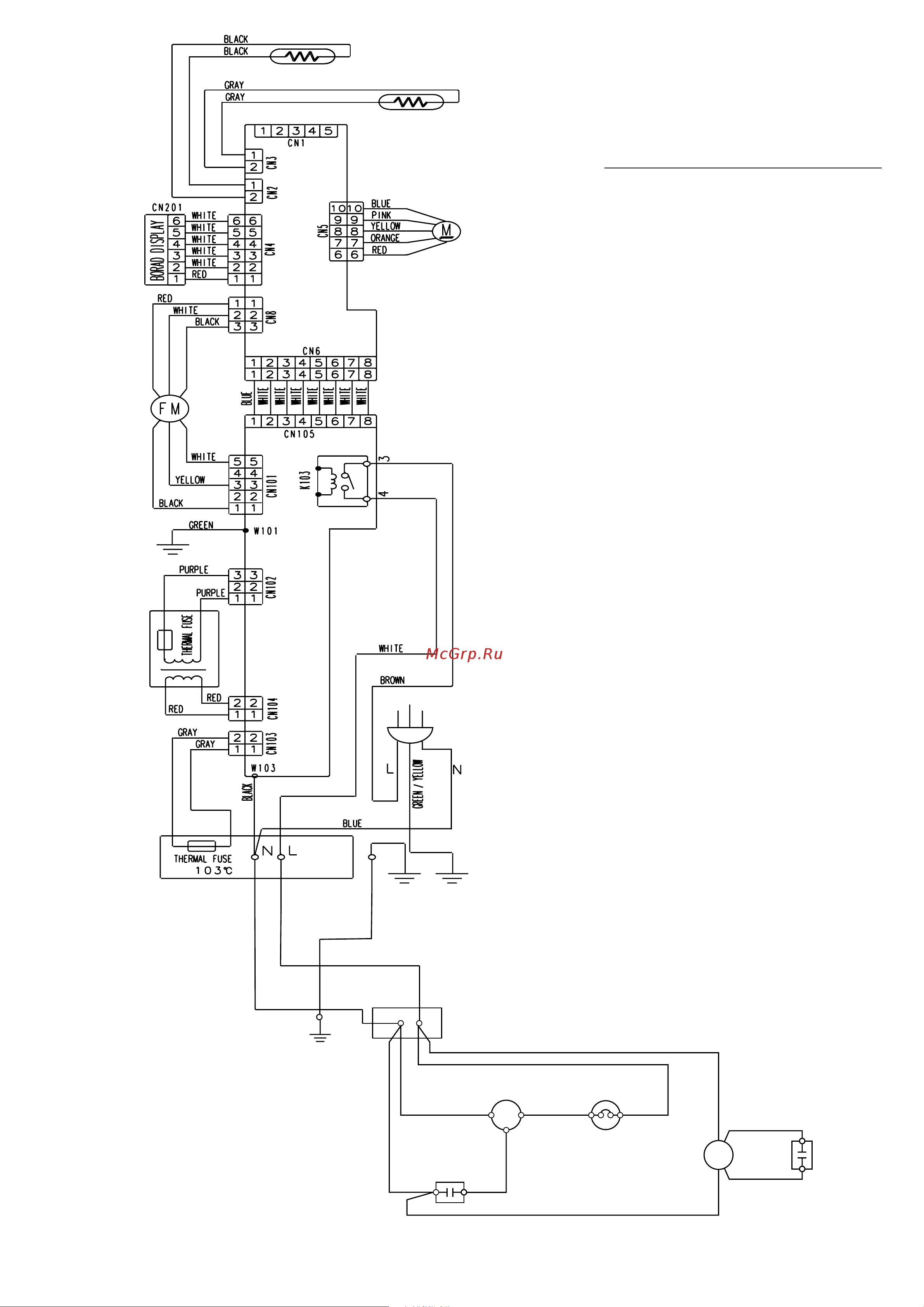

CIRCUIT DIAGRAM
Models : ASH7FSBCW / AOH7FSBC
Terminal
Relay
Thermistor
(pipe)
Thermistor
(room)
Step Motor
Fan Motor
Transformer
Power Supply PCB
Controller PCB
Test
2005.02.10 4
