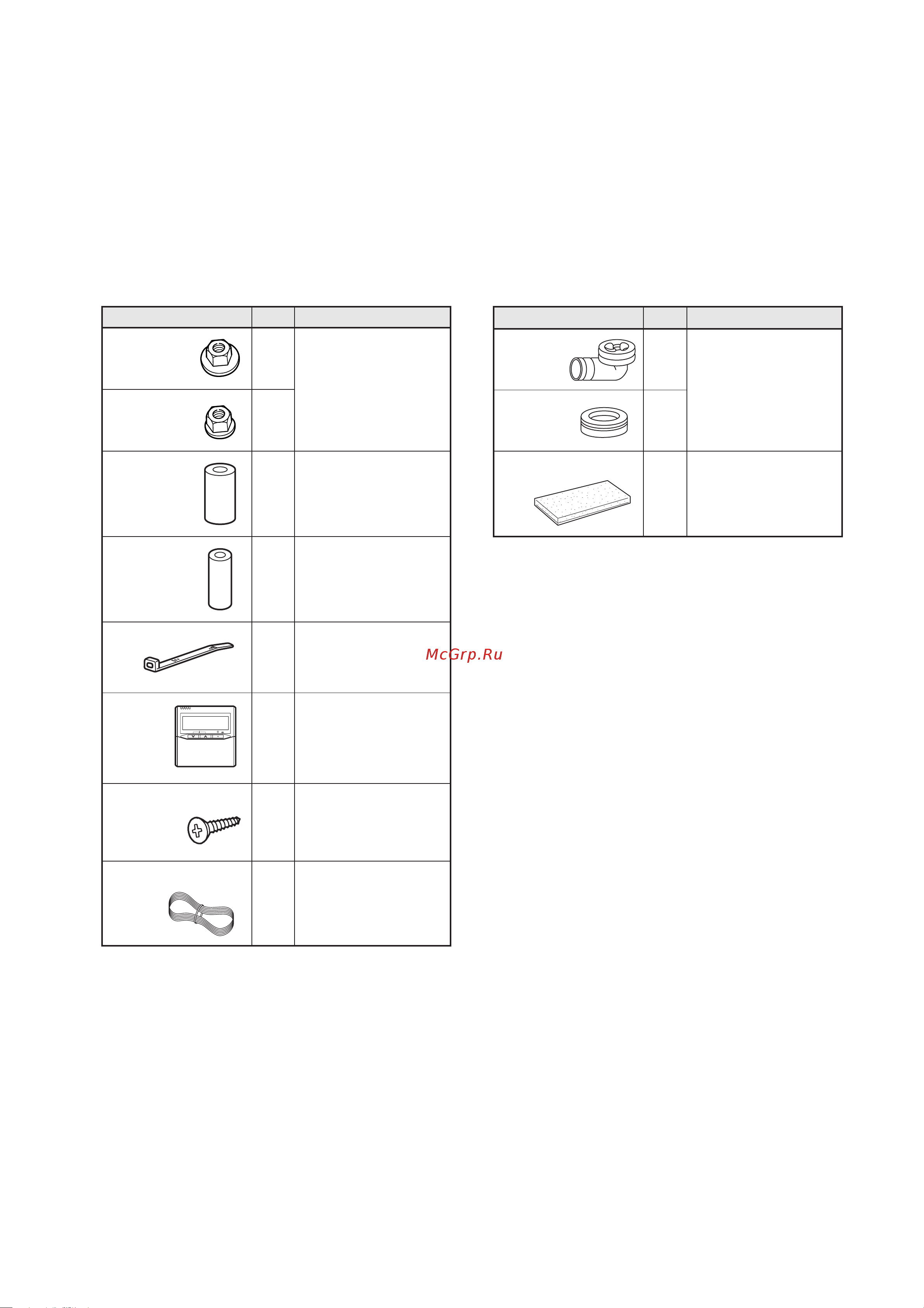

STANDARD ACCESSORIES
The following installation parts are furnished. Use them as required.
INDOOR UNIT ACCESSORIES
Name and Shape
Special nut A
(large flange)
Special nut B
(small flange)
Coupler heat
insulation
Coupler heat
insulation
Binder
Remote
controller
Tapping screw
(flush heads)
Remote controller cord
Q’ty
4
4
1
1
1
1
2
1
Application
For suspending the indoor
unit from ceiling
For indoor side pipe joint
(gas pipe)
For indoor side pipe joint
(liquid pipe)
For fixing the remote
controller cord
For installing the remote
controller
For connecting the remote
controller
(large)
(small)
OPTIONAL PARTS
The following options are available.
• Long-life filter : UTD-LF60KA (P/N 9017230004).
• Simple remote controller : UTB-YPB (P/N 9077582006)
• Remote sensor : UTD-RS100 (P/N 9072619004)
• External control set : UTD-ECS5A (P/N 9077359004)
OUTDOOR UNIT ACCESSORIES
Application
For outdoor unit drain
piping work (May not be
supplied, depending on
the model.)
For filling in a gap at the
entrance of connection
cords.
Q’ty
1
2
1
Name and Shape
Drain pipe
Drain cap
Insulation (seal)
202005.04.18
