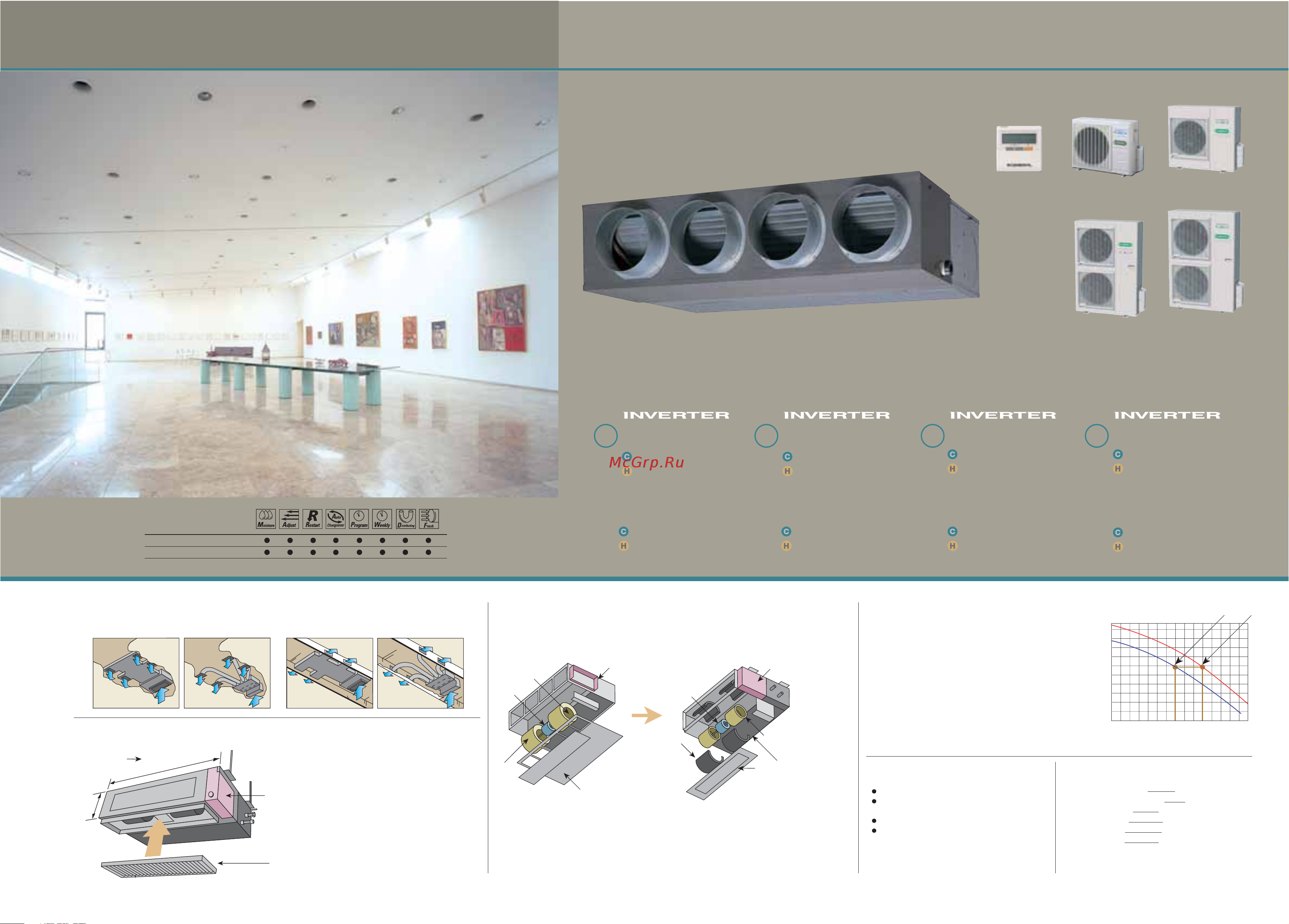

TYPE
DUCT
10
For ARH24L
ARG25U
For ARH30L/36L
ARG30U
ARH24L/30L/36L/45L
ARG25U/30U/36U/45U
Embedded in Ceiling
Hanging from Ceiling
In the case of rear suction type, as seen from lower rear part
1.Control box
2.Fan casing
3.Fan
4.Motor
Conventional model
2
4
1
3
Large bottom panel: 1 unit
New model
1
4
3
2
Bottom panel: 2 units
1,200 1,135mm
270mm
Static pressure (Pa)
12
0 70 100
Structural improvement is attained by making the bottom panel two pieces, front and rear, and the
internal fan casing is also made dismountable in two pieces, namely, upper and lower ones.The
motor and fan maintenance and dismounting can be made easily by removing the rear panel and
lower part of the casing with the main chassis installed.
Low static pressure mode function
Air intake position is selectable. (Rear or Bottom)
Air outlet shape is selectable at the time of
purchase. (Round or Square)
Drain pipe position is selectable. (Right or Left)
Fresh air can be taken in.
Other features
Remote sensor unit
Simple remote controller
UTD-RS100
UTB-GPB
Flange (square)
Flange (round)
Flexible duct
Long life filter
UTD-SF045T
UTD-RF204
UTD-RD202
UTD-LF25NA
Optional parts
When installed, normal middle static pressure mode
and low static pressure mode can be selected by
switching over using DIPswitch on the board in the
control box. Therefore, these models can be operated
under the wide range of conditions.
1.Low static pressure mode 1 air volume at 70Pa
(fan speed:high)
2.Normal Mode Air volume at 100Pa (fan speed:high)
Easy maintenance
In the case of bottom suction type, as seen from lower rear part.
In addition to the slim height of 270 mm which is our sales point,
further compactification is attained by reducing 65mm from the width
with the flanking controlbox embedded inside the chassis.
Slim & Compact design
Installation styles
Control Box that has been convex shape is now
united with main unit (DIP Switch is located on
the internal substrate.)
One-touch operating and easy-to-install
long-life filter (optional parts)
Air volume(m
3
/h)
For ARG36U/45U For ARH45L
ARG45U
12.70kW / 43,400BTU/h
14.30kW / 48,800BTU/h
ARG25U
7.00kW / 23,900BTU/h
7.70kW / 26,300BTU/h
ARG36U
10.50kW / 35,800BTU/h
12.70kW / 43,400BTU/h
ARG30U
8.40kW / 28,700BTU/h
9.50kW / 32,400BTU/h
10.00kW / 34,100BTU/h
8.50kW / 29,000BTU/h
ARH30L
8.00kW / 27,300BTU/h
7.10kW / 24,200BTU/h
ARH24L
14.00kW / 47,800BTU/h
12.50kW / 42,700BTU/h
ARH45L
11.20kW / 38,200BTU/h
10.00kW / 34,100BTU/h
ARH36L
New
Model
New
Model
New
Model
New
Model
Wired-Type
(With Weekly
/Setback Timer)
Easy maintenance with external control box.
