General-Fujitsu AOH14LMAKL [5/19] Refrigerant system diagram
![General-Fujitsu AOH14LMAKL [5/19] Refrigerant system diagram](/views2/1805582/page5/bg5.png)
Models : AUH12LBAB / AOH12LMAKL
4
2006.05.09

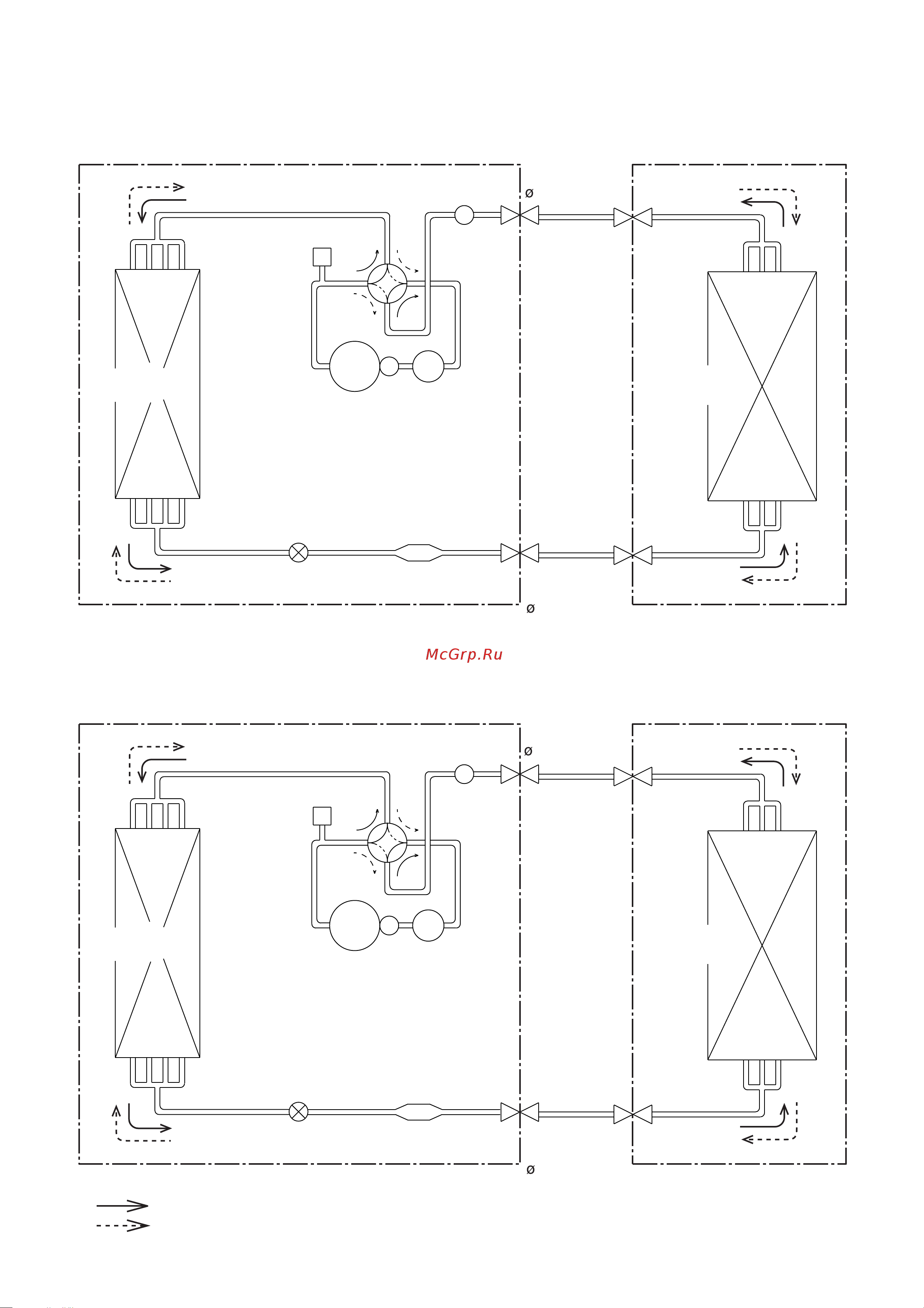

REFRIGERANT SYSTEM DIAGRAM
Models : AUH14LBAB / AOH14LMAKL
Cool
Heat
Compressor
Pressure
Switch
Accumulator
OUTDOOR UNIT
Condenser
4-way
Valve
Muffler
Compressor
Expansion
Valve
Refrigerant Pipe
6.35mm (1/4")
Evaporator
Refrigerant Pipe
9.52mm (3/8")
INDOOR UNIT
Strainer
Compressor
Pressure
Switch
Accumulator
OUTDOOR UNIT
Condenser
4-way
Valve
Muffler
Compressor
Expansion
Valve
Refrigerant Pipe
6.35mm (1/4")
Evaporator
Refrigerant Pipe
12.70mm (1/2")
INDOOR UNIT
Strainer
