General-Fujitsu ASYG09LLCA [17/25] Indoor unit fan
![General-Fujitsu ASYG09LLCA [17/25] Indoor unit fan](/views2/1806472/page17/bg11.png)
22
24
21
23

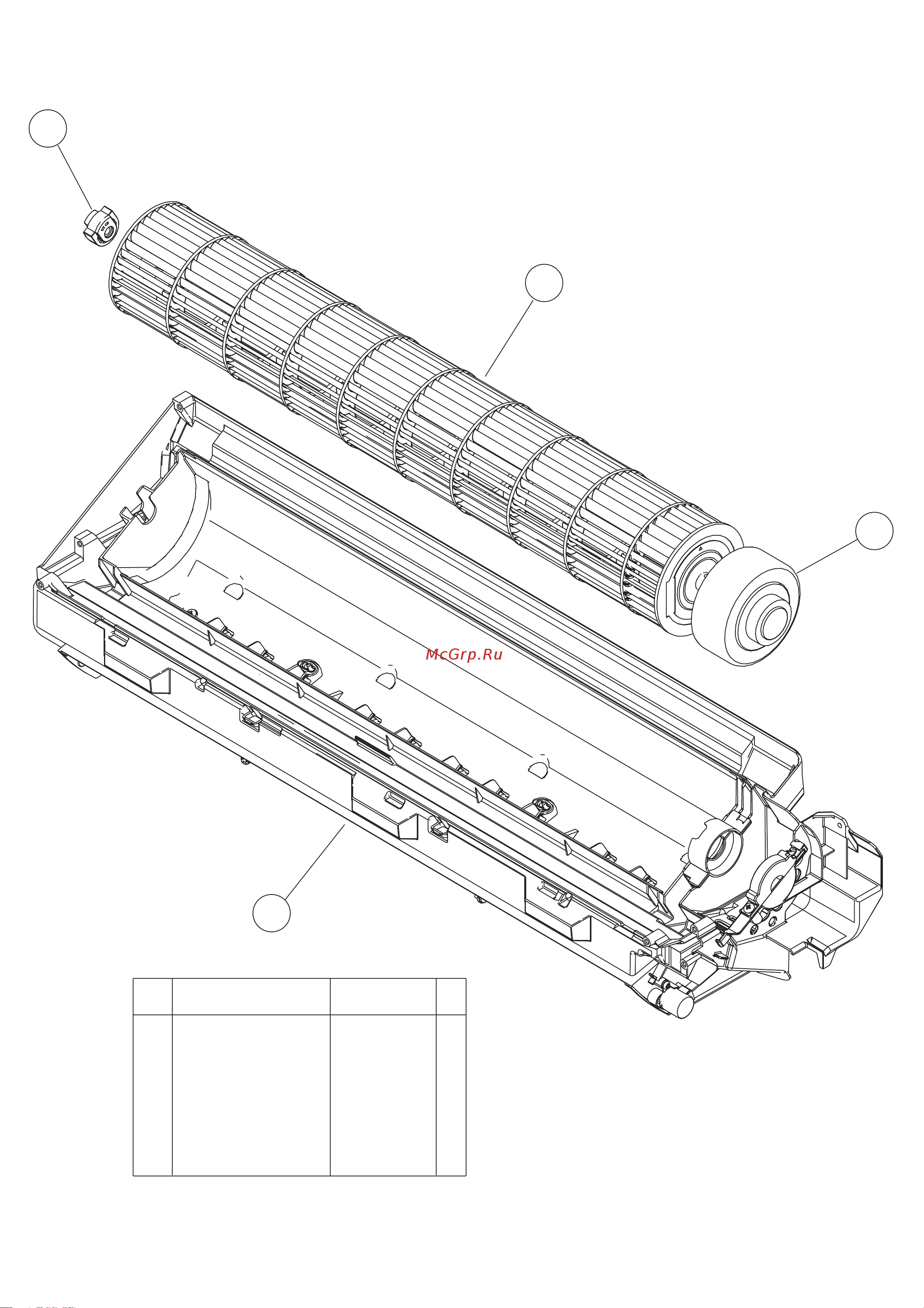

INDOOR UNIT
Fan
16
Fan Motor 9603180003
Crossflow Fan Assy 9316830004
Bearing C Assy 9306628017
24
21
Casing Assy 9332613018
22
23
Ref. Description Part number
2011.12.07
