General-Fujitsu ASYG09LLCA [18/25] Indoor unit casing assy
![General-Fujitsu ASYG09LLCA [18/25] Indoor unit casing assy](/views2/1806472/page18/bg12.png)
40
38
32
33
35
39
31
34
37
36

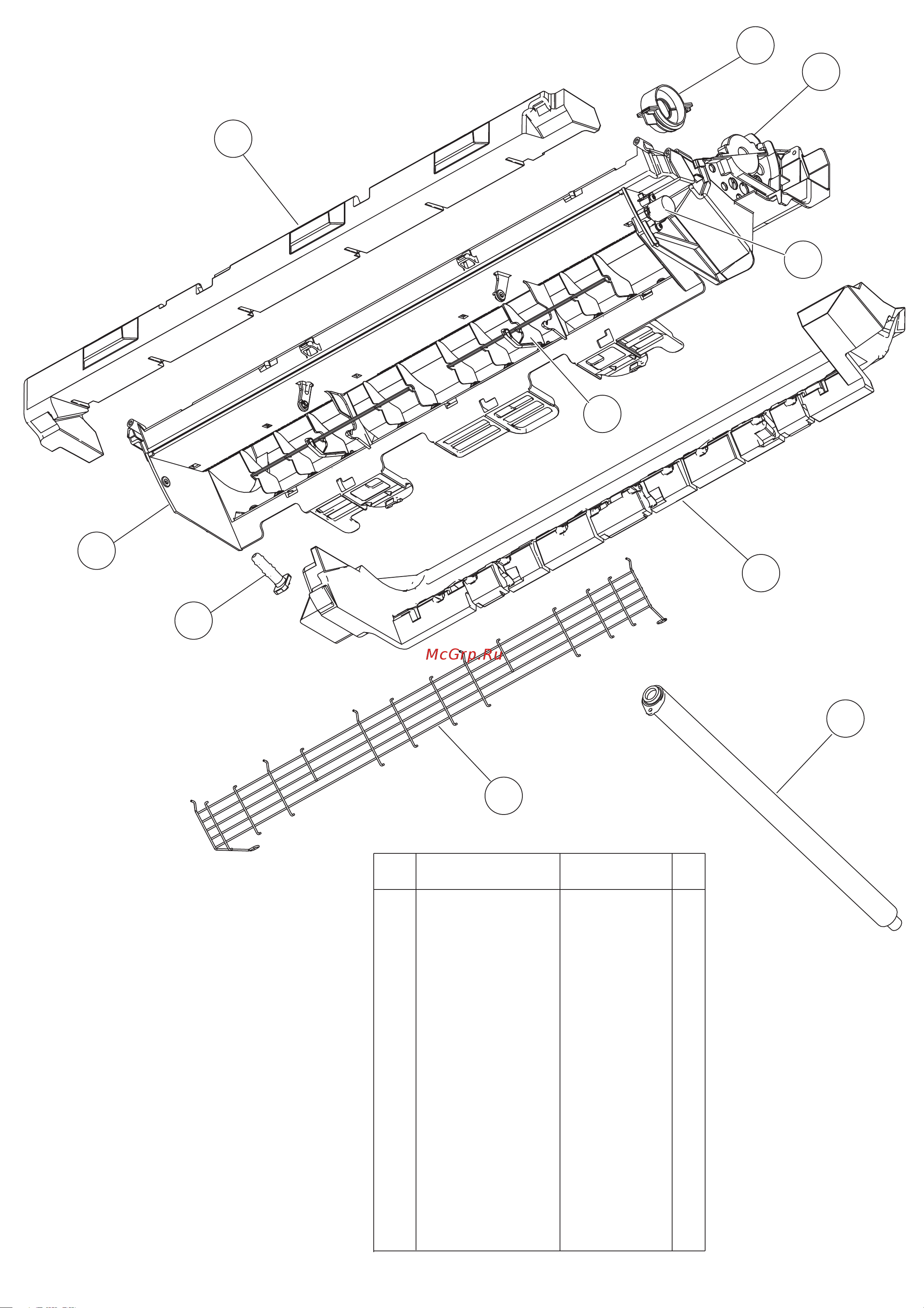

INDOOR UNIT
Casing assy
17
Fan Guard 9332551006
39
40
Step Motor 9900725006
36
Drain Hose Assy 9316904002
37
Drain Cap 9316177017
31
Casing Cover B 9332557008
32
Casing Cover F 9332558005
33
R and L Louver 9332535006
Casing 9332534009
Motor Cover 9316601000
Motor Cover 9316568006
38
34
35
Ref. Description Part number
2012.02.14
