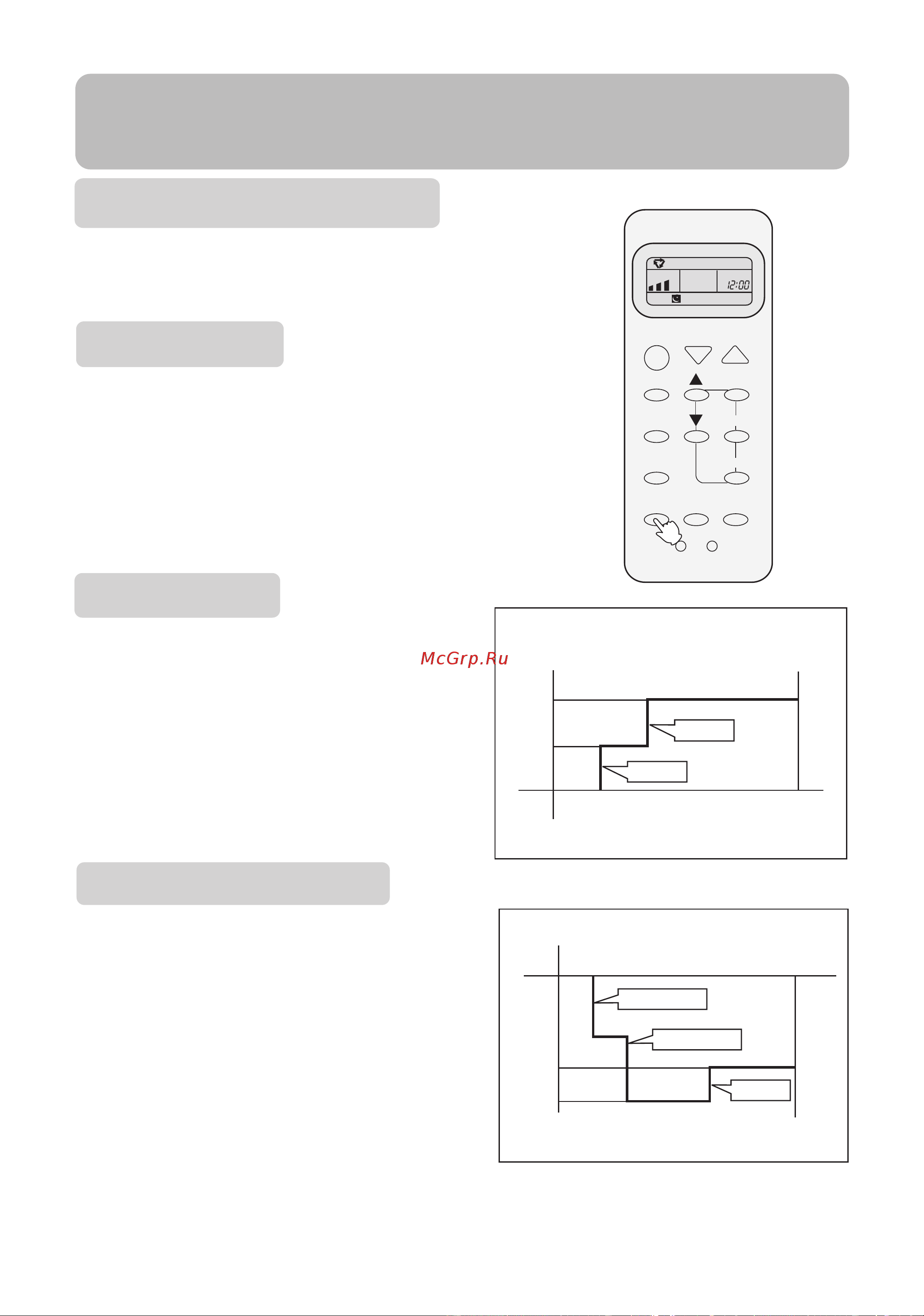

12
Comfortable SLEEP
Operation
In COOL mode
sleep in selected mode.
Before going to bed at night, you can simply press
the SLEEP button and unit will bring you a sound
One hour after SLEEP mode starts, temp. will
become 1
o
C higher than temp. setting. After
running for another 1 hour, temp. rises by 1
o
C
further. Unit will run for 6 hours then stops
automatically. Temp. is higher than temp.
setting so that room temp. won't be too low
for your sleep.(As shown in Fig.l)
In HEAT mode
(As shown in Fig .2)
One hour after SLEEP mode starts, temp. will
become 2
o
C lower than temp. setting. After
running for another 1 hour, temp. decreases
by 2
o
C further. Unit will run for 3 hours at this
temp. then increases another 1
o
C and stops
automatically 3 hours later. Temp. is lower
than temp. setting so that room temp. won't
be too high for your sleep.
Power Failure Resume Function
with the indicator lighting up.
If the unit is started for the first time, the
compressor will not start running unless 3
minutes have elapsed. When the power
resumes after power failure, the unit will run
automatically, the power indicator lights up, and
3 minutes later the compressor starts running
Note:
In AUTO mode, unit will run in SLEEP
function according to operation mode.
In FAN mode, comfortable sleep is not
available.
SLEEP operation starts SLEEP operation stops
Approx. 6 hrs
1 hr
1 hr
Rises 1
o
C
Rises 1
o
C
Temp. setting Unit stop
Temp. setting Unit stop
decreases 2
o
C
decreases 2
o
C
Approx. 3 hrs
1 hr
1 hr
Rises 1
o
C
3 hrs
SLEEP mode starts SLEEP mode stops
Fig.1
Fig.2
ON/OFF TEMP
SET
TIMER
CLOCKSWING
SLEEP
LOCK RESET
FAN
MODE
