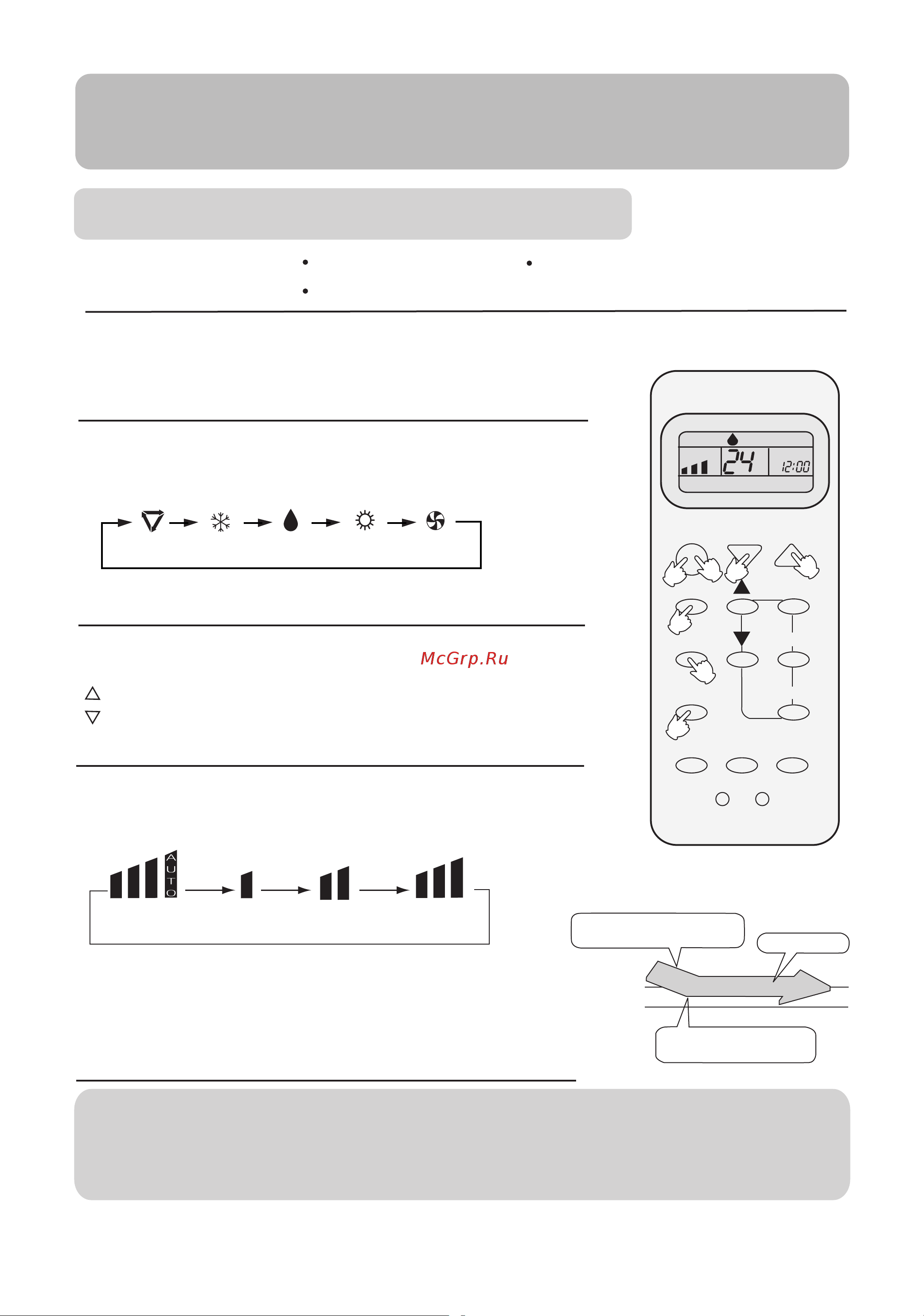

Haier HSU-09H03/Z1 [9/17] Operation
![Haier HSU-09H03/Z1 [9/17] Operation](/views2/1806499/page9/bg9.png)
Press MODE button. For each press, operation
Recommendations:
7
Operation
COOL,HEAT and DRY operation
Use COOL in summer. Use HEAT in winter
Use DRY in spring, autumn and in damp climate.
(1) Unit start
mode changes as follows:
Press ON/OFF button, unit starts.
Previous operation status appears on display.(Not Timer setting)
Power indicator on indoor unit lights up.
(2) Select operation mode
AUTO COOL DRY HEAT FAN
Unit will run in operation mode displayed on LCD.
Stop display at your desired mode.
(3) Select temp. setting
Press TEMR button.
Every time the button is pressed, temp. setting increases 1
o
C
Every time the button is pressed, temp. setting decreases 1
o
C
Unit will start running to reach the temp. setting on LCD.
Press FAN button. For each press, fan speed changes
(4) Fan speed selection
as follows:
AUTO LO MED HI
just press ON/OFF button and unit will run in previous status.
Unit runs at the speed displayed on LCD.
In DRY mode, when room temp. becomes 2
o
C higher than
temp. setting, unit will run intermittently at LO speed
regardless of FAN setting.
Hints
On cooling only unit, heating mode is not available.
Remote controller can memorize each operation status. When starting it next time,
COOL operation starts when room
temp. is higher than temp. setting.
Ultra-low air flow
Temp. setting+2
o
C
Temp. setting
On reaching temp. setting, unit
will run in mild DRY mode.
ON/OFF TEMP
SET
TIMER
CLOCKSWING
SLEEP
LOCK
RESET
FAN
MODE
1
2
3
4
3
5
6
