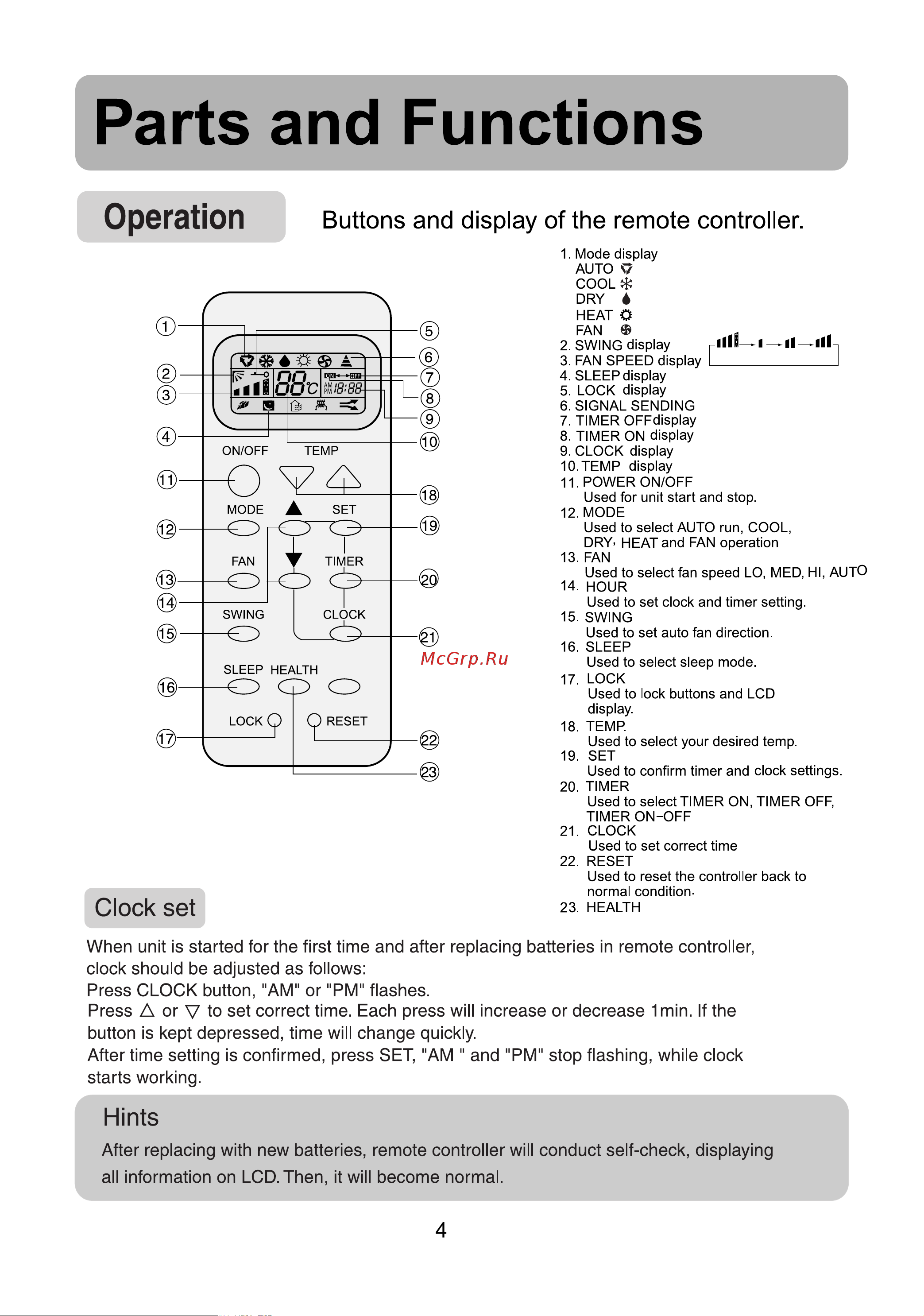

Parts and Functions Operation Buttons and display of the remote controller Note For some models without negative ion function don t have the HEALTH button Clock set 1 Mode display AUTO 9 COOL DRY A HEAT O FAN alls 1 il ill 2 SWING display 3 FAN SPEED display I AUTO IO MED III 4 SLEEP display 5 LOCK display 6 SIGNAL SENDING 7 TIMER OFFdisplay 8 TIMER ON display 9 CLOCK display 10 TEMP display 11 POWER ON OFF Used for unit start and stop 12 MODE Used to select AUTO run COOL DRY HEAT and FAN operation 13 FAN Used to select fan speed LO MED HI AUTO 14 HOUR Used to set clock and timer setting 15 SWING Used to set auto fan direction 16 SLEEP Used to select sleep mode 17 LOCK Used to lock buttons and LCD display 18 TEMP Used to select your desired temp 19 SET Used to confirm timer and clock settings 20 TIMER Used to select TIMER ON TIMER OFF TIMER ON OFF 21 CLOCK Used to set correct time 22 RESET Used to reset the controller back to normal condition23 HEALTH When unit is started for the first time and after replacing batteries in remote controller clock should be adjusted as follows Press CLOCK button AM or PM flashes Press or V to set correct time Each press will increase or decrease 1 min If the button is kept depressed time will change quickly After time setting is confirmed press SET AM and PM stop flashing while clock starts working Hints After replacing with new batteries remote controller will conduct self check displaying all information on LCD Then it will become normal 4
