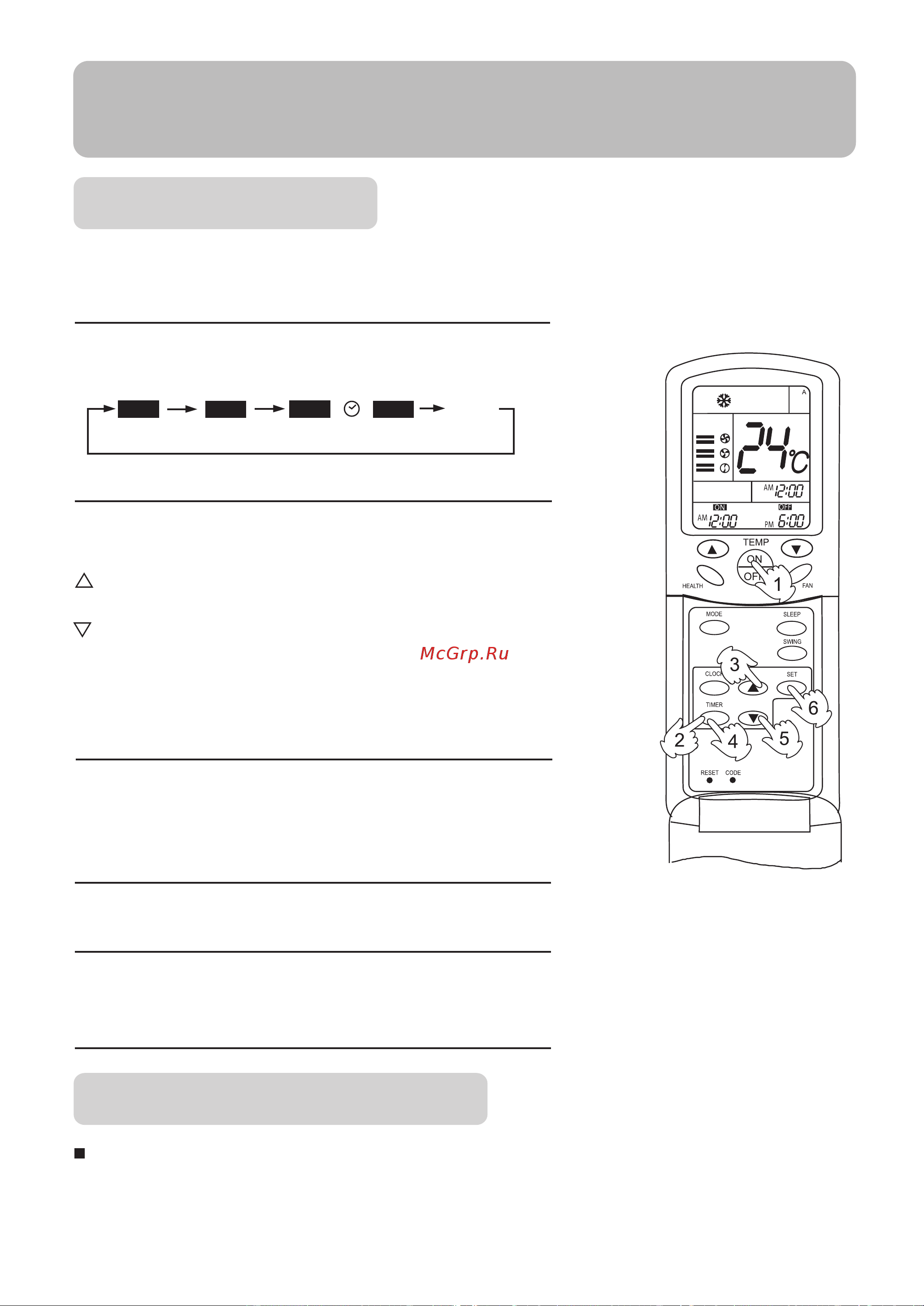

Haier H2SM-14HC03/R2 [13/20] Operation
![Haier H2SM-14HC03/R2 [13/20] Operation](/views2/1806594/page13/bgd.png)
12
TIMER ON-OFF
TIMER ON-OFF
To cancel TIMER mode
Power indicator on indoor unit lights up.
(1)After unit start, select your desired operation mode.
Operation mode will be displayed on LCD.
ON OFF ON OFF
TIMER ONTIMER OFFTIMER ON-OFF
blank
Every time the button is pressed, display changes as follows:
(2) Press TIMER button to change TIMER mode.
Select TIMER ON-OFF. "ON" will flash.
(3)Time setting for TIMER ON
If button is kept depressed, time will change quickly.
Every time the button is pressed, time decreases 10 min.
If button is kept depressed, time will change quickly.
Every time the button is pressed, time increases 10 min.
It can be adjusted within 24 hours.
Time will be shown on LCD.
AM refers to morning and PM to afternoon
Press HOUR button.
(4) Time confirming for TIMER ON
After time setting, press TIMER button to confirm.
"ON" stops blinking, While "OFF" starts blinking.
Time displayed: Unit starts at x hour x min.
(5)Time setting for TIMER OFF
Follow the same procedures in "Time setting for TIMER ON".
(6) Time confirming for TIMER OFF
After time setting, press SET button to confirm, "OFF" stops flashing
Time displayed: Unit stops at X hour X min.
Just press TIMER button several times until TIMER mode disappears.
