Haier H2SM-14HC03/R2 [6/20] Parts and functions

5

Hints

After replacing with new batteries, remote controller will conduct self-check, displaying

all information on LCD. Then, it will become normal.

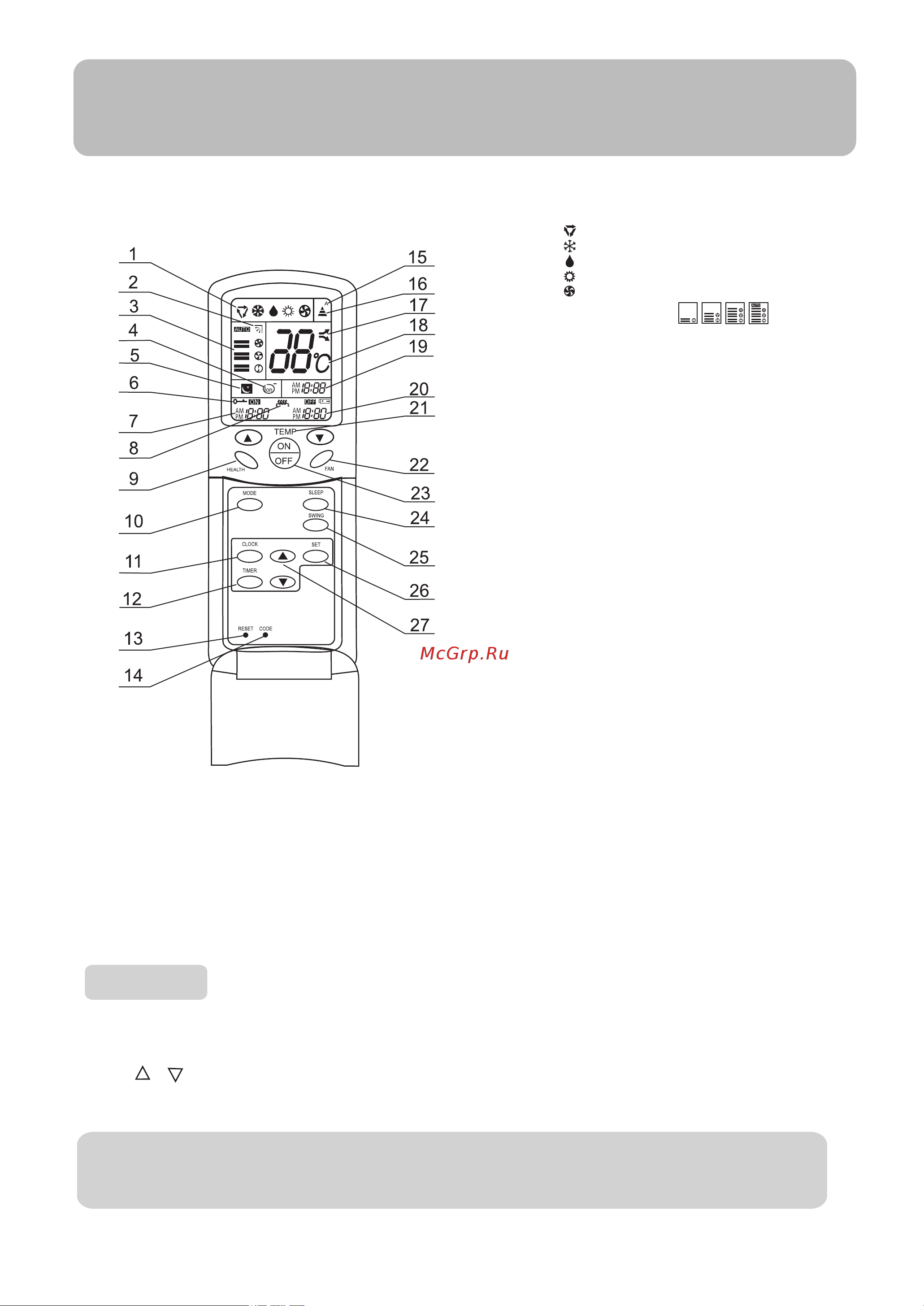

Buttons and display of the remote controller.

Parts and Functions

1.Mode display

AUTO

COOL

5. SLEEP display

6. LOCK display

7. TIMER ON display

8. AUXILIARY HEAT display

9. HEALTH

10. MODE

Used to select AUTO,COOL

and FAN

11. CLOCK

Used to set correct time

Used to select code A or B with a press,A

or B will be displayed on LCD.please

select A without special explanation

15. CODE display

16. SIGNAL SENDING display

17. POWER/SOFT display

18. TEMP. display

19. CLOCK display

20. TIMER OFF display

21. TEMP

Used to select sleep mode

LOW MED HI AUTO

25. SWING

26. SET

Used to confirm timer and clock settings

27. HOUR

Used to set clock and timer settings

NOTE:(1)The following functions and related displays are not available: AUXILIARY HEAT display, POWER/SOFT display, LOCK display.

(2)If the Air conditioner don't have the function of the code ,press code B can cause it not available.

(3)Cooling only unit do not have functions and displays related with heating.
