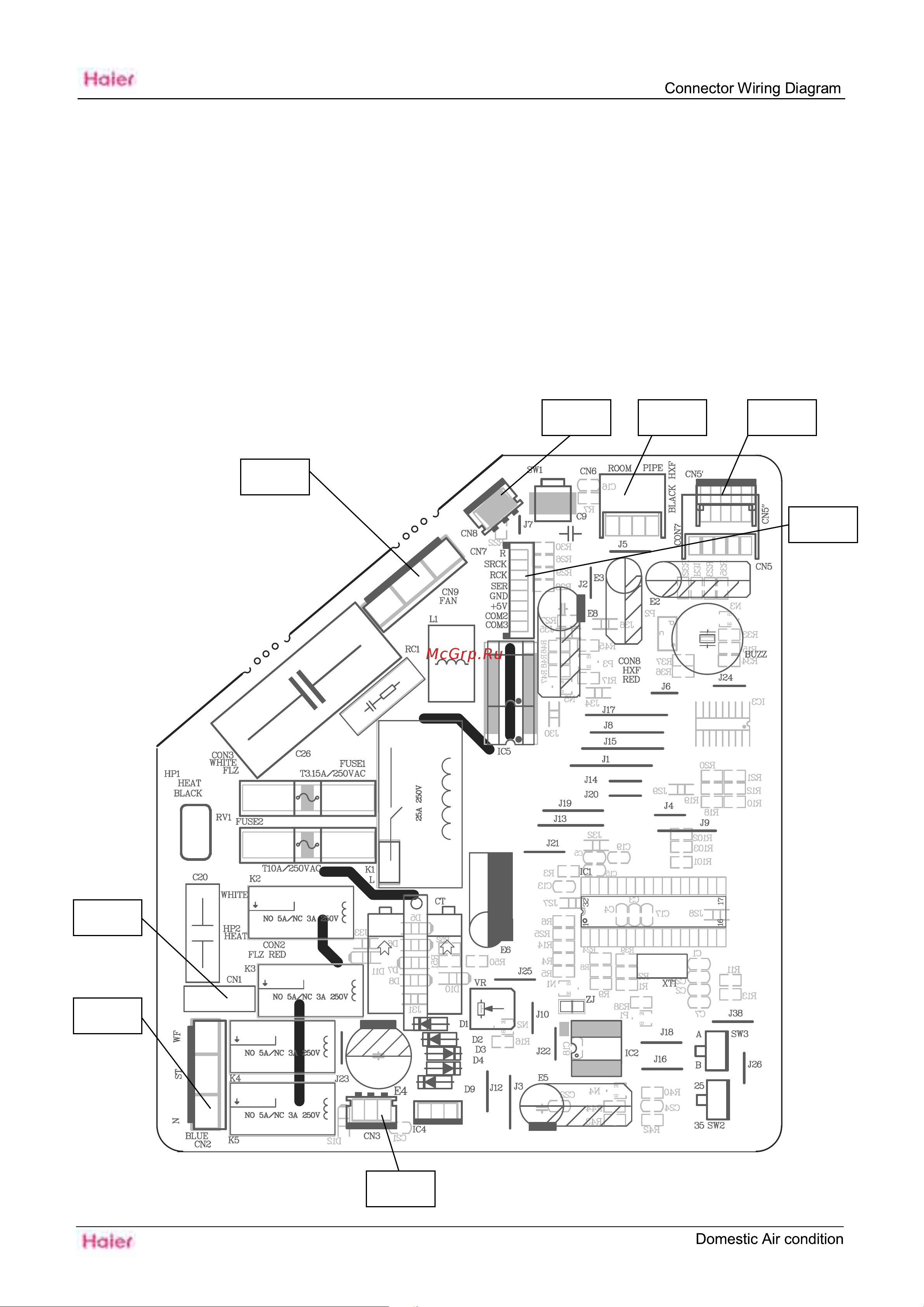

4.Printed Circuit Board Connector Wiring Diagram
4.1 Indoor unit
Connectors Indoor PCB
1)CN1 connector for transformer.
2)CN2 connector for power line N.
3)CN3 connector for transformer.
4)CN5” connector for up and down step motor.
5)CN6 connector for ambient temp. sensor and piping temp.sensor.
6)CN7 connector for receiver display.
7)CN8 connector for AC fan feedback motor.
8)CN9 connector for AC fan motor.
CN8
CN9
CN1
CN2
CN3
CN6 CN5”
CN7
HSU-07 09 12L HEK03
15
