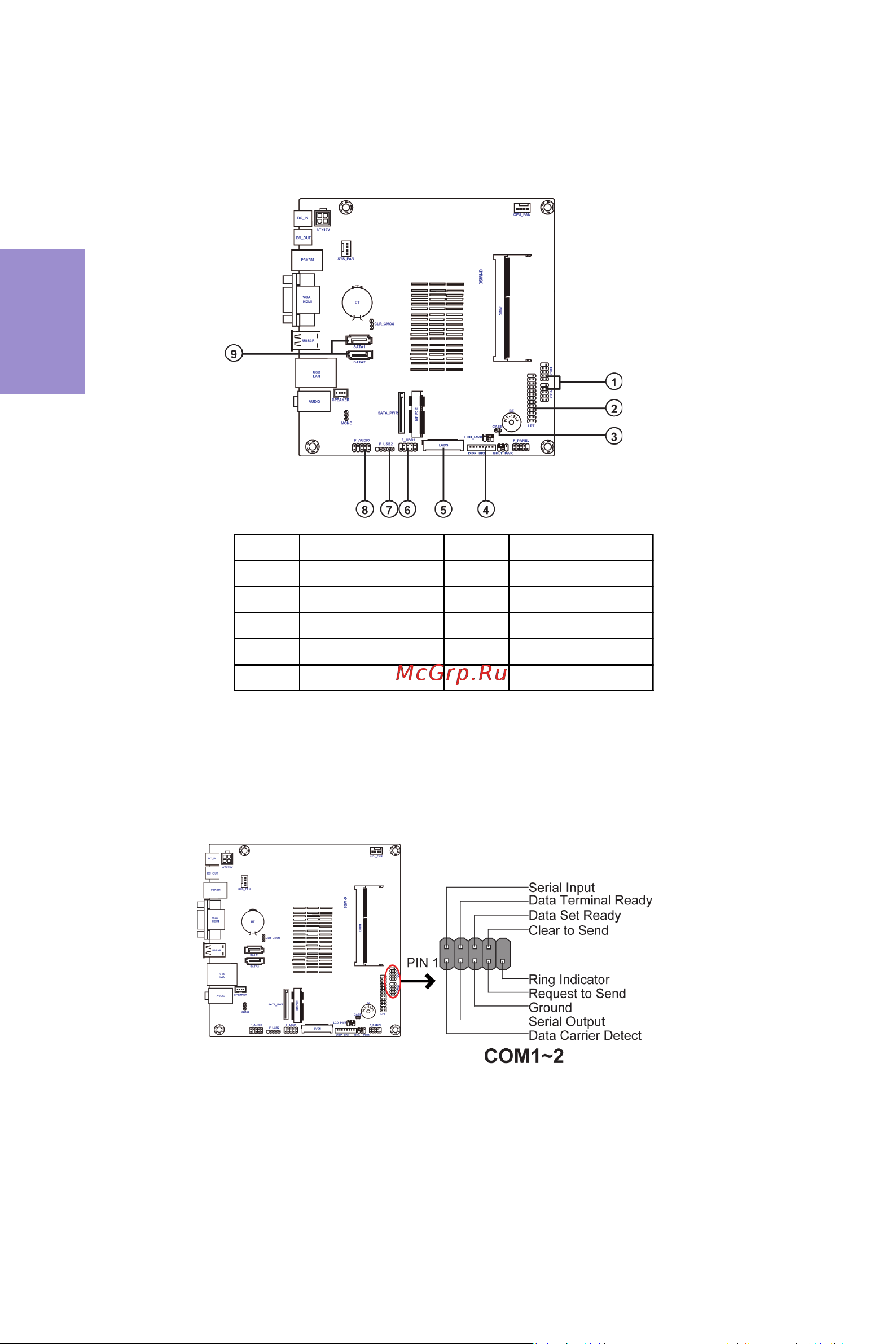

BSWI-D USER MANUAL

Chapter 2

2-4-3. Connecting Optional Devices

Refer to the following for information on connecting the motherboard’s optional

devices:

No. Components No. Components

1COM1~26 F_USB1

2LPT7F_USB2

3 CASE 8 F_AUDIO

4 DISP_BRT (optional) 9 SATA_1~2

5 LVDS (optional) ~ ~

1. COM1~2: Onboard Serial Port Headers

Connect serial port extension brackets to these headers to add serial ports to your

system.
