Chapter 1
6
BAT-I2 USER MANUAL

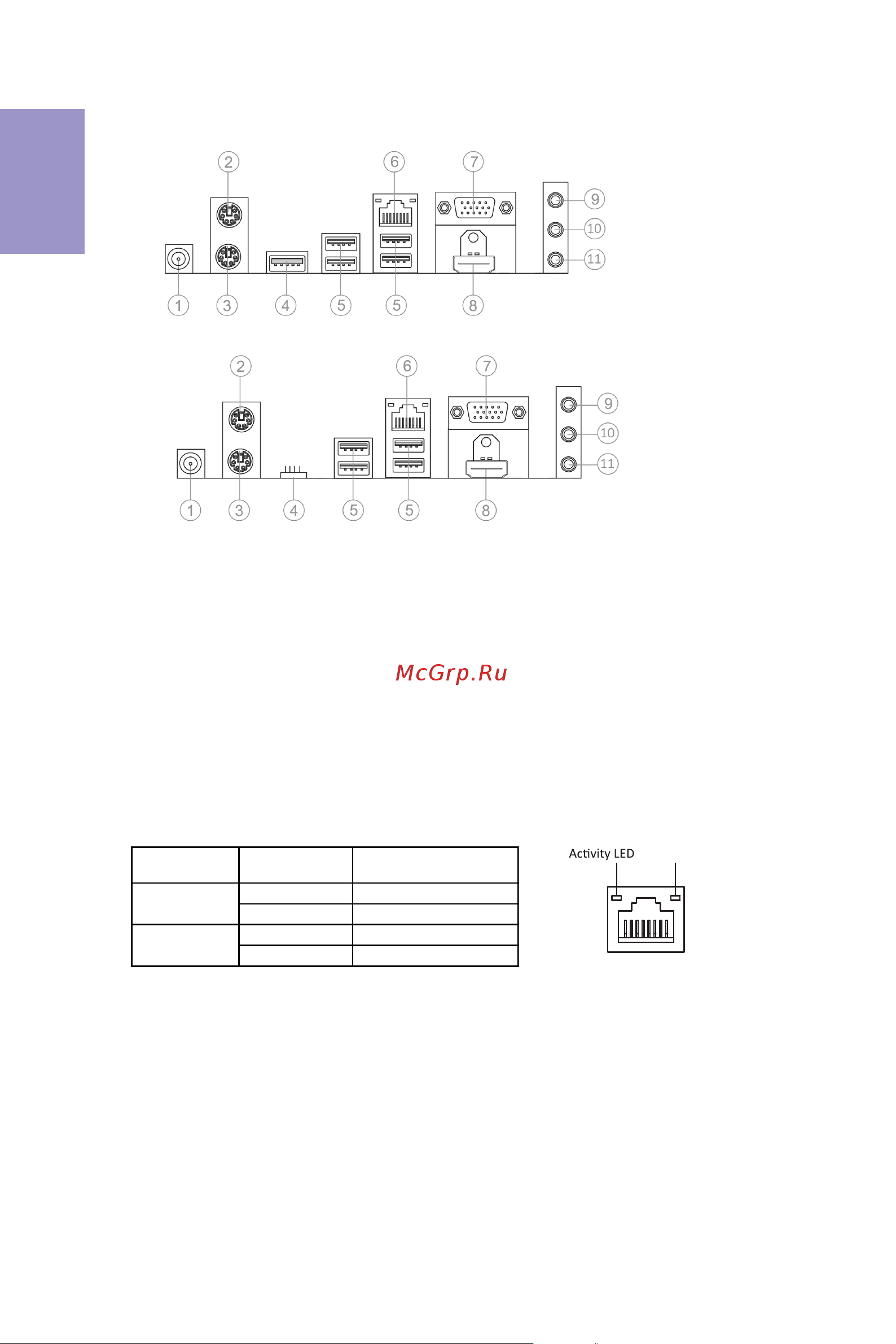

I/O Ports
2. PS/2 Mouse (green)
Use the upper PS/2 port to connect a PS/2 mouse.
LAN LED Status Description
OFF No da ta
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port
3. PS/2 Keyboard (purple)
Use the lower PS/2 port to connect a PS/2 keyboard.
4. USB 3.0 Port (or one 5-pin USB 2.0 header supports one USB 2.0 port )
Use the USB 3.0/2.0 port to connect USB 3.0/2.0 device.
5. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
6. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
8. HDMI Port
You can connect the display device to the HDMI port.
7. VGA Port
Connect your monitor to the VGA port.
9. Line-in (blue)
It can be connected to an external CD/DVD player, Tape player or other audio
devices for audio input.
10. Line-out (lime)
It is used to connect to speakers or headphones.
11. Microphone (pink)
It is used to connect to a microphone.
1. DC_IN Port (optional)
Connect the DC_IN port to the power adapter.
or
