20

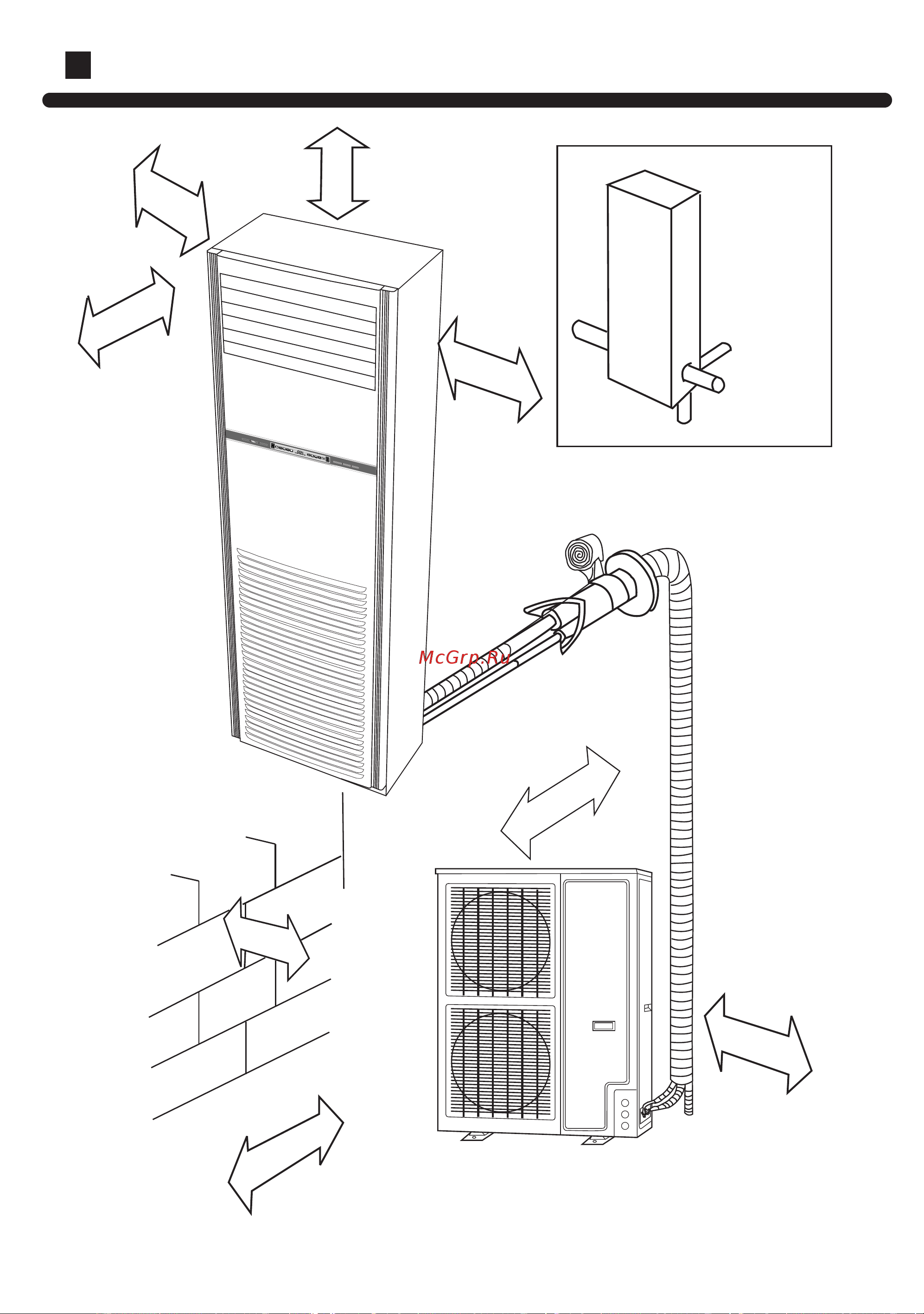

Indoor & outdoor unit connection
ON/OFF
MODE
FAN
TEMP+
TEMP-
HEALTH
pipe direction
Over 10cm
Over 10cm
Over 10cm
Over 10cm
Over 10cm
Over 15cm
Over 100cm
Over 60cm
Right
Left
Rear
Bottom
SET
HUMI
TEMP
HEALTH
TIMER
SLEEP
