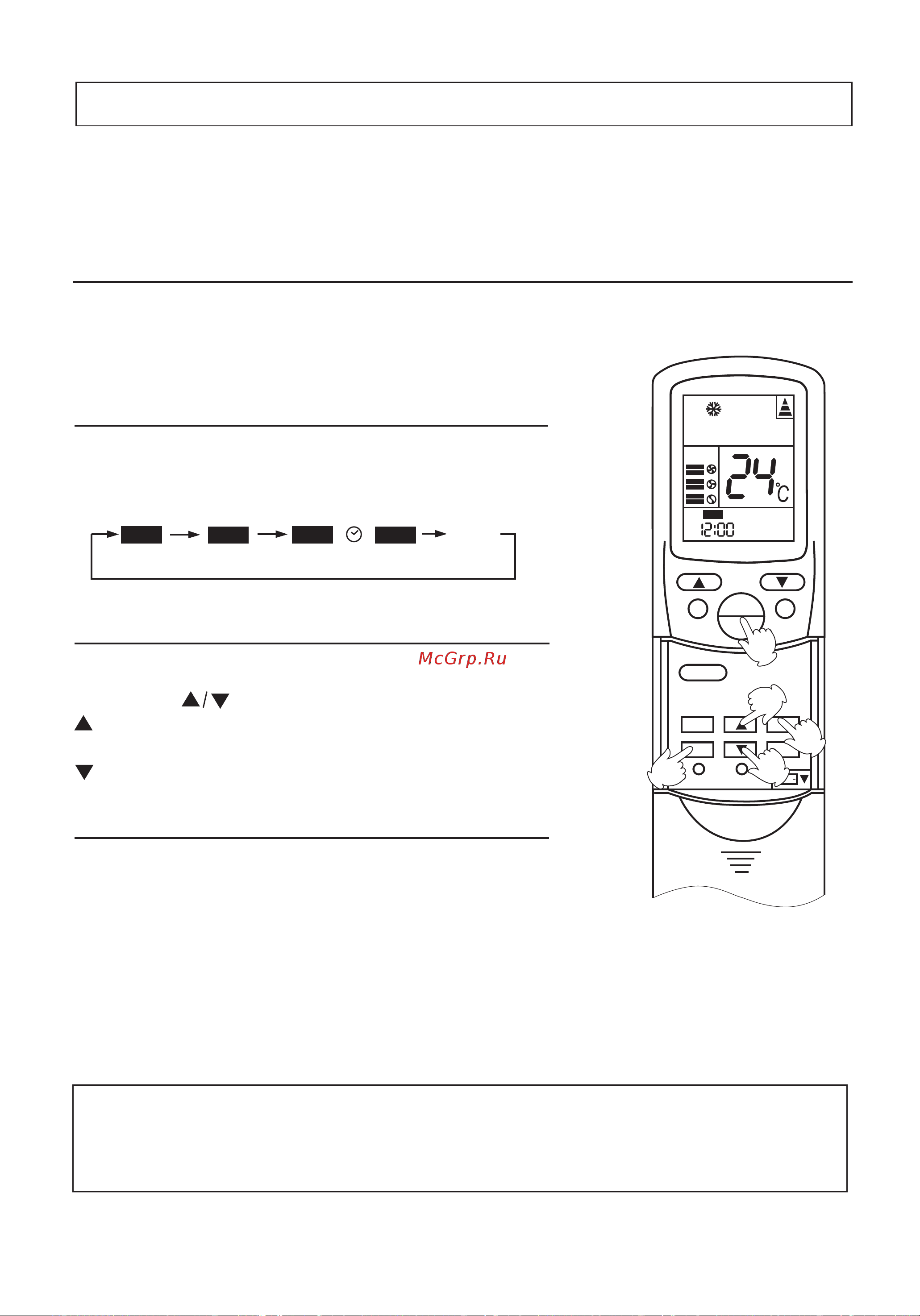

GUIDE TO OPERATION
11
TIMER operation
Hints
Set Clock correctly before starting Timer operation(refer to page 6)
You can let unit start or stop automatically at following times: Before you wake up in the
morning, or get back from outside or after you fall asleep at night.
TIMER ON/OFF
(1)After unit start, select your desired operation mode.
Operation mode will be displayed on LCD.
Power indicator on indoor unit lights up.
(2)TIMER mode selection
Press TIMER button to change TIMER mode.
Every time the button is pressed, display changes as follows:
Select your desired TIMER mode (TIMER ON or TIMER
OFF) ON or OFF will flash.
(3)Timer setting
Press HOUR button.
Every time the button is pressed, time increases 10min.
If button is kept depressed, time will change quickly.
Every time the button is pressed, time decreases 10min.
If button is kept depressed, time will change quickly. Time
will be shown on LCD. It can be adjusted within 24hours.
(4)Confirming your setting
After setting correct time, press SET button to confirm "ON"
or "OFF" stops flashing
Time displayed: Unit starts or stops at x hour x min (TIMER
ON or TIMER OFF).
Timer mode indicator on indoor unit lights up.
To cancel TIMER mode
Just press TIMER button several times until TIMER mode disappears.
After replacing batteries or a power failure happens, Time setting should be reset.
Remote controller possesses memory function, when use TIMER mode next time, just
press SET button after mode selecting if timer setting is the same as previous one.
ON
OFF
ON
OFF
blank
TIMER OFFTIMER ON TIMER ON-OFF
TEMP
SWING
FAN
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
LOCK RESET
ON
AM
2
1
4
3
3
