AUTO COOL DRY FAN HEAT
Used for the display panel to choose displaying the actual
temperature or the actual humidity at present.
About temperature/humidity display key:
1.under the constant temperature dehumidification mode, for the first time to enter, then the remote controller displays the set
temperature, the display panel displays the actual temperature, press this key, the temperature /humidity won’t alternate. After
adjusting the set temperature, press this key again, the remote controller will display the set temperature or the set humidity,
and the display will display the actual temperature or the actual humidity at the same time.
2.Under the other modes, press this key, the display panel will display the actual humidity at present for a certain time, then the
actual humidity will automatically switch back to display temperature. The display of the remote controller won’t change.
36

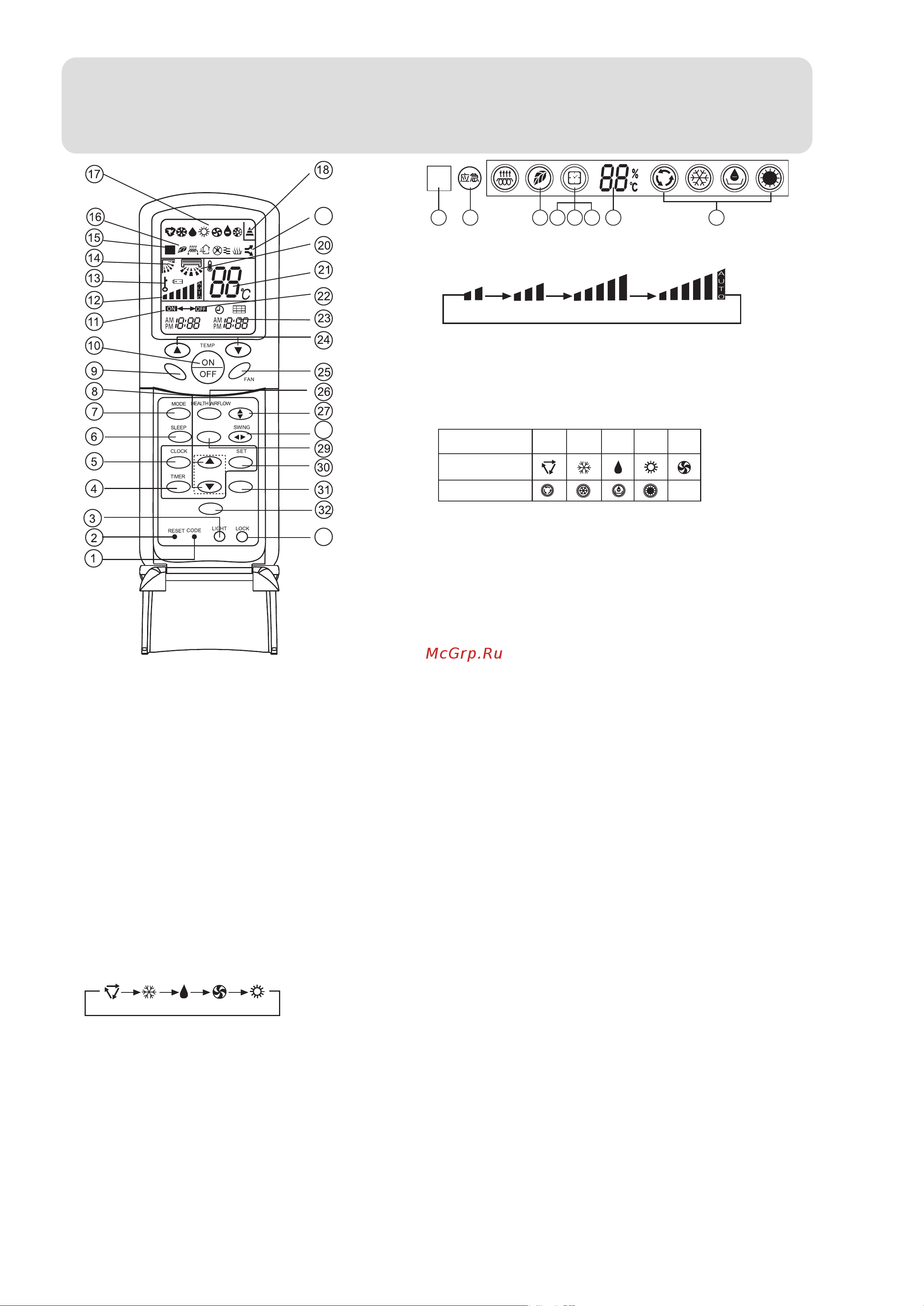

Parts and Functions
Used for unit start and stop.
10. ON/OFF button
11. TIMER ON display
12. FAN SPEED display
LOW HI
MED AUTO
13. LOCK display
14. SWING UP/DOWN display
15. SLEEP display
16. HEALTH display
Used to select your desired temperature.
17. Operation mode display
19. POWER/SOFT display
20. Left/right air flow display
Remote controller: to display the TEMP. setting.
21. TEMP display
22. TIMER OFF display
23. CLOCK display
24. TEMP button
Used to select fan speed: LOW,MED, HI, AUTO.
25. FAN button
Used to set the health airflow mode.
26. HEALTH AIRFLOW button
27. SWING UP/DOWN button
Used to select up or down air sending direction.
28. SWING LEFT/RIGHT button
Used to select left/right air flow.
29.
FRESH
button
Used to confirm timer and clock settings.
30. SET button
31. POWER/SOFT button
Use to set fresh air function.
Used to select CODE A or B with a press,A or B
will be displayed on LCD.
Please select A without special explanation.
1.CODE
When the remote controller appears abnormal,
use a sharp pointed article to press this button
to reset the remote controller normal.
2.RESET
Used to select TIMER ON, TIMER OFF,
TIMER ON-OFF.
4. TIMER button
Used to set correct time.
5. CLOCK button
Used to select sleep mode.
6. SLEEP button
7. MODE button
Used for adjusting humidity or clock time and timed
time.
8.
HUMIDITY
34. Emergency operation button(touch key)
Used to set emergency operation and test operation.
Used to set air ionization purify and healthy function.
9. Purify button
Operation mode
AUTO HEAT FANCOOL DRY
Remote controller
Display board
32.
TEMP./HUMIDITY DISPLAY
button
Used to lock buttons and LCD display. If pressed, the
other buttons will be disabled and the lock condition
display appears. Press it once again, lock will be
canceled and lock condition display disappears.
33. LOCK
35. Ambient temp.display
36.
Remote signal receiver
Used to set power/soft function.
18.Singal sending display
3.LIGHT button
Control the lightening and extinguishing of
the indoor LED display board.
POWER/SOFT
TEMP./HUMIDITY DISPLAY
33
HUMIDITY
FRESH
28
19
PURIFY
When receiving the remote control signal, display the set
temperature and in the rest time the room temperature is
displayed and this room temperature is only for reference.
