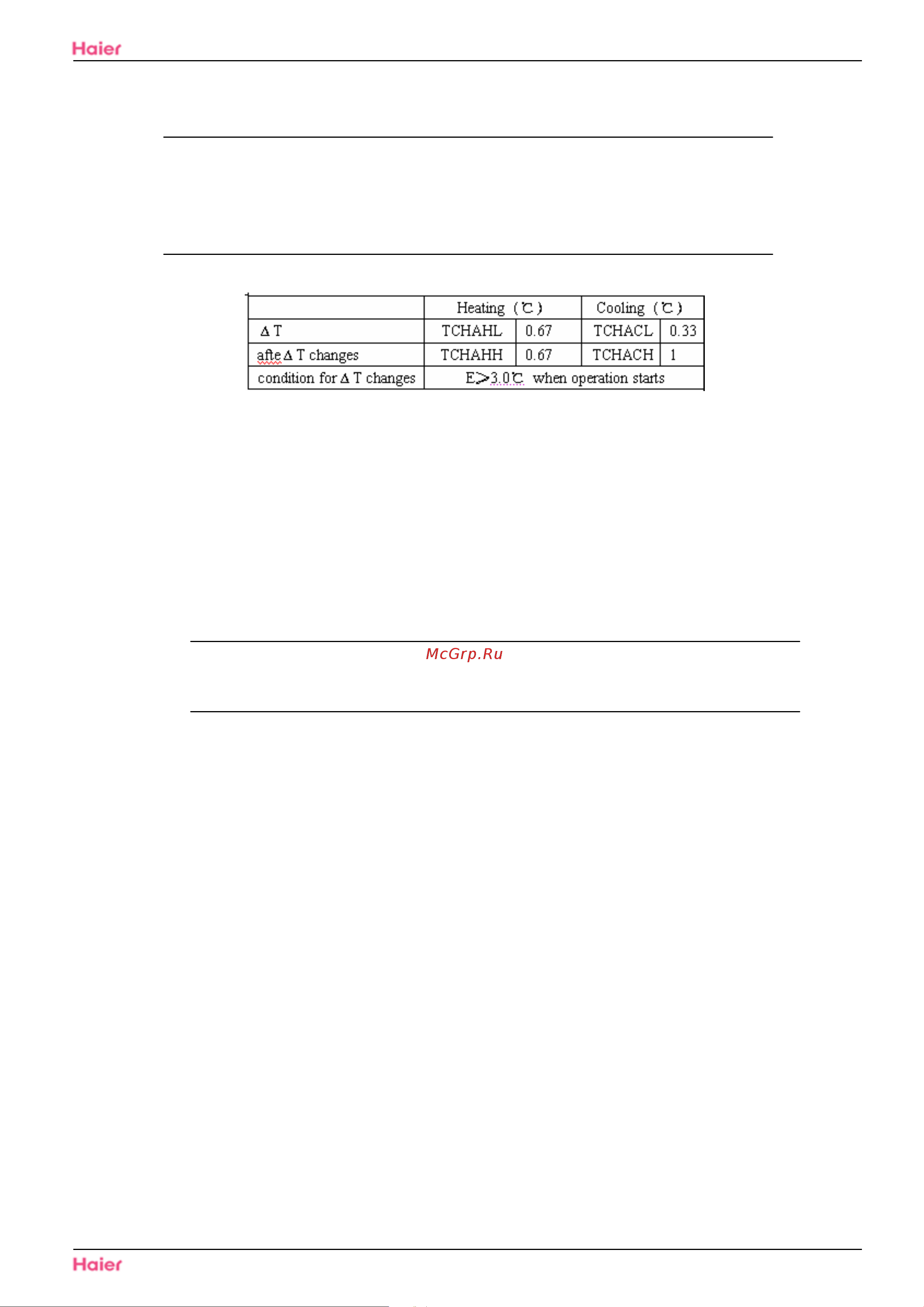

Deviation
Work out the deviation of temperature level as follows:
In heating mode: E=(Remote-control set temperature+ modified
value)-room temperature
In cooling mode: E= room temperature -(Remote-control set temperature +
modified value)
E is minus and |E|>T
Compressor The compressor stops after 120 seconds of continuous detection
Off When the operation starts,according to the table above, the unit will operate
according to the after-the-T-change parameters before the compressor
stops for the first time.
From the time the compressor stops to the time it starts again, the operation
will follow the T (except the moisture removing mode)
When the operation starts and the operation modes change (except when the
idle mode is over) and the deviation is bigger than –T, the compressor
starts.
When the compressor is working and the remote-controller set temperature
falls below –T, the compressor stops.
Compressor When the compressor is kept idle for 3 minutes, the deviation E will be
On higher than -ȏT+0.67ď and the compressor will start working.
When the operation starts or the operation mode changes (except when the
compressor is switched on after being off), the compressor is on and the
indicated maximum frequency should be as follows:
DASH Cooling deviation to zero
Operation Heating deviation to level F
There will be no DASH operation under trial operation, emergency
operation and silent operation modes.
Temperature adjusting of different levels. (DASH operation conditions
under different modes)
+6809,12H03/R(DB) Functions and control
Demastic Air Conditioners
14
