Sc&t HW01 [2/3] Cable cable

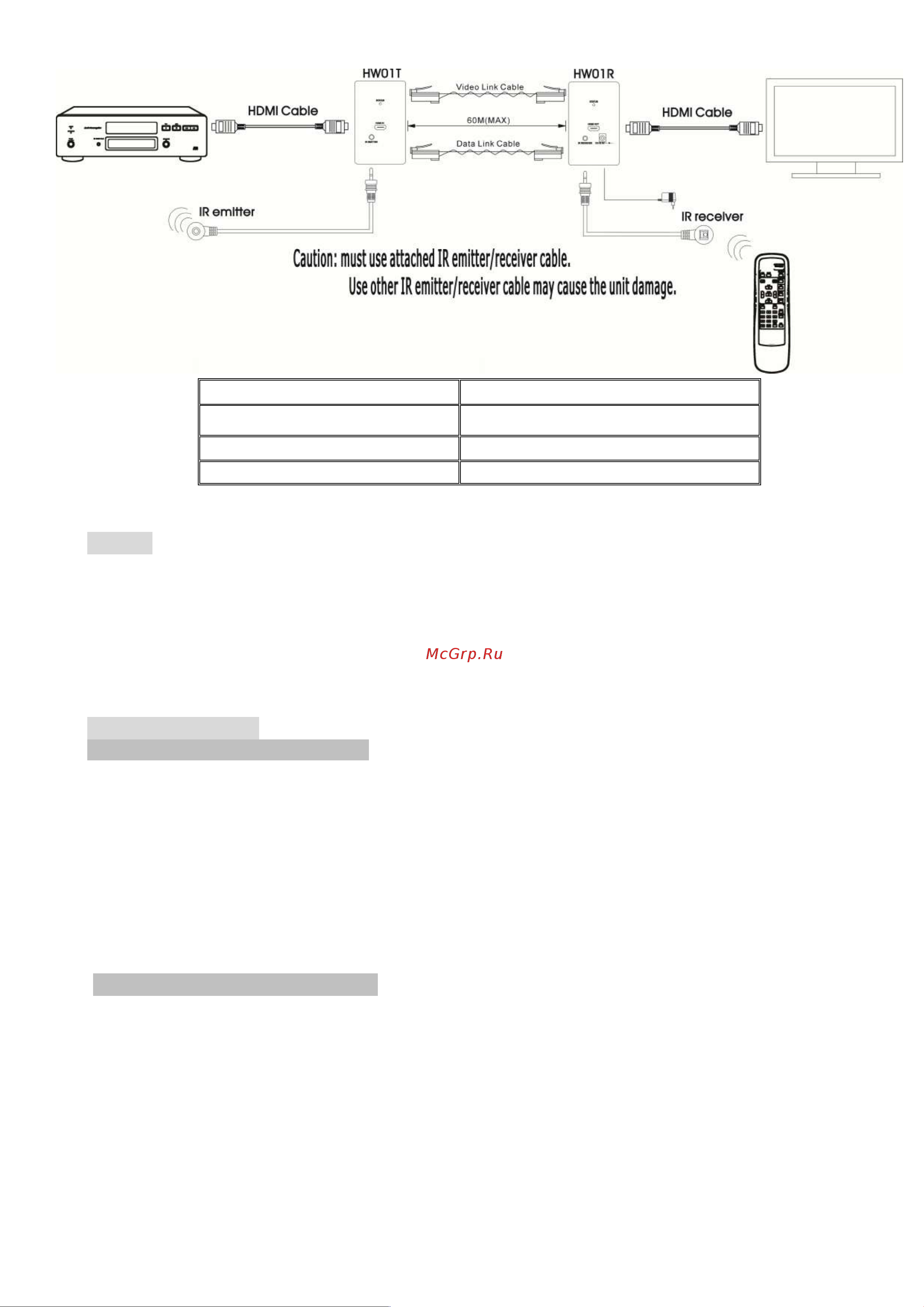

Installation view:

Cable:

Video Link cable using hi quality CAT5E UTP or CAT6 UTP cable,

CAT6 cable enhances transmission range and signal stability.

Data Link cable using CAT5E UTP/STP cable,

It is not hi speed signal transmission, so using regular CAT5E UTP cable will be ok.

RJ45 pin Define:

Video Link (TIA/EIA-568-B)

1. Orange-white TMDS Data2 +

2. Orange TMDS Data2 -

3. Green-white TMDS Clock +

4. Blue TMDS Data1 +

5. Blue-white TMDS Data1 -

6. Green TMDS Clock -

7. Brown-white TMDS Data0 +

8. Brown TMDS Data0 -

Data Link (TIA/EIA-568-B)

1. Orange-white CEC

2. Orange HPD

3. Green-white SCL

4. Blue HW01R POWER

5. Blue-white IR

6. Green GND

7. Brown-white SDA

8. Brown HW01T POWER

Resolution Transmission Range (Max.)

480i / 576i / 480p / 576p

60M

720p / 1080i 60M

1080p

50M
